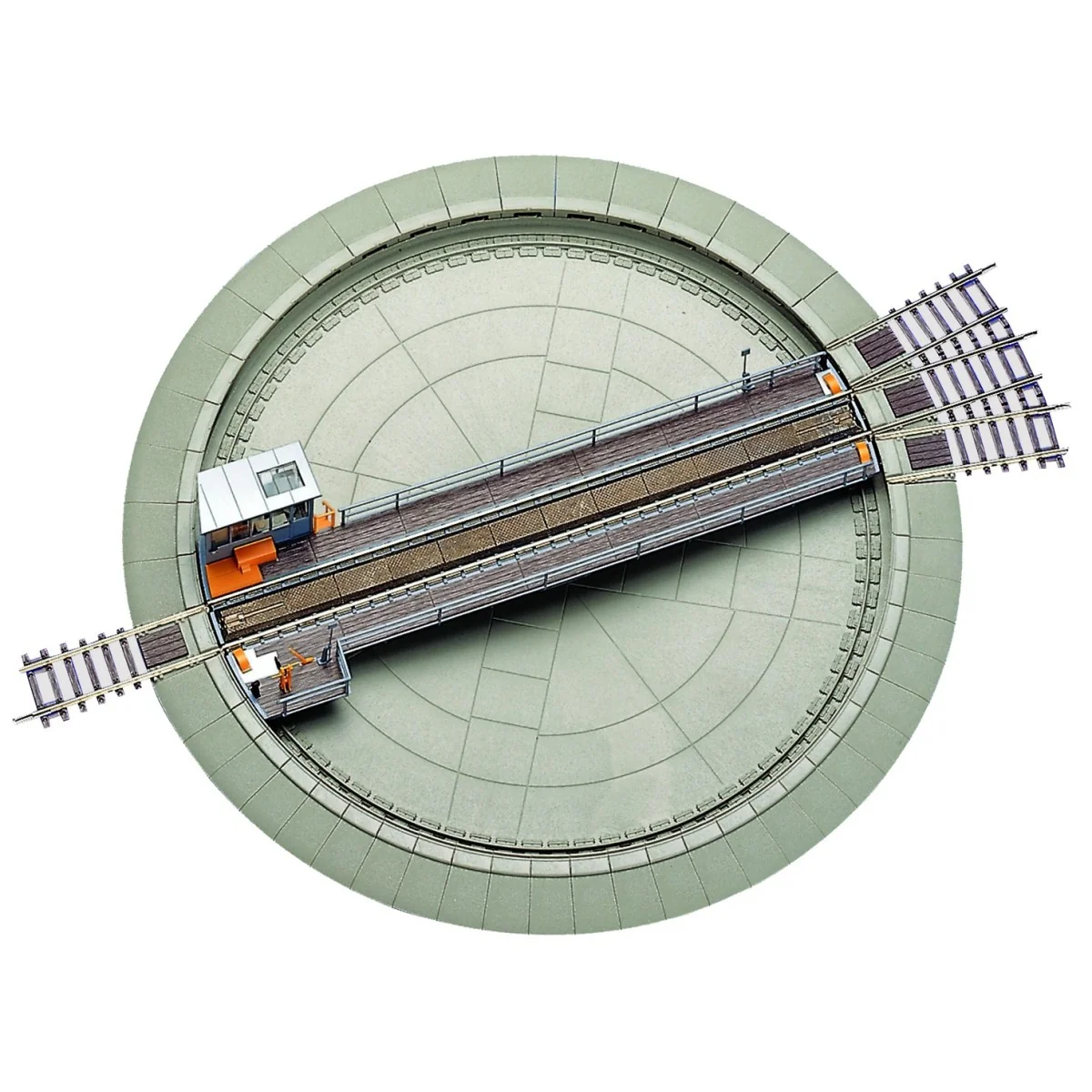

Roco 42615 Motorized Turntable

Turntable with integrated electric motor and control unit

Characteristic :

Brand: Roco
Ref: 42615
> Track code: 83 / 2.1 mm
Scale: HO
Operation: 2 and 3 rails

Rotating bridge with integrated electric motor and control device.

Suitable for all two-conductor DC tracks and for center-conductor AC tracks conforming to NEM (European model railway standards). Platform length of 253 mm, corresponding to 22 m on the original model.

The minimum angle between two track exits is 9 degrees. The turntable is supplied with spacers in divisions of 1°, 3°, 6°, and 9°. Therefore, any divisions from 9° upwards are possible in 1° increments between the track exits.

A total of 40 track exits can be set up. The turntable is supplied with four track exits for 2L=.

Other track exits are supplied as accessories (42616, contents: four 2L track exits =).

If the turntable is to be used on an AC network with a center conductor, the specialist seller will replace the original 2-track exit pack supplied with the turntable with a 3L~ track exit pack (42617, contents: three 3L~ track exits).

The platform motor operates on a 14V AC power supply. Power for operation is supplied via either direct current (DC) or alternating current (AC), depending on the system used. The turntable is equipped with a control unit for selecting the direction of travel and the rotation speed.

When the turntable button is released, the turntable stops precisely at the next track exit. Technically, the turntable is equipped for a preset control, allowing direct selection of the desired track exit. As with the original, two rotation speeds can be selected on the ROCO model. Power is supplied to the turntable. The power supply to the track exits can be adjusted using the control unit. This prevents the unintentional starting of a stationary locomotive when two track exits are opposite each other.*

A 1 m five-pole cable (transformer control unit) and a 2 m eight-pole cable (rotating bridge computer) are supplied.

Mounting dimensions:
Opening required for assembly: 280 mm.
Mounting depth measured from the top edge of the table: 50 mm.
Outer diameter of the turntable without track exits: 307 mm.

Platform length: 253 mm.
Suitable for all locomotives with a wheelbase up to 250 mm.

* When using the turntable in DCC (digital) drive mode, it is necessary to use a digital module for reversing loop.
