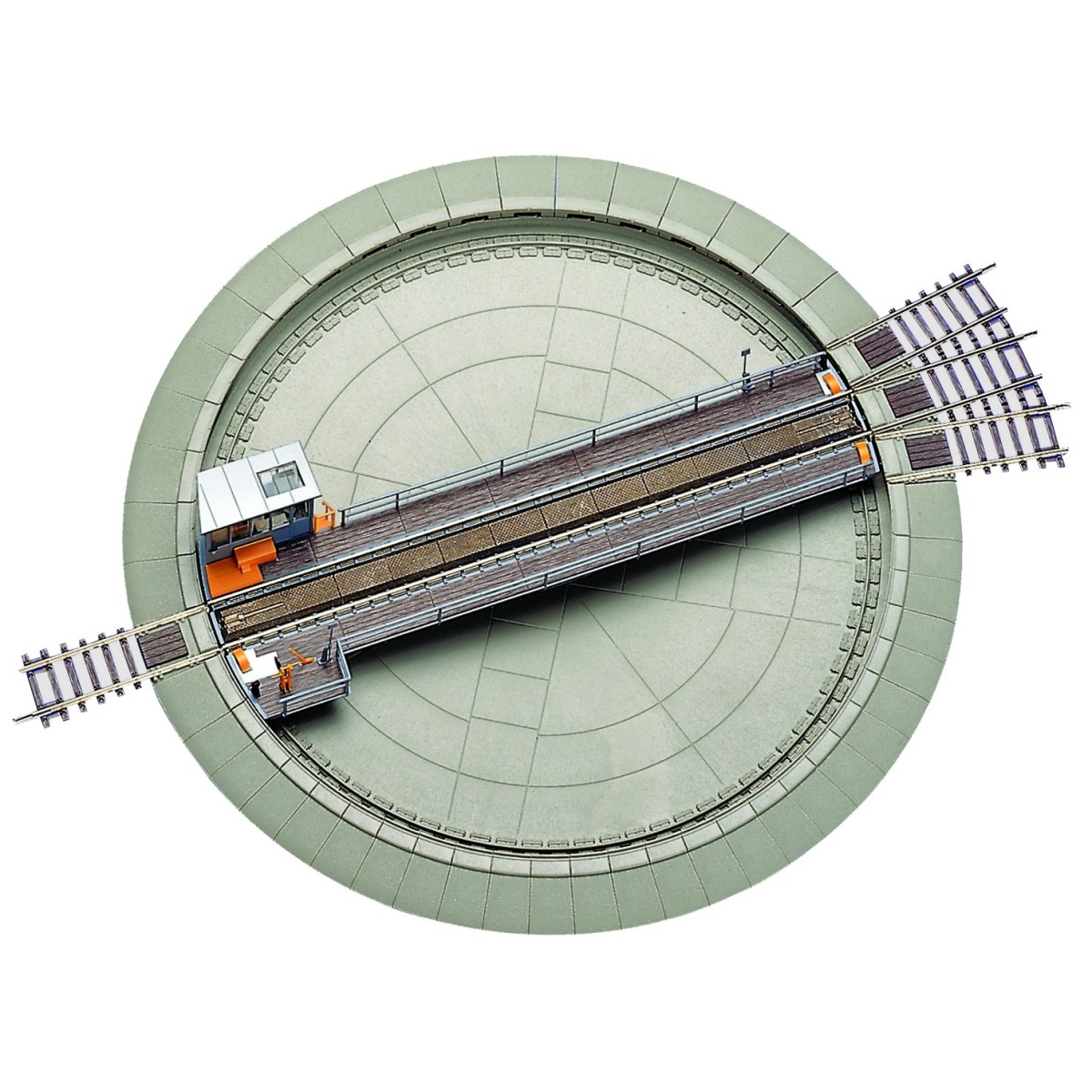

Roco 42615 Motorized Turntable

Turntable with integrated electric motor and control unit. Feature:
Brand: Roco
Ref: 42615
> Track code: 83 / 2.1 mm
Scale: HO
Operation: 2 and 3 rails. Additional features:
Control unit (supplied with)
> Control of the rotation of the turntable, right/left
> Switch V1/V2 for rotation speed
> Power supply and disconnection switch for tracks Description:
> Suitable for all two-conductor DC tracks and for central conductor AC tracks conforming to NEM (European model railway standards).
> Platform length of 253 mm, corresponding to 22 m on the original model.
The minimum angle between two track exits is 9°.
The turntable is supplied with spacers in divisions of 1°, 3°, 6° and 9°. Therefore, any divisions from 9° upwards are possible in increments of 1° between track exits.
> 40 track exits can be set up in total.
The turntable is supplied with 4 track outlets for a 2-rail system. Additional track outlets are available as accessories (42616, contents: 4 track outlets for a 2-rail system).
The platform's motor operates on a voltage of 14 Volts ~
> The voltage supply for the driving is done with direct or alternating current, depending on the system used.
The turntable is supplied with a control device allowing the direction of travel and rotation movement to be selected.
> When the turntable button is released, the turntable stops exactly at the exit of the next tracks.
From a technical point of view, the turntable is prepared for a pre-selection control allowing direct selection of the desired track exit.
As with the original, 2 rotation speeds can be selected on the Roco model.
The operating current is supplied to the rotating plate.
The power supply to the track outputs can be controlled using the control unit. This prevents the unintentional starting of a stationary locomotive when two track outputs are facing each other.
A 1 m, 5-pole cable (for the transformer control unit) and a 2 m, 8-pole cable (for the rotary bridge computer) are supplied. Mounting dimensions:
> Required opening: 280 mm
> Mounting depth measured from the top edge of the table: 50 mm
> Outer diameter of the turntable without the track outlets: 307 mm
Platform length: 253 mm
Suitable for all locomotives with a wheelbase up to: 250 mm
