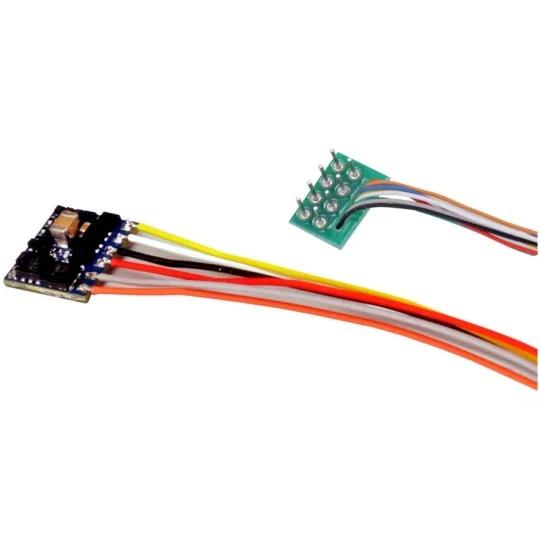

ESU 59110 Micro LockPilot V5 Function Decoder, DCC/MM/SX, 8-pin, NEM 652
€39.50
Tax included
By buying this product you can collect up to 39 points. Your cart will total 39 points that can be converted into a voucher of €0.78.
ESU LokPilot 5 Fx Micro function decoder ref. 59110, with 8-pin NEM 652 connector. Compatible with DCC / MM / SX, it has 6 function outputs and is suitable for vehicles not requiring motor control.
LokPilot 5 Fx Micro DCC/MM/SX
Brand: ESU
Ref: 59110
> Connector output: 8 pins - NEM 652
Protocol: DCC / MM / SX
Motor current: 180 mAh per output
> Exits: 6
> Dimensions: 8.0 x 7.0 x 2.9 mm
Function decoder. Cannot be used on a locomotive to control a motor.
The LokPilot 5 Fx micro and its twin, the LokPilot 5 Fx micro DCC, are extremely small function decoders, measuring only 8.0 mm x 7.0 mm and just 2.4 mm thick (2.9 mm at the capacitor). They are used in all N to H0 scale vehicles that do not require a motor output but still need to be able to switch lighting effects. LokPilot 5 Fx micro decoders are always offered with an 8-pin interface.
Modes:
The LokPilot 5 Fx DCC only communicates using the DCC protocol, but it can also automatically switch between RailComPlus® and RailComPlus® control stations. The LokPilot 5 Fx micro-decoder recognizes Märklin® braking distances as well as ZIMO® HLU/ZACK Commands or the Lenz® ABC system. It can also brake using DCC brake modules or a DC power supply. It can also stop using a Selectrix® brake diode. An automatic ABC shuttle train can shuttle between two stations. This is also important with a function decoder to synchronize the control cars and the motor vehicles. The LokPilot 5 Fx decoder can be used on analog DC railways. The decoder switches between operating modes fully automatically on the fly.
Features :
The LokPilot 5 Fx micro or LokPilot 5 Fx micro DCC is equipped with an impressive number of function outputs. There are six amplified function outputs, each with an output current of 180 mA, and two logic-level outputs for servos or Susi. The brightness of each output can be adjusted independently.
Operational security:
If necessary, a PowerPack can be connected to the LokPilot 5 Fx micro and the LokPilot 5 Fx micro DCC to fill in dirty rail sections.
Protection:
Of course, the outputs are protected against overload. We want you to enjoy your set-top box for as long as possible.
Esu_59110
Data sheet
- Ladder
- HO - 1/87
- Ladder
- N - 1/160
- Ladder
- HOe - 1/87 (9mm)
- System
- DCC - 2 Rail Digital
Specific References
- EAN13
- 4412345024973
