copy of Marklin 60832 M83 digital decoder, turnouts, signals... - Marklin_74491
€25.00
Tax included
By buying this product you can collect up to 25 points. Your cart will total 25 points that can be converted into a voucher of €0.50.

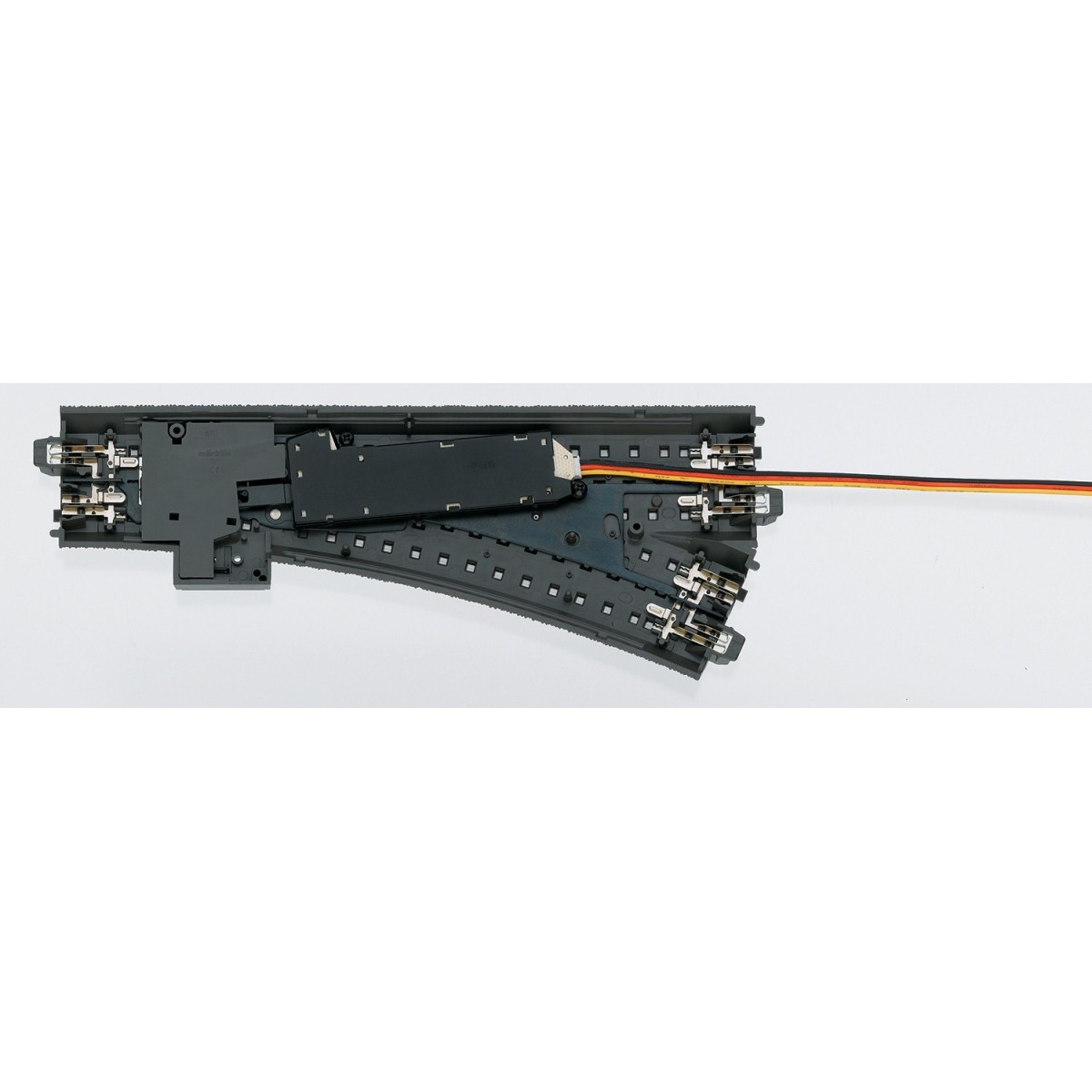

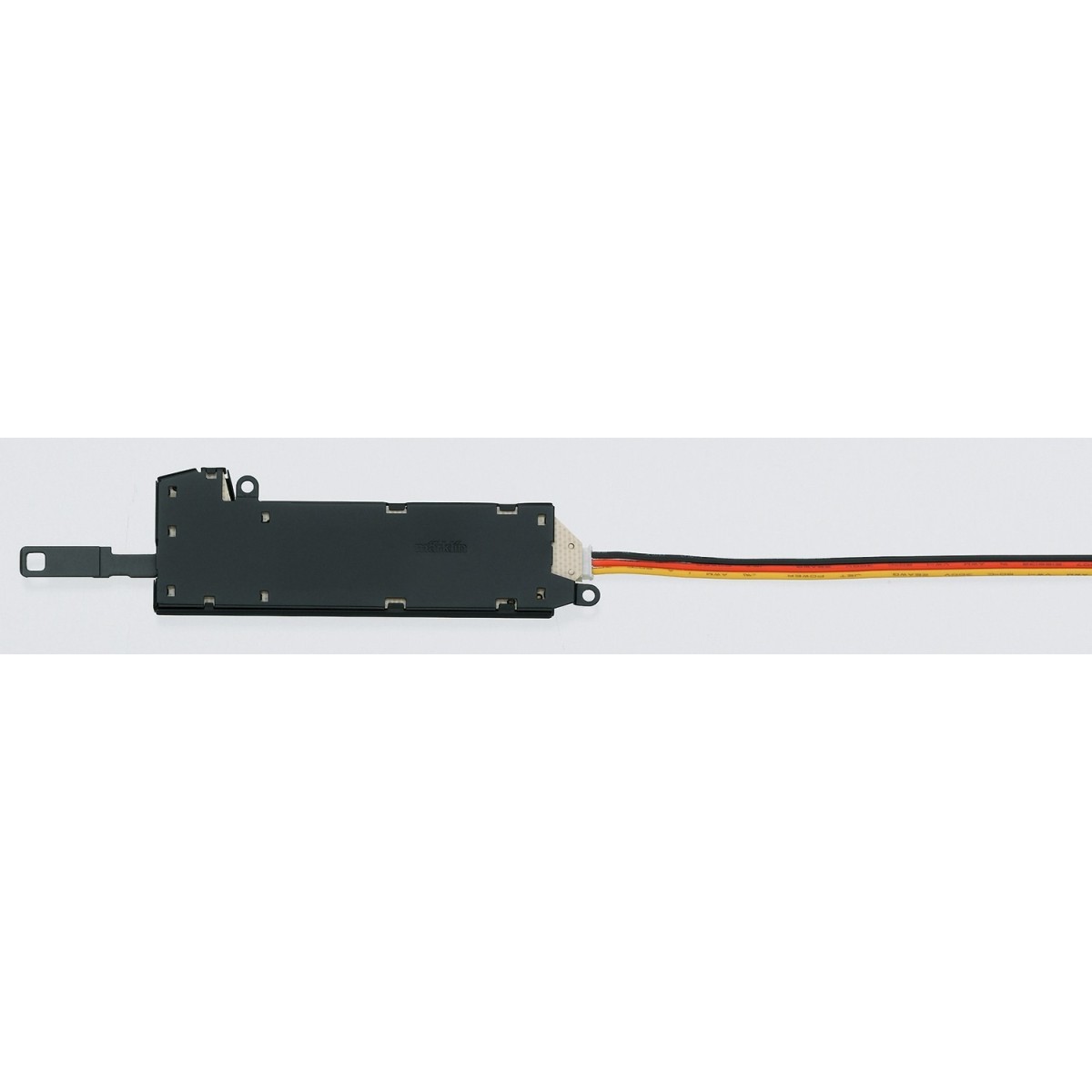

Marklin 74491 turnout motor for C track. Equipment kit for turnouts with double solenoid motor, simple assembly and control possible by control panel or digital decoder.
Brand: Marklin
Ref: 7103
Scale: N, Ho
Decoder for turnout, signal and uncoupling track motors.
- Provides support for Motorola, DCC, and MFX formats.
- LED indicators for quick reading of operating statuses.
- Update possible.
- 4 exits
Receiver for switching turnouts, signals, and uncoupling tracks. The m83 supports Motorola, DCC, and mfx digital formats. Digital address setting is possible via the coding switch or via the programming channel in four-by-four increments. Address ranges up to 320 are available in Motorola format, and up to 2040 in DCC format. The m83 has 8 outputs, switchable individually or in pairs. Default configuration: switching up to 4 turnouts. Other functions include switching up to 8 lights (variable intensity) with defined lighting behavior (e.g., street lighting, building lighting). An external power supply, e.g., via 66360, is possible only in combination with 60822. The m83 and m84 decoders can be connected in series. Motorized drives require an equipment set (ref. [reference number missing]). 60821 per output pair. Connection is made using clamp terminals. Maximum permissible current 3 A.
Marklin_74491
Data sheet
- Ladder
- HO - 1/87
Specific References
- EAN13
- 4412345013748
