Passenger train starter set with electric class 141, DB AG - MiniTrix 11132 - N 1/160

The Trix Minitrix digital starter set “Passenger Train” ref. 11132 is a complete N scale set, designed around a passenger train of the Deutsche Bundesbahn (DB) from era IV.

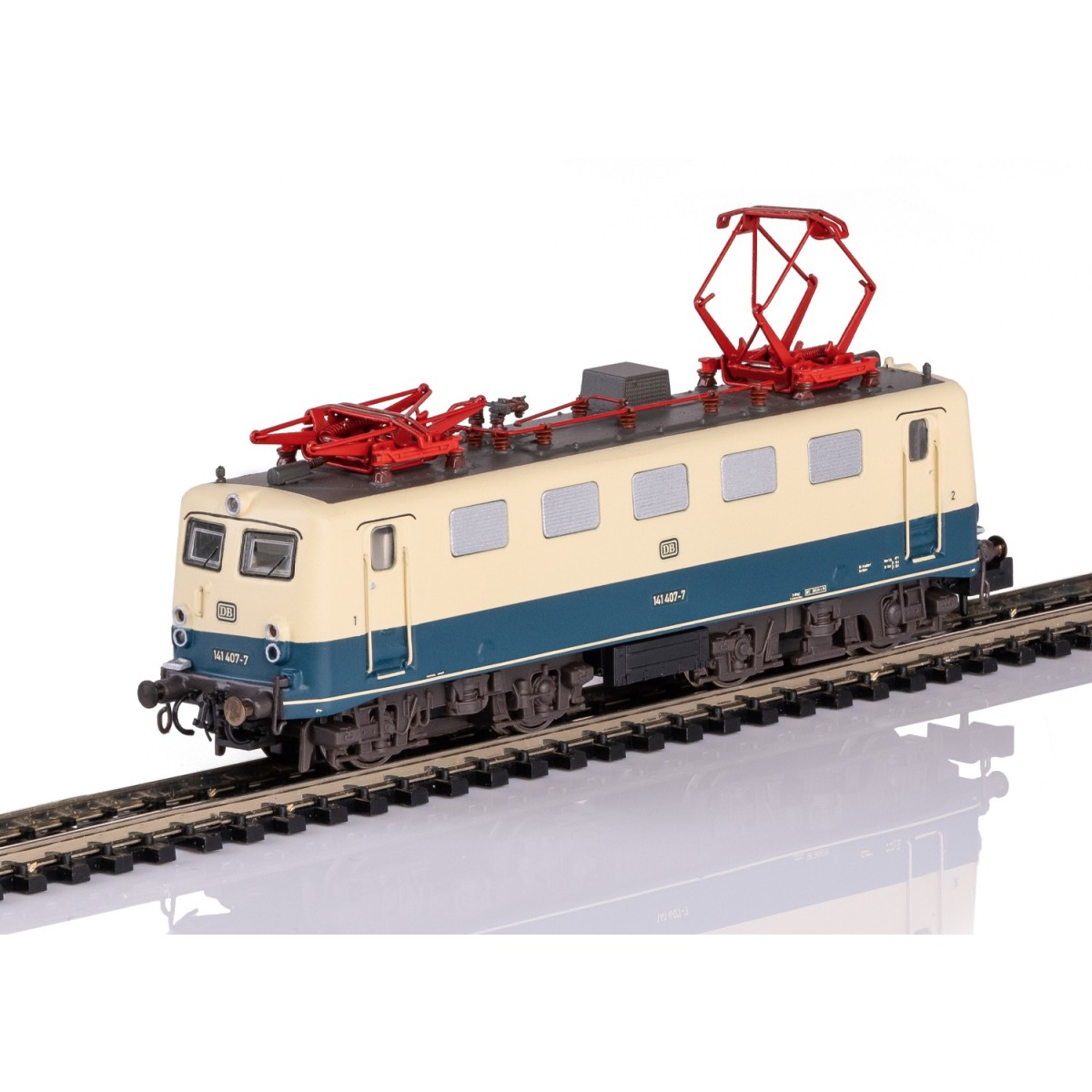

It includes a BR 141 type electric locomotive in its ocean blue/ivory livery, a version with double headlights and Schweiger-type ventilation grilles, as well as DB reconstruction coaches of types BDyg and AByg. The train replicates a train that ran around 1977 on the Bebra – Frankfurt/Main line.

The locomotive features a die-cast metal chassis, an integrated digital decoder compatible with mfx and DCC, and a sound generator. It has a motor with a flywheel, four driven axles, and traction tires.

The lighting system includes front and rear lights that reverse according to the direction of travel, with warm white LEDs, as well as cab lighting. The lighting functions can be controlled digitally.

Passenger cars are equipped with close coupling mechanisms. Interior lighting can be installed.

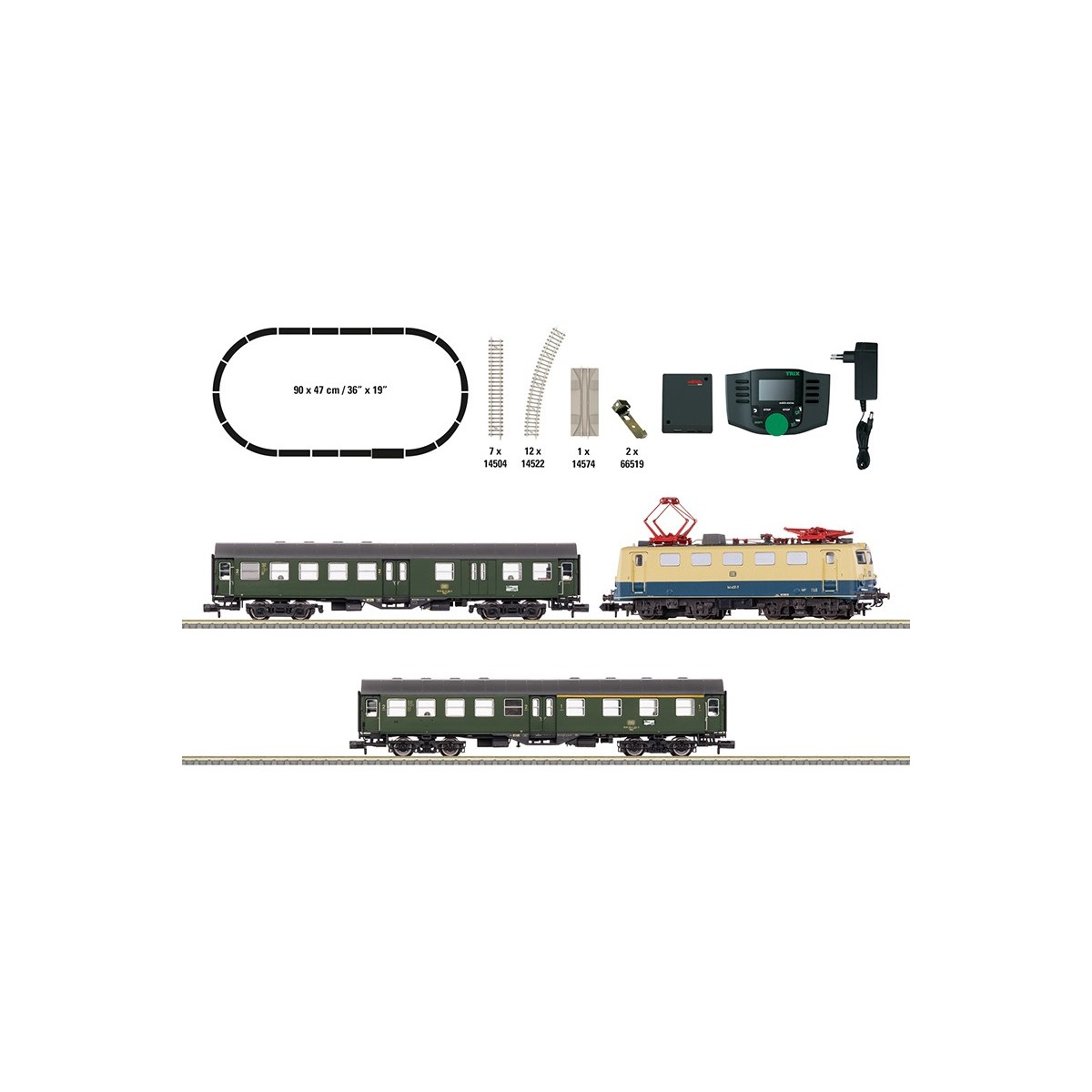

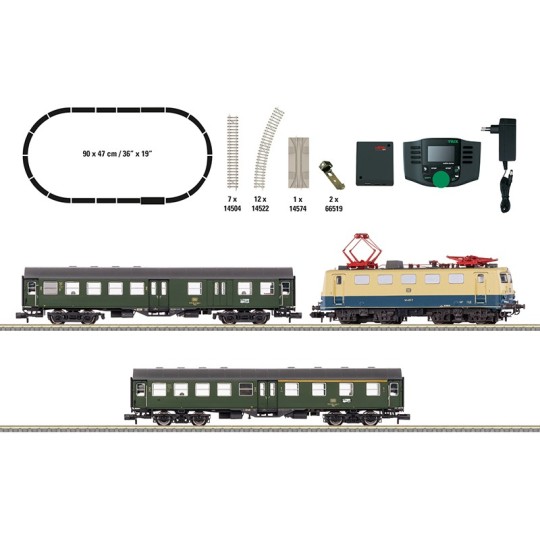

The box also contains:

• a Mobile Station,
• a track connection box,
• a 230V / 30VA switching power supply,
• an oval track with curves of radius 2,
• of the track on concrete sleepers.

The space required for the track layout is 90 x 47 cm. The total length of the train, excluding buffers, is approximately 342 mm.

This set can be complemented with the entire Minitrix track program on concrete sleepers. For car lighting, the compatible reference indicated is the 66638 LED lighting kit.

Digital functions for the locomotive:

• headlights,
• locomotive warning device,
• sounds of an electric locomotive
• cabin lighting,
• direct order
• deactivation of brake squealing noise,
• turn off the rear lights
• maneuver whistle,
• turn off the front lights
• announcements at the train station.
• the controller's whistle,
• brake compressor,
• blowers,
• air exhaust,
• special sound function
• sandblasting,
• closing the doors
• main relay,
• noise of couplings,
• windshield wiper noise,
• SIFA warning signal.

Reference: 11132

Scale: N

Brand: Trix Minitrix
