MIS 1 - 12V - 50W Proxxon Micro Screwdriver

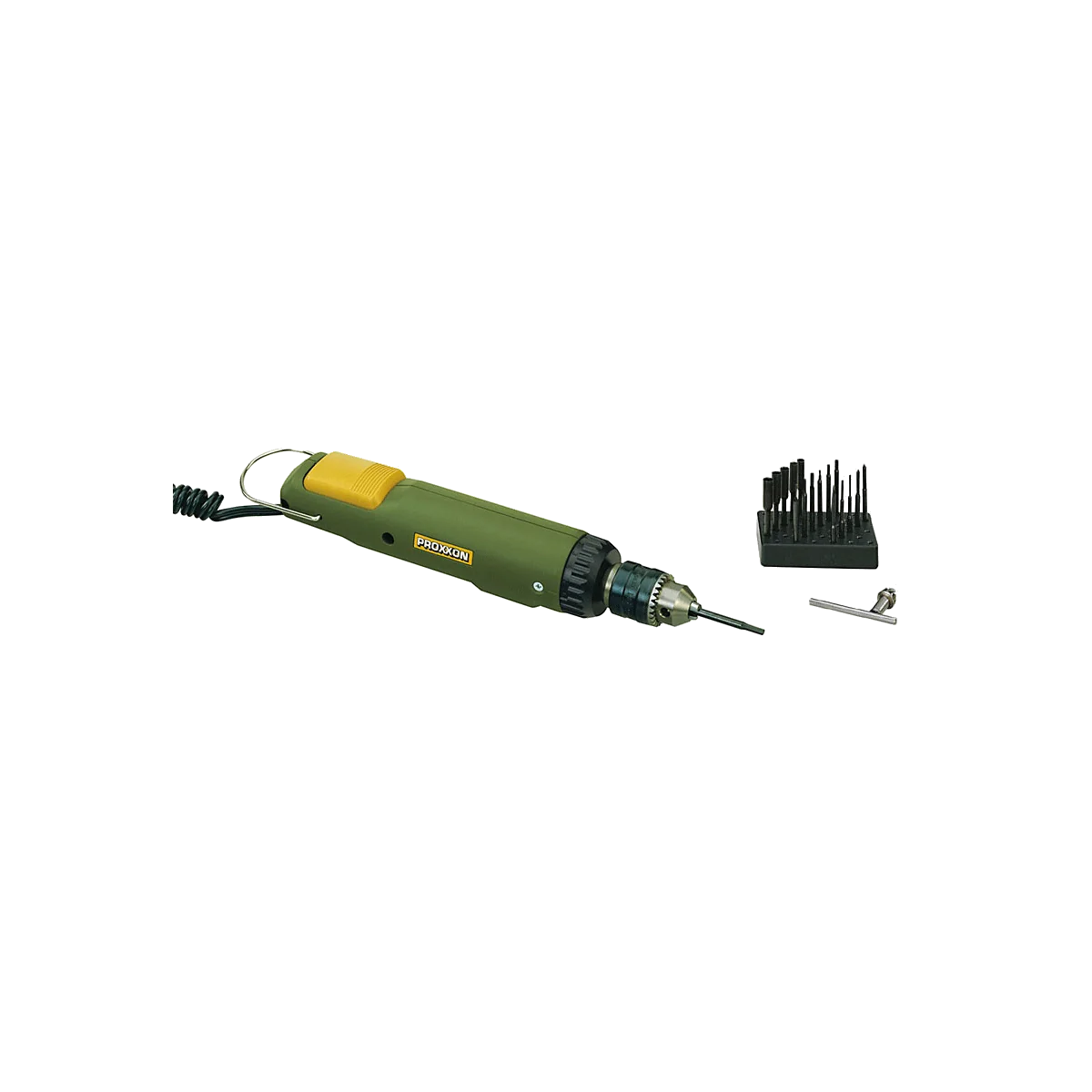

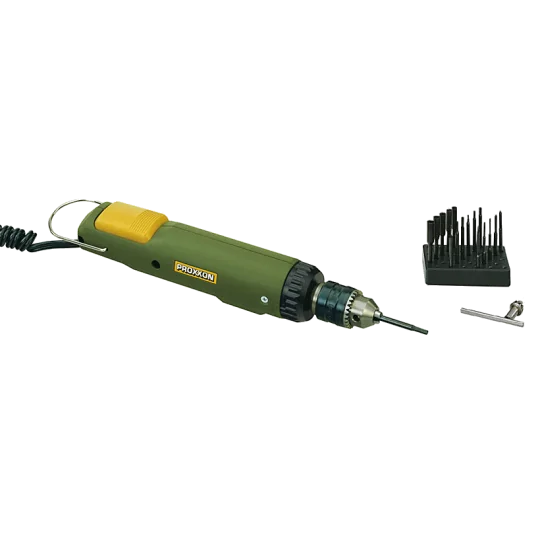

MIS 1 micro-screwdriver
For tightening torques from 0.35 to 2 Nm. Thanks to the reversing switch for tightening/loosening, also ideal for threading. - 28690

Small, lightweight, and easy to handle. Tool attachment via a toothed chuck for shanks up to 6.5 mm (and standard 1/4" bits). Housing made of fiberglass-reinforced polyamide. Supplied with 16 chrome-molybdenum steel accessories.

	Straight blades: 0.3 x 1.5 / 0.35 x 2 / 0.4 x 2.5 mm
	Cruciforms: 0 and 1
	TX: 6 - 8 - 10
	Hex keys: 3 - 3.5 - 4 - 4.5 - 5 mm
	Hex sockets: 1.5, 2 and 2.5 mm

Technical data:

Direct current 12 - 18 V.
50 W.
Tightening torques from 0.35 to 1 Nm (in position 6, the disengagement function is removed, the torque then being approx. 2 Nm).
Length 200 mm. Weight 415 g.

For power supply, we recommend MICROMOT transformers with a minimum power of 2 A.

Note on industrial uses:

For torque ranges up to 2.0 Nm, the MIS1 outperforms pneumatic tools as an electric screwdriver. This isn't just due to lower energy costs. It operates quietly and cleanly (no lubricated compressed air as exhaust in the workplace). The highly flexible coiled cable makes the tool comfortable to use.

In combination with the BV 2000 drilling device, the MIS 1 MICRO-screwdriver is a suitable solution for tapping.
