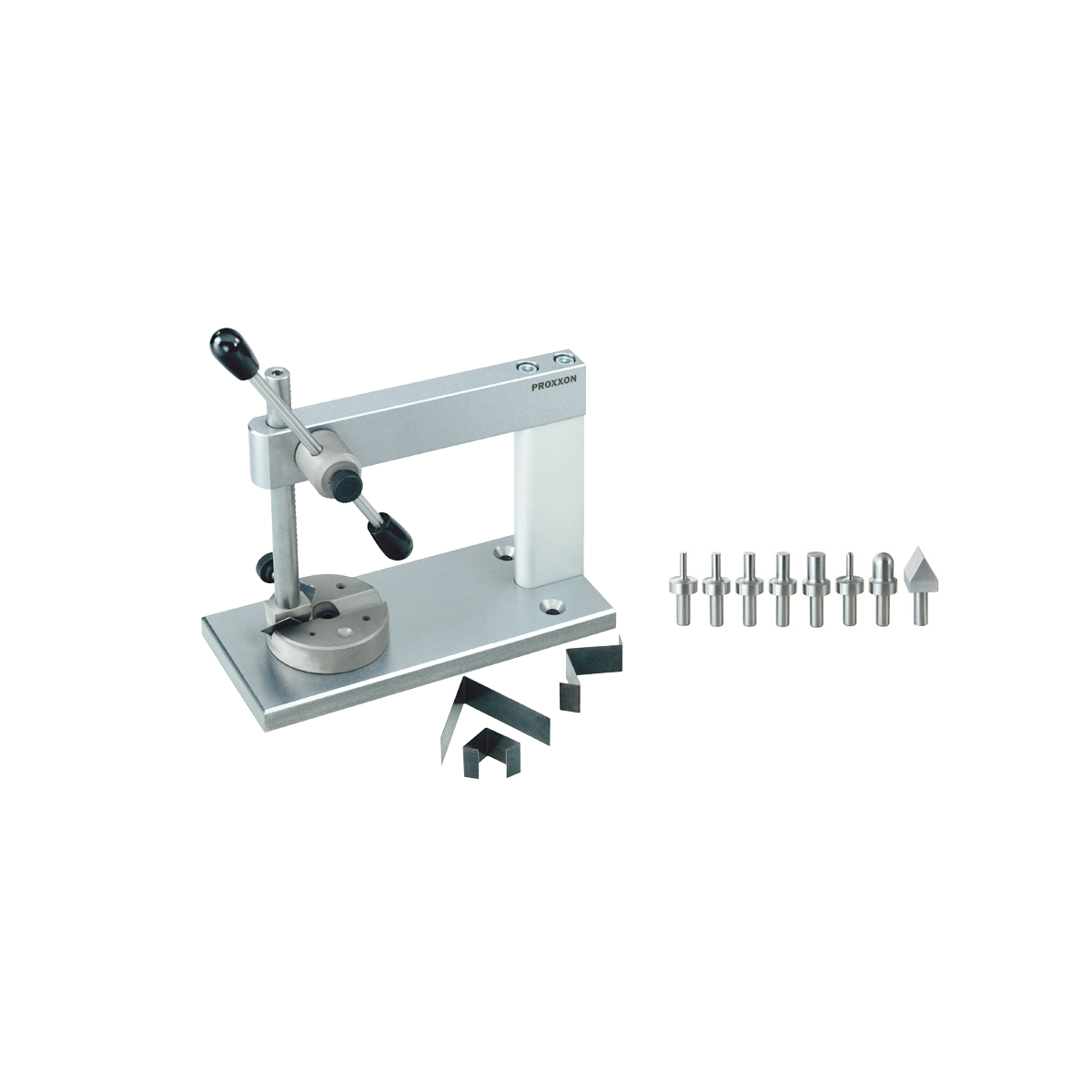

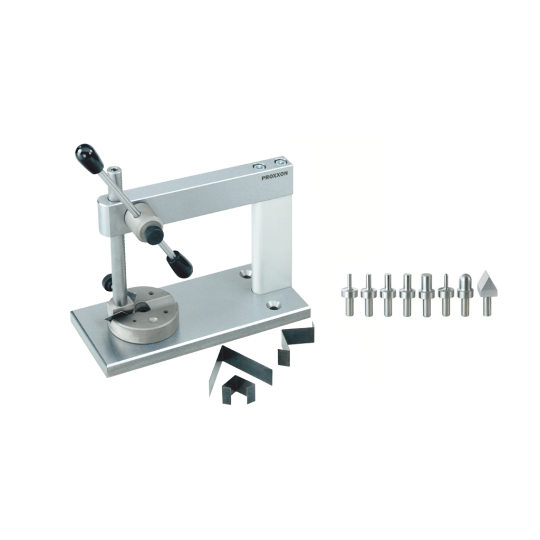

MP 120 - Proxxon MICRO Press Folding Machine

Pressing, riveting, boxing, bending wires or sheet metal. Pushing in and folding soft and tough materials.

With 5 cylindrical punches (hardened surface) that attach to the rack using the knurled screw: Ø 3, 4, 5, 6, and 8 mm. Also included are a hemispherical profile Ø 3 and 9 mm and a 60° angular prism for bending metal angles. The counterweight is an easily adjustable hardened turret with all the necessary drill holes and dies for the punches mentioned below.

Notched rack at one front end with a 6 mm bore for use with the 8 included punches. 5 mm bore at the other front end for use with all commercially available riveting tools: simply turn the rack upwards, remove it, and reinsert it upside down.

Pressure: 1,000 N (100 kg).
Maximum rack stroke with punch inserted of 65 mm, above the turret of 50 mm.
Solid steel arm with a reach of 120 mm.
Ground steel plate, 80 x 190 mm with an 8 mm hole in the center and 2 holes for fixing.
Weight approx. 2800 g.
