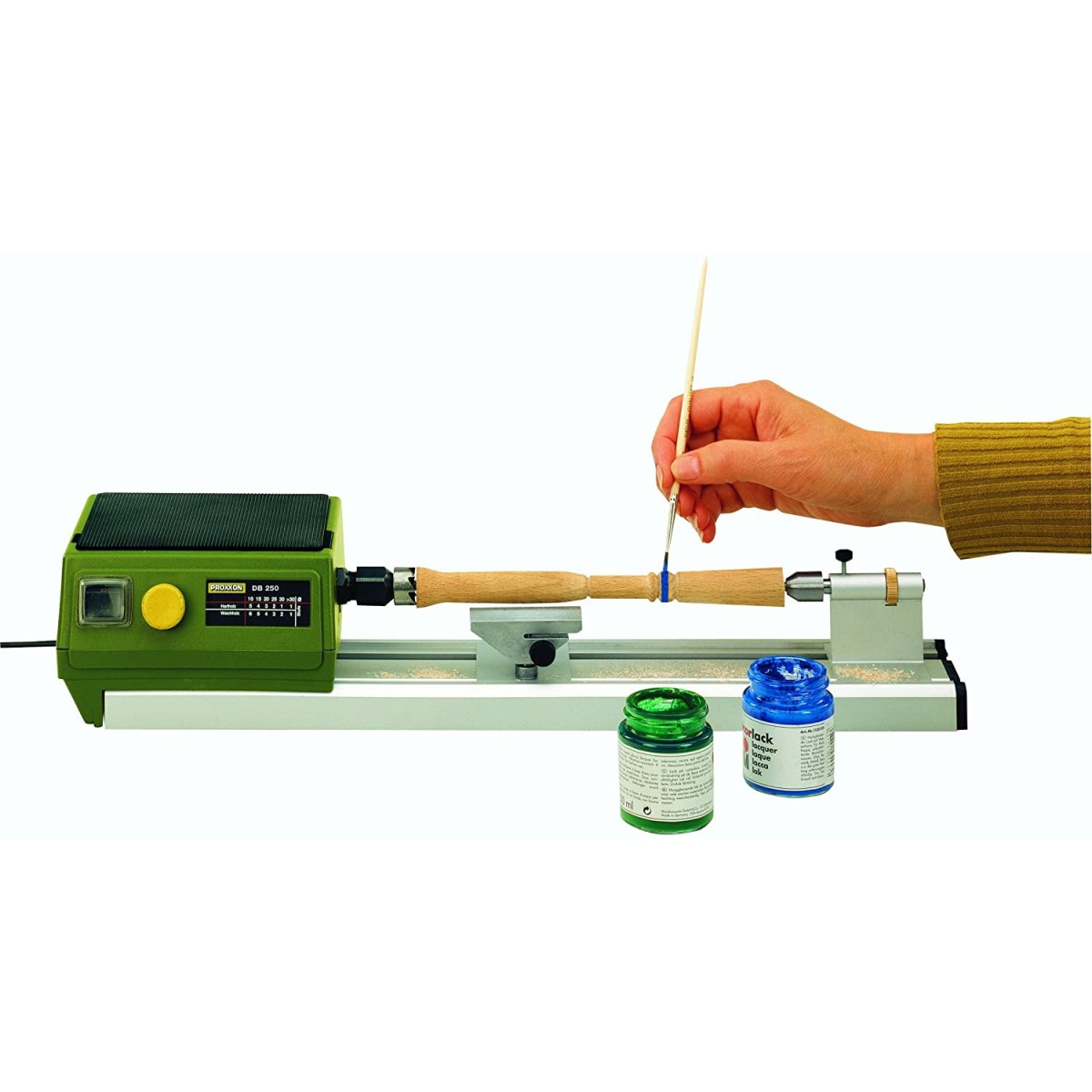

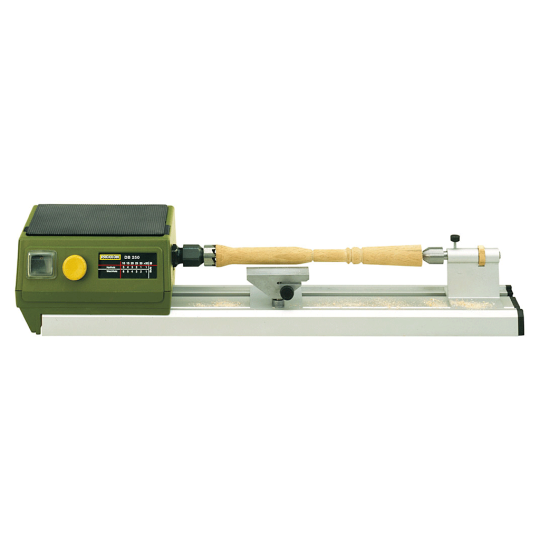

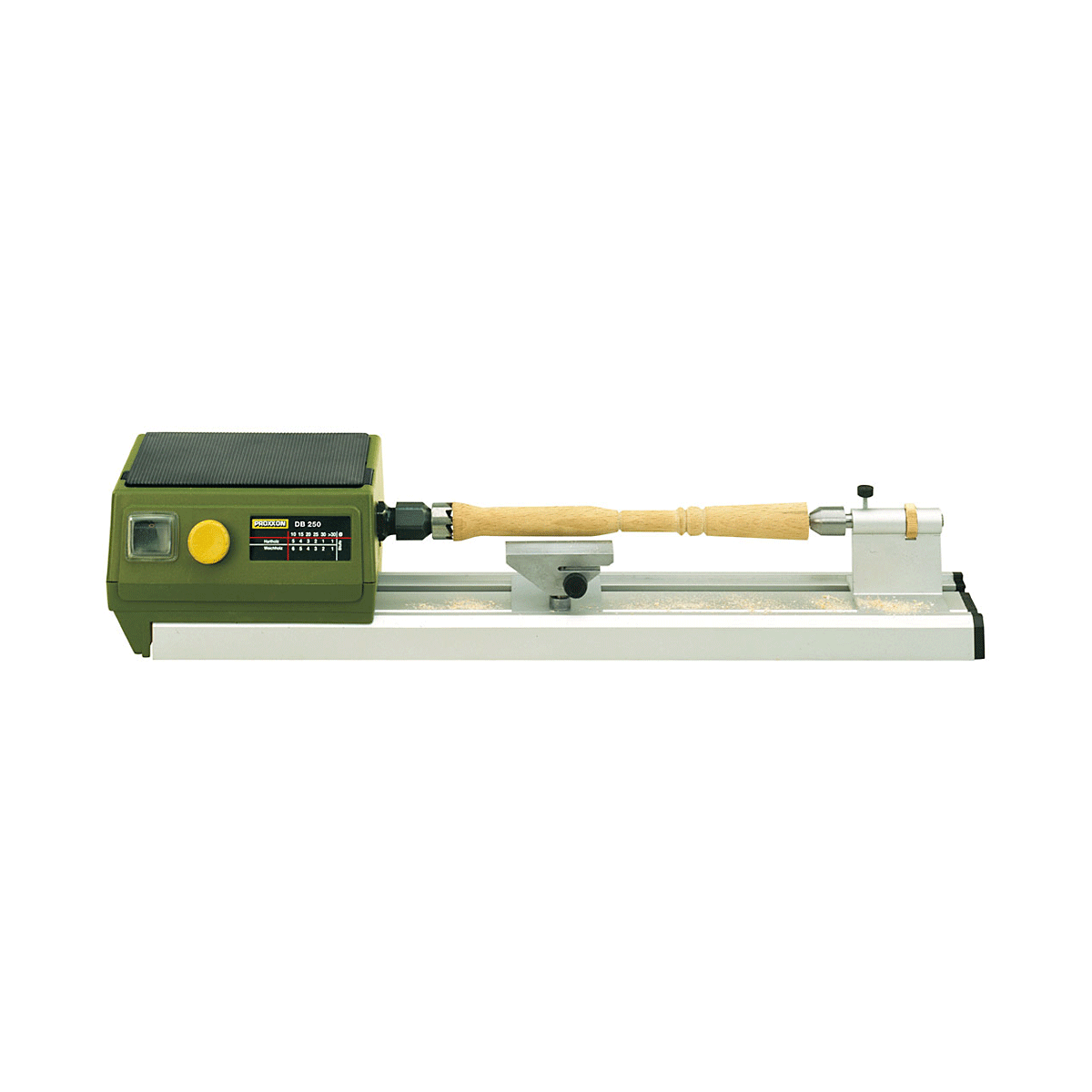

DB 250 - Micro wood lathe - 250mm between centers Proxxon

DB 250 - Micro wood lathe - 250mm distance between centers Proxxon - 27020

Particularly suitable for turning small parts: for dollhouses (plates, cups, dishes, vases, columns) and model trains: electric pylons and lampposts, windows, cisterns. For making toys, puppet and doll parts, and for numerous applications in traditional model making.

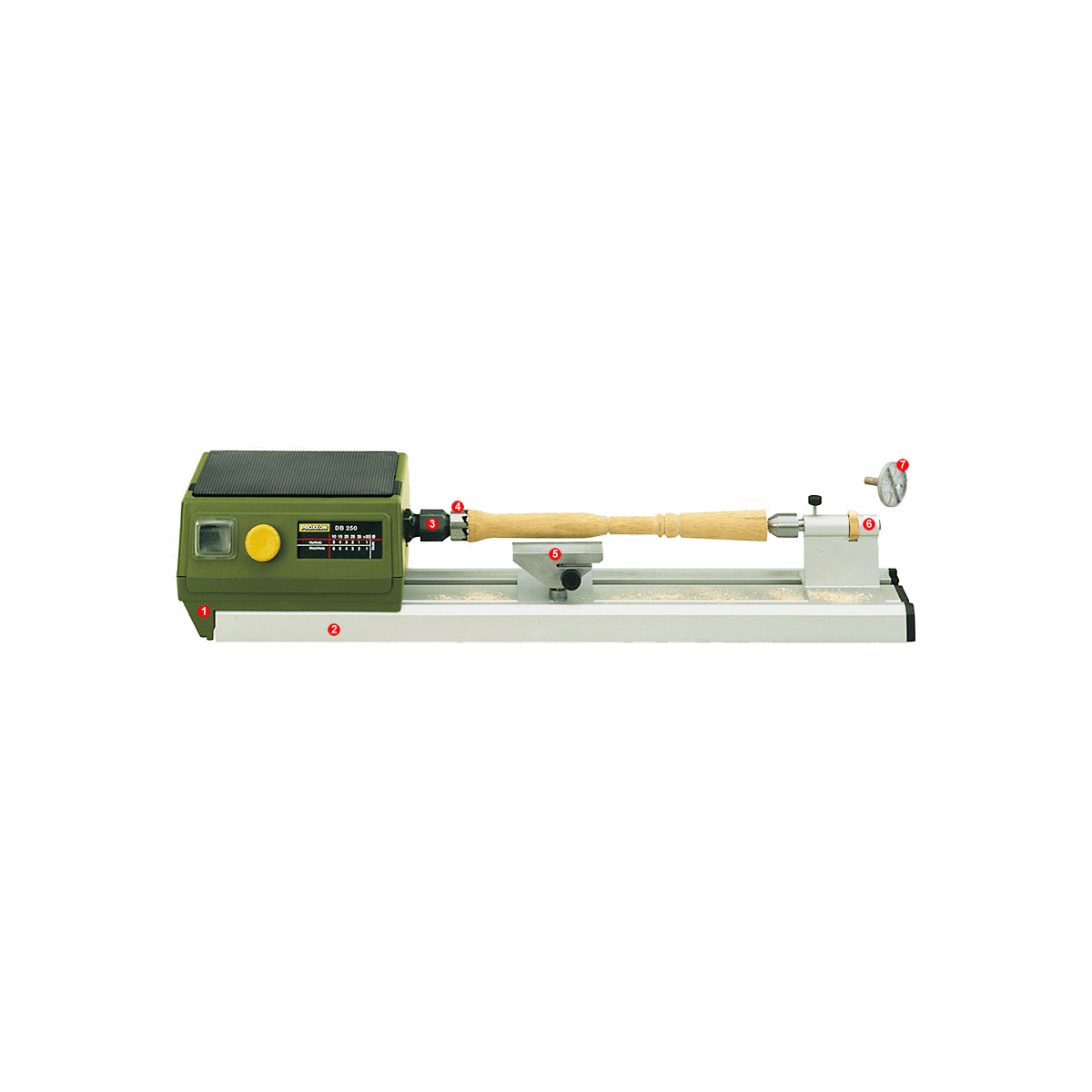

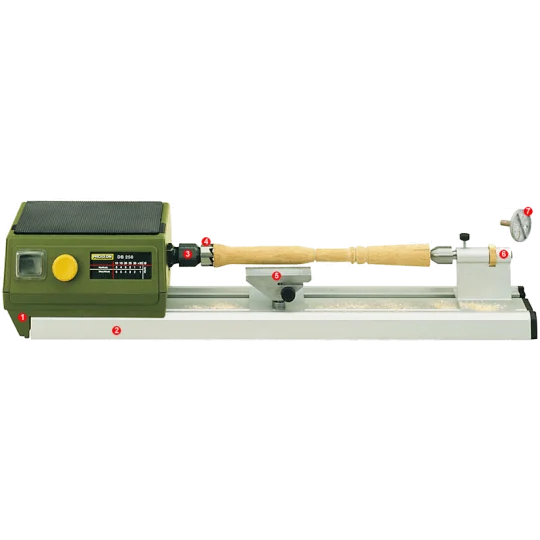

1. Powerful motor, adjustable speed from 1,000 to 5,000 rpm.
2. Stable frame with wide aluminum profiles.
3. Bearing-mounted spindle with bore (10 mm) allowing for the serial production of small parts.
4. Serrated shank with centered point and 10 mm shaft.
5. Stable tool holder that is height-adjustable and can be oriented in all directions.
6. Rotating tailstock.

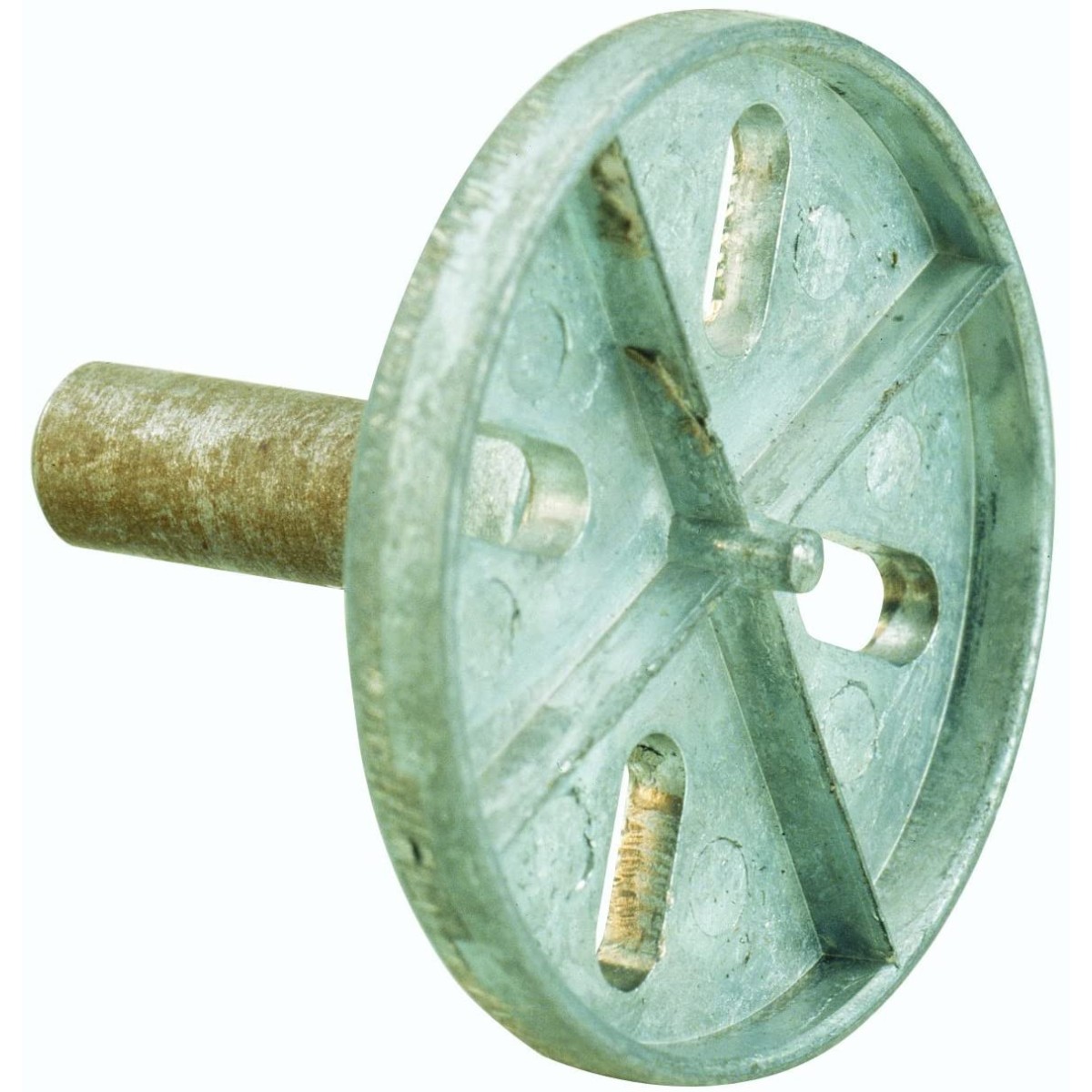

7. A circular drive plate (for larger parts) is included.

Technical data:

230V, 100W, 50/60Hz motor.
Distance between centers 250 mm.
Height of the spikes 40 mm.
Height of the spikes with support 25 mm.
Continuously adjustable engine speed from 1,000 to 5,000 rpm.
Main shaft 10 mm. Tailstock stroke 20 mm.

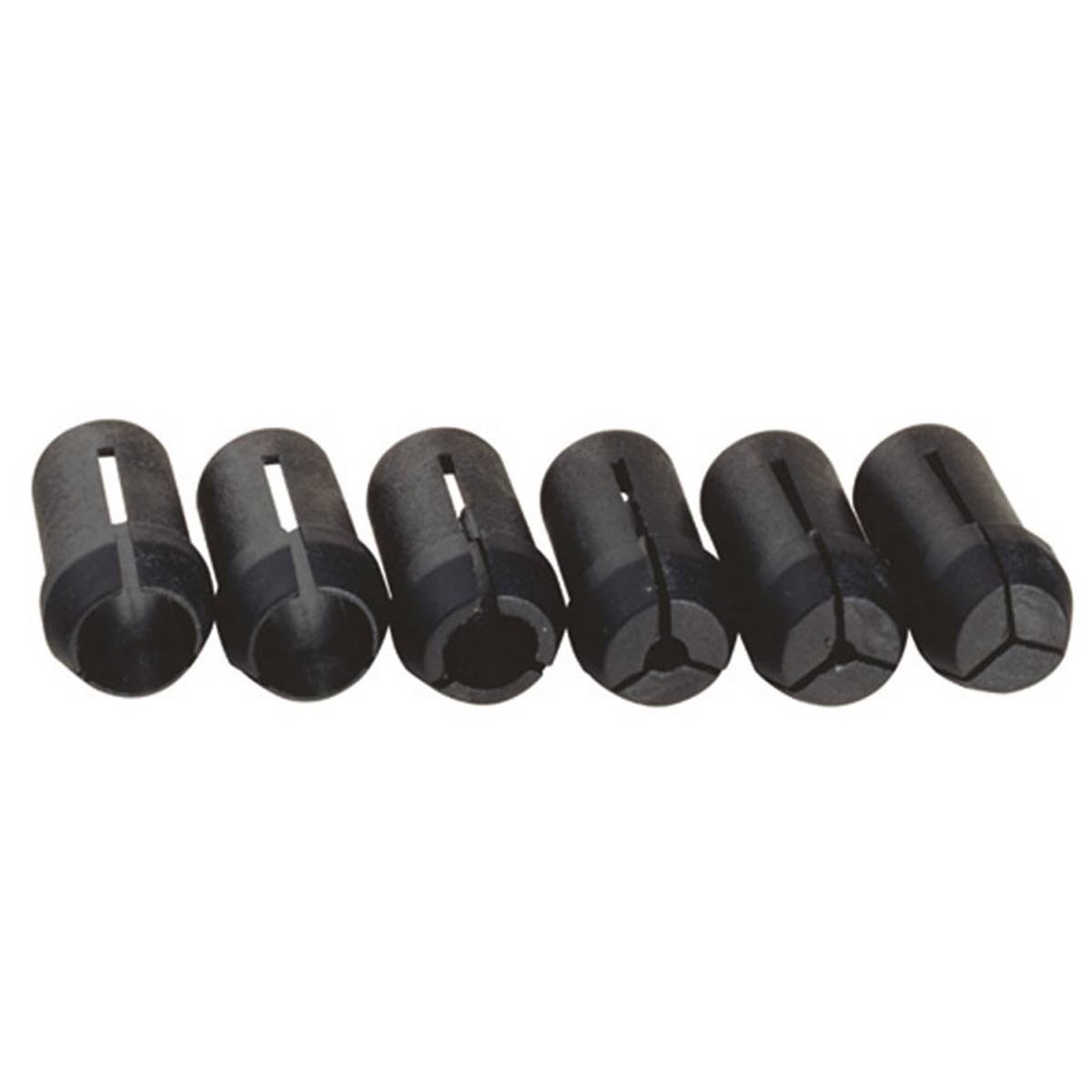

Supplied with 6 clamping jaws (2 - 3 - 4 - 6 - 8 and 10 mm), training jaw, sliding jumper and circular training plate.

The electronic speed control allows for "semi-automatic painting" even at low speeds.

6 clamping clips are included.

Recommended accessories:

Set of 5 turning tools
Superior quality and most common shapes: scraper, 3 mm and 6.4 mm tubes, pointed chisel and chisel. Neatly packaged in a wooden case.

NO 27 023

Spindle chuck for the DB 250 tailstock
Clamping up to 5 mm. To be fixed in place of the rotating tailstock. Feed by moving the headstock.

NO 27 028

4-jaw chuck for DB 250
Individually adjustable jaws. For clamping asymmetrical wooden workpieces. Clamping capacity with reversible jaws: internal 1.5 to 35 mm, external 14 to 67 mm. M16 x 1 internal thread for mounting on the DB 250 main shaft.

NO 27 024

3-jaw chuck for DB 250
Concentric clamping. Pressure-molded steel. Clamping capacity with reversible jaws: internal 1.5 to 20 mm, external 12 to 50 mm. M16 x 1 threaded chuck for mounting on the DB 250 main shaft.

NO 27 026
