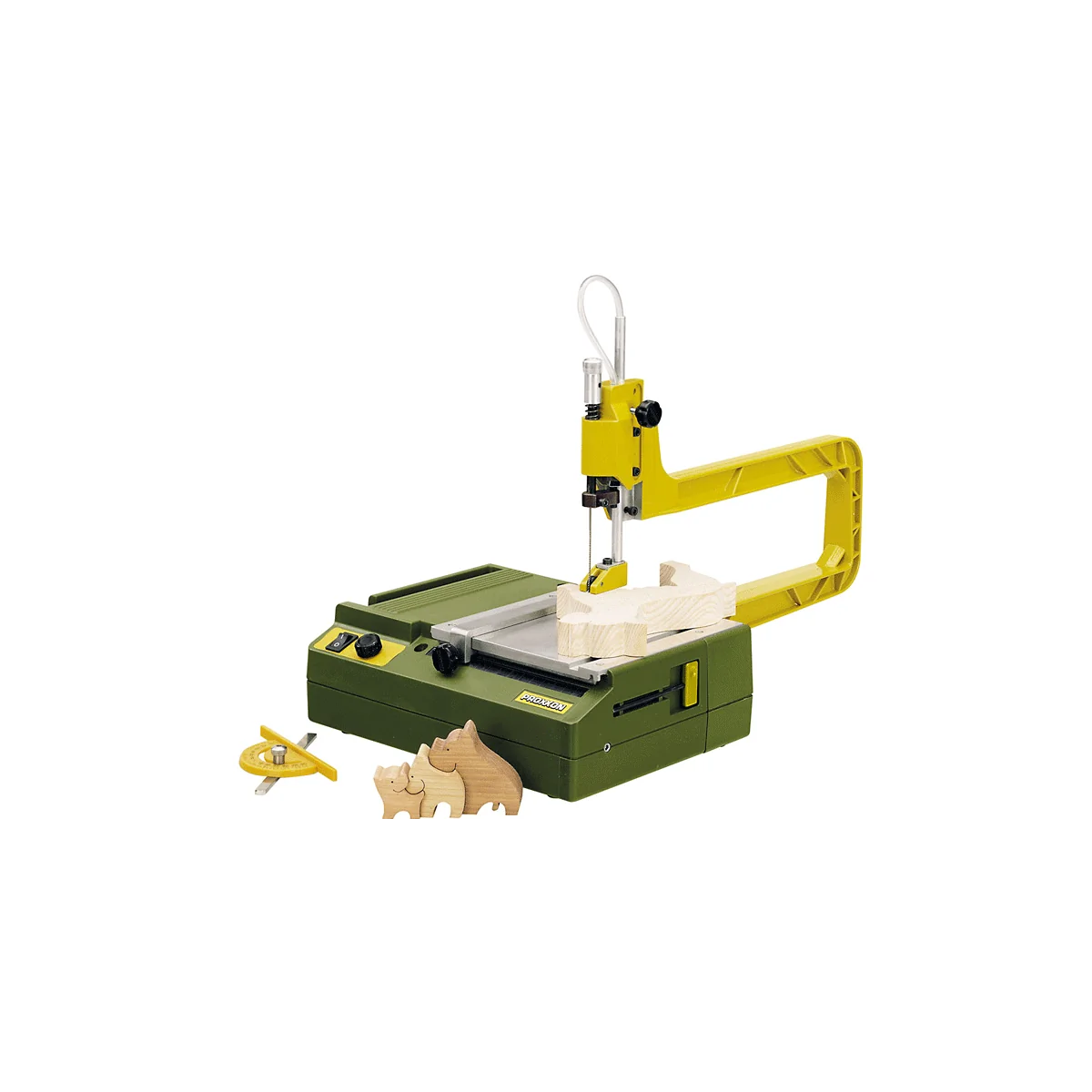

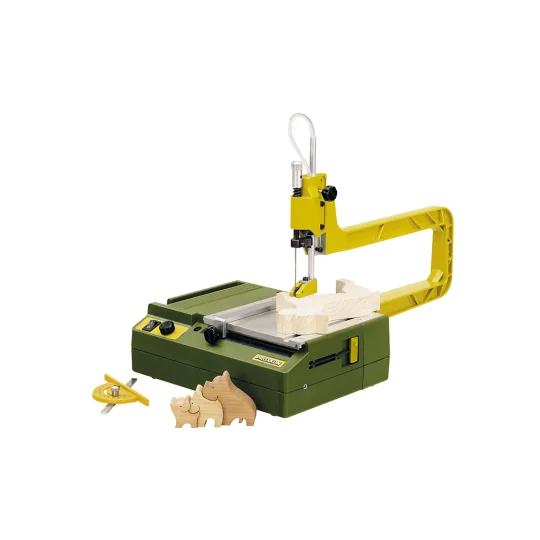

DS 230/E - Proxxon Jigsaw
€146.00
Tax included
By buying this product you can collect up to
146
points.
Your cart will total 146
points that can be converted into a voucher of
€2.92.
DS 230/E - Proxxon Jigsaw - 27088
With electronic speed control. The ideal tool for precision work in model making, toy construction and precision mechanics.
Order now and receive it...
between 23 Mar and 26 Mar with Colissimo Points de retrait €7.90
between 23 Mar and 26 Mar with Colissimo Domicile €8.90
between 23 Mar and 26 Mar with DPD Livraison en relais Pickup €7.90
between 23 Mar and 26 Mar with DPD Livraison à domicile Predict €8.90
between today and 26 Mar with Magasin Next Model RC / Univers Train Free!
With electronic speed control. The ideal tool for precision work in model making, toy construction and precision mechanics.
For cutting softwood up to 40 mm, hardwood up to 10 mm, plastic (including plates) up to approximately 4 mm, and non-ferrous metal up to 2 mm. Die-cast aluminum saw frame with cross ribs (300 mm reach). Integrated blower blade guide. Height-adjustable head (3 positions) offering two significant advantages (see description on the right).
AC motor, quiet and durable. Quiet drive via toothed belt and stop with dividing scale. Supplied with 5 blades (3 coarse teeth and 2 fine teeth).
Technical data:
230 V. 85 W. Electronic regulation from 150 to 2,500 rpm. Weight 2 kg.
- Height-adjustable head (patent EP 09783341), providing undeniable advantages (see below).
- Blade life tripled after the 2nd lowering (using teeth also on the middle part).
- In the lower position, the work is even more precise thanks to a blade reduced to 60 mm.
A suction nozzle allows for clean work. We recommend using our CW-matic compact workshop vacuum cleaner.
Super-Cut jigsaw blades
High-performance special steel for high cutting capacity. Standard finish (without through pin).
For hard and soft wood, plastic, plexiglass and soft non-ferrous metal.
Coarse teeth (No. 9: 14 teeth over 25 mm):
NO 28 116 130 x 1.50 x 0.48 mm 12 pieces
Medium dentition (No. 5: 17 teeth over 25 mm):
NO 28 117 130 x 1.20 x 0.38 mm 12 pieces
Fine teeth (No. 3: 20 teeth over 25 mm):
NO 28 118 130 x 0.80 x 0.34 mm 12 pieces
For hard materials such as iron and PERTINAX.
Medium dentition (No. 5: 36 teeth over 25 mm):
NO 28 112 130 x 0.85 x 0.4 mm 12 pieces
Fine teeth (No. 3: 41 teeth over 25 mm):
NO 28 113 130 x 0.75 x 0.36 mm 12 pieces
Ultra-fine teeth (No. 1: 50 teeth over 25 mm):
NO 28 114 130 x 0.6 x 0.3 mm 12 pieces
PRX-27088
Specific References
- EAN13
- 4006274270886
