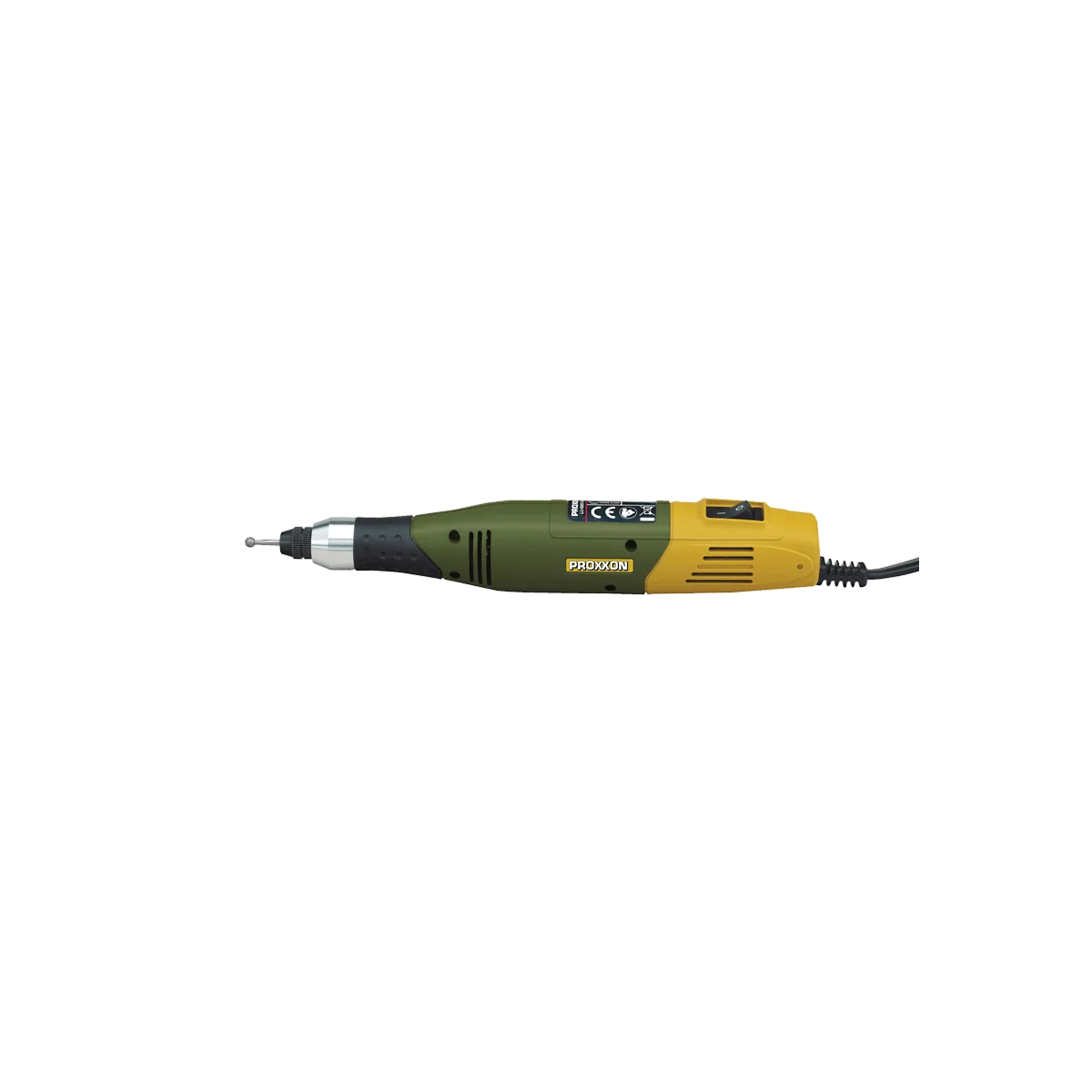

MICROMOT 60 - 12V Drill/Milling Machine, with 6 Proxxon Collets

MICROMOT 60 Drilling and Milling Machine

Particularly easy to handle thanks to their 35 mm diameter, they are also lightweight (approx. 230 g), quiet, and operate smoothly thanks to a balanced motor and a precision-ground shaft mounted on ball bearings. The use of high-quality steel MICROMOT collets (see description below) ensures extremely concentric clamping of even the smallest tool shanks. There is no chatter or jerking of the tool.

The use of MICROMOT 60 devices requires a transformer . We recommend the MICROMOT NG 2 transformer.

1. The 20 mm collar fixing system allows use with the MB 200 vertical support and the UHZ universal support.
2. Robust case made of glass fiber reinforced POLYAMIDE. With a soft component in the grip area.
3. Electronic stepless speed control with feedback effect. For high drive power at low speeds.

• For drilling, milling, sanding, polishing, brushing, cutting and engraving. For processing steel, precious metals, glass, ceramics, plastics and minerals.
• With safety voltage at low voltage. Therefore also suitable for working with coolant (polishing and cutting under liquid).
• For electronics hobbyists, model makers, precision mechanics, goldsmiths, opticians, sculptors, pedicurists, dentists, tool and mold makers.

Without speed adjustment. (Constant 20,000 rpm). Tool holder with MICROMOT steel collets (1 piece 1 - 1.5 - 2 - 2.4 - 3 and 3.2 mm).

Noticed :

The speed control on our 12-volt units only works with unregulated power supplies (e.g., all MICROMOT transformers). Connection to regulated power supplies is possible. However, the devices will then operate at maximum speeds (this also applies to battery operation).

Noticed :
MICROMOT steel clamping pliers are hardened, giving them high and constant elasticity They retain the necessary precision even after prolonged use (unlike unhardened 4-slot clamps or those made of brass or aluminum). The triple slot which is much more difficult to achieve than a quadruple slit, allows us to obtain improved stability. This is particularly important for centering small diameter rods.

Technical data:

Direct current 12 - 18 V.
40 W.
20,000/min.
Length of 220 mm.
Weight 230 g.

Suitable accessories:

FS Foot Switch
Work hands-free. For all devices with a European plug (class 2) and a power rating up to 500 W max. Also suitable for benchtop devices. Housing made of fiberglass-reinforced nylon. 250 cm cord for 230 V mains power. 50 cm output cable. For 12 V devices, the switch can be connected to the transformer.

NO 28 700

MICROMOT extension cord
300 cm. For 12 volt devices. Male and female plugs with polarity markings.

NO. 28992
