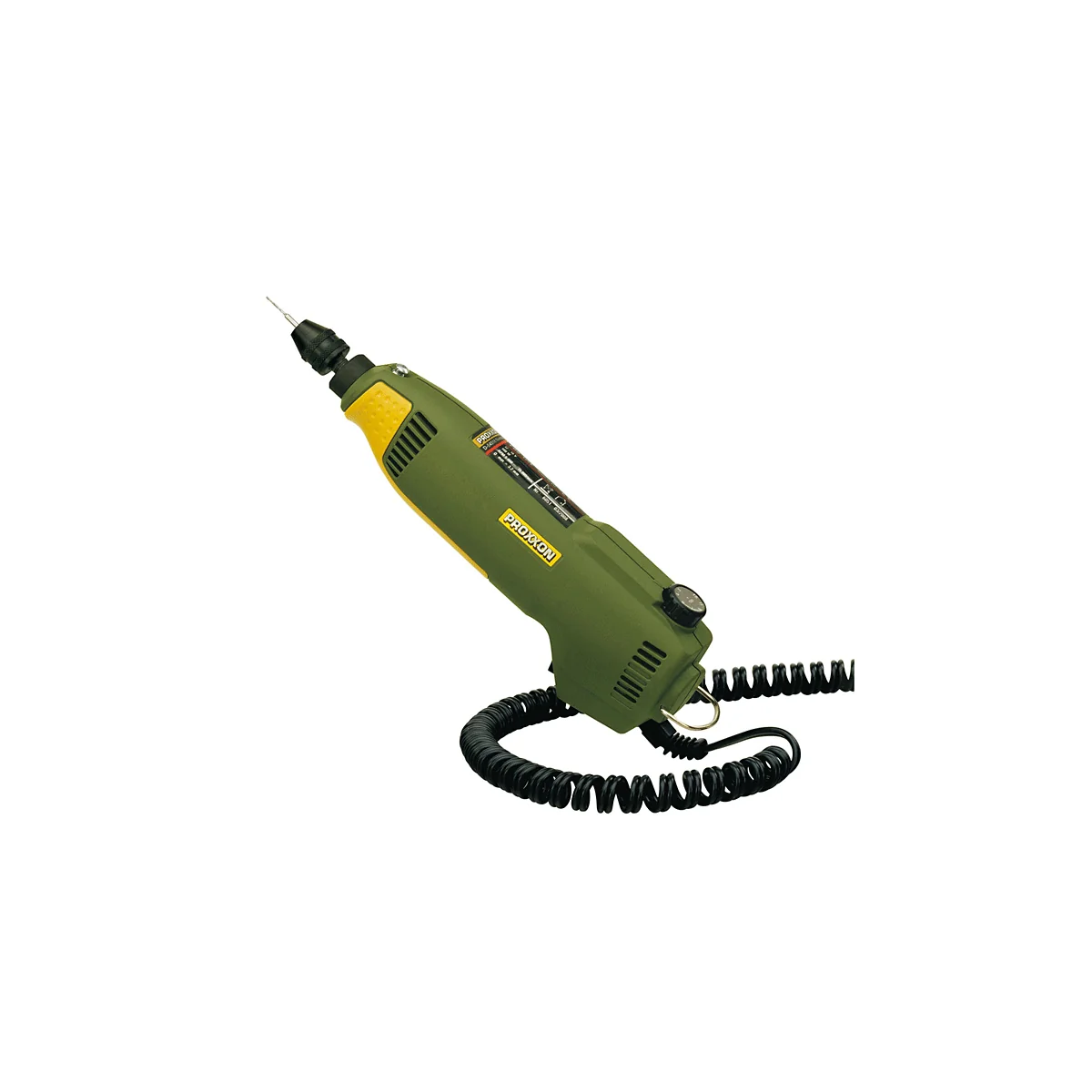

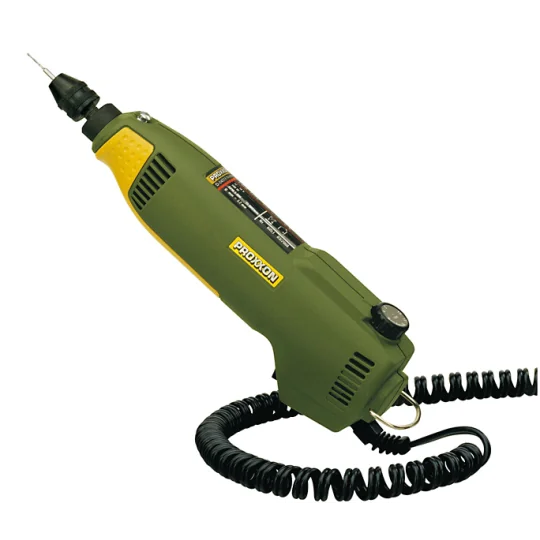

FBS 12/E - 100W, 2A max drill/grinder with Proxxon chuck

Proxxon FBS 12/EF Angle Grinder/Drill

For precision drilling, milling, sanding, polishing, brushing, derusting, engraving, chiseling and cutting.

With chuck (0.3 to 3.2 mm). Precision ground steel shaft mounted on ball bearings. Spindle lock at the push of a button for tool changes. Bored spindle head for use with MICROMOT collets. Powerful, quiet, and durable balanced DC motor. Infinitely variable speed control with feedback effect (high power at low speeds). Fiberglass-reinforced polyamide housing.

1. 20 mm collar for MICROMOT devices.
2. Ventilation for extended periods of use.
3. Special balanced DC motor, powerful, quiet and durable.
4. Speed control with feedback effect.

Must be used with a transformer:
PROXXON Transformer: 28707 - 28704 - 28706

Technical data:

Direct current 12 - 18 V.
100 W.
3,000 - 15,000 rpm.
Length 185 mm.
Weight 450 g.

Noticed :

The speed control on our 12-volt units only works with unregulated power supplies (e.g., all MICROMOT transformers). Connection to regulated power supplies is possible. However, the devices will then operate at maximum speeds (this also applies to battery operation).
