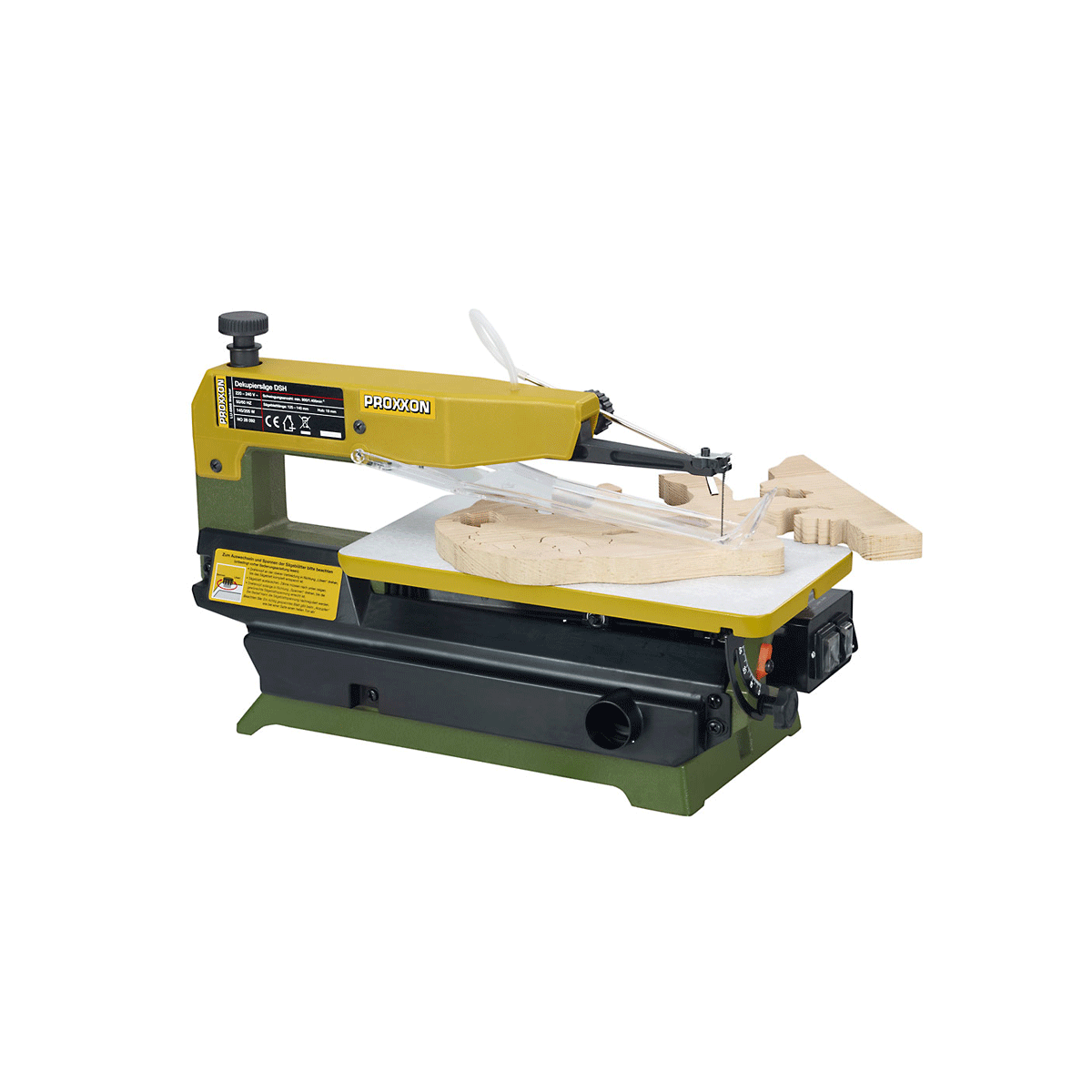

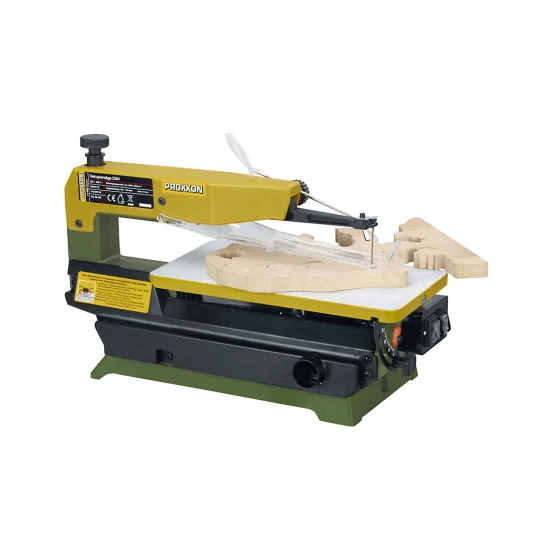

DSH - Proxxon 2-speed jigsaw

Cutting capacity in wood 50 mm, plastic 30 mm, non-ferrous metals 10 mm.

For cutting plexiglass, fiberglass, foam, rubber, leather, or cork. Slim, die-cast aluminum saw arm for excellent visibility from above. Adjustable blow gun nozzle provides a clear view of the cutting area. Sturdy die-cast aluminum table (360 x 180 mm) tilts 45° for bevel cuts. Cast steel base frame for stability and vibration-free operation. Includes 5 saw blades with coarse and fine teeth.



The ideal tool, especially for more frequent interior cuts. An adjustable air nozzle bellows ensures good visibility. The solid die-cast aluminum table (360 x 180 mm) can be tilted 45° for miter cuts.

Technical data:

230 V.
Powerful 2-speed brushless motor (205 W).
Setting 900 or 1400 rpm.
Stroke 19 mm.
Range 400 mm.
Maximum cutting depth 50 mm, 25 mm for a 45° mitre.
Weight approx. 17 kg.

Especially important for a circular saw: a dust extraction nozzle with an adapter ensures clean work. We recommend using our compact CW-matic workshop vacuum cleaner.

Recommended accessories:

Supercut thin blades without pin. 130mm.

For hard and soft wood, plastic, plexiglass and soft non-ferrous metal.

Coarse teeth (No. 9: 14 teeth over 25 mm):
NO 28 116 130 x 1.50 x 0.48 mm 12 pieces

Medium dentition (No. 5: 17 teeth over 25 mm):
NO 28 117 130 x 1.20 x 0.38 mm 12 pieces

Fine teeth (No. 3: 20 teeth over 25 mm):
NO 28 118 130 x 0.80 x 0.34 mm 12 pieces

For hard materials such as iron and PERTINAX.

Medium dentition (No. 5: 36 teeth over 25 mm):
NO 28 112 130 x 0.85 x 0.4 mm 12 pieces

Fine teeth (No. 3: 41 teeth over 25 mm):
NO 28 113 130 x 0.75 x 0.36 mm 12 pieces

Ultra-fine teeth (No. 1: 50 teeth over 25 mm):
NO 28 114 130 x 0.6 x 0.3 mm 12 pieces

Round blade. 130 mm. With flat ends (without tang).

For circular cuts from 1.5 mm. Cuts on all sides, no need to rotate the workpiece (important for large pieces). For plastic, soft and hard wood.

NO 28 747 130 x 1.2 mm 12 pieces

Standard blades with a tang for fine cuts. 127 mm.

With coarse teeth (10 teeth over 25 mm):
For soft and hard wood, plastic and other soft and especially thick materials.
NO 28 741 127 x 2.61 x 0.51 mm 12 pieces

With normal dentition (18 teeth over 25 mm):
For thin materials, soft and hard wood, plastic.
NO 28 743 127 x 2.25 x 0.51 mm 12 pieces

With fine teeth (25 teeth over 25 mm):
For non-ferrous metals, fiberglass, plastic, wood and plexiglass.
NO 28 745 127 x 1.76 x 0.25 mm 12 pieces
