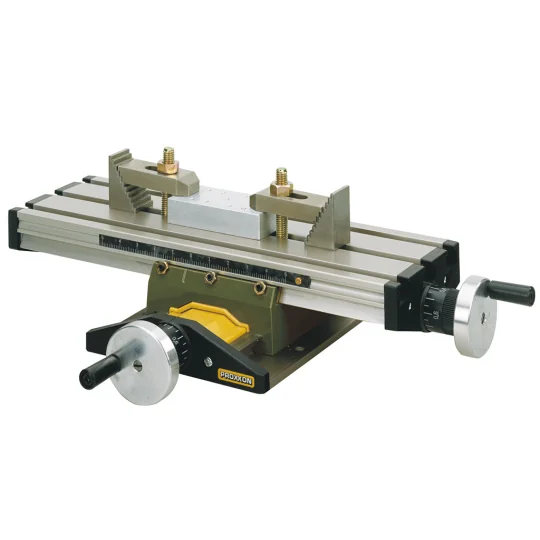

KT70 - Micro coordinate table for Proxxon MB 140/S and TBM 220
€82.00
Tax included
By buying this product you can collect up to
82
points.
Your cart will total 82
points that can be converted into a voucher of
€1.64.

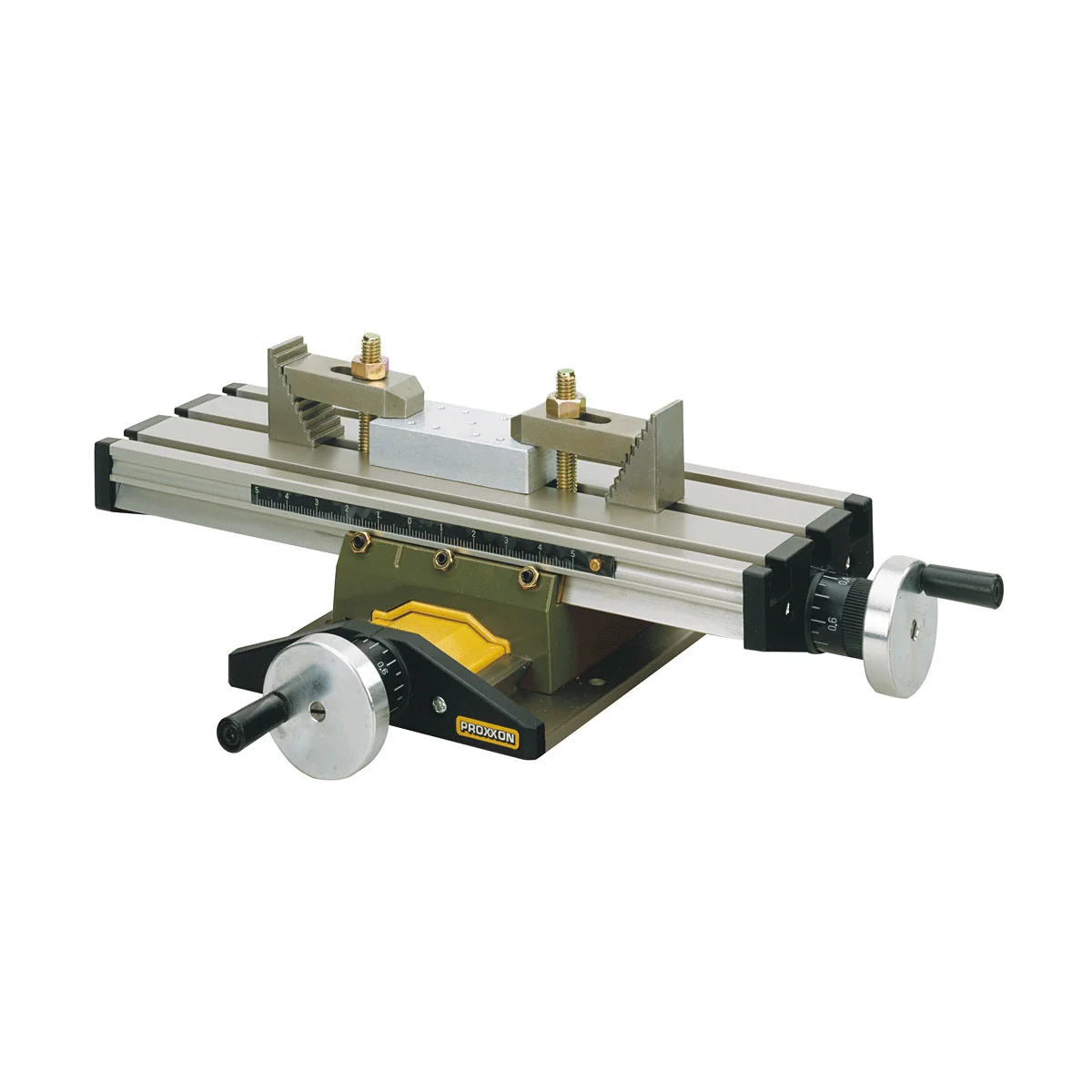

KT70 - Micro coordinate table for MB 140/S and TBM 220 with Proxxon flanges and fixings - 27100
The KT 70 table: small and precise. For MICROMOT supports and the TBM 220 bench drill.
KT70 - Micro coordinate table for MB 140/S and TBM 220 with Proxxon flanges and fixings - 27100
The KT 70 table: small and precise. For MICROMOT supports and the TBM 220 bench drill.
- Supplied with 2 notched clamping brackets.
- Table (200 x 70 mm) with three longitudinal T-grooves.
- Adjustable vernier dials (1 turn = 1 mm, 1 graduation = 0.05 mm advance).
- Sliding ruler for easy positioning.
KT 70 MICRO-coordinate table
Made of highly tensile aluminum (densified surface) with adjustable dovetail slides.
Three longitudinal T-slots (MICROMOT standard 12 x 6 x 5 mm). Sliding scale for easy transverse positioning of the carriage. Knobs with repositionable vernier scale: 1 turn = 1 mm, 1 graduation = 0.05 mm advance. Supplied with clamps and mounting hardware for the MB 140/S, MB 200, and TBM 220.
Other technical data:
Table 200 x 70 mm.
X adjustment (longitudinal) 134 mm, Y adjustment (depth) 46 mm, height 43 mm.
Noticed :
The KT 70 MICRO-coordinate table is now also available in a KT 70/CNC-ready version ready for CNC (with two stepper motors for the X (horizontal) and Y (length) axes).
Serrated steel clamping flanges - NO 24256
These clamps are supplied with the KT 70 set, but are also available separately. They include two notched shims, two clamps, threaded rods with nuts, and T-slot slides, conforming to the MICROMOT standard. Suitable for workpieces up to 20 mm thick.
Partial module for MICRO-milling cutter MF 70 and MICRO-coordinate table KT 70 -
NO 24264
For machining circular workpieces, drilling and milling offsets on the radial axis, and surface milling of keys, square and hexagonal profiles, etc. Precise scale to the nearest degree thanks to the vernier scale mounted on the base. Clamping chuck with reversible jaws: internal clamping range from 1.5 to 32 mm, external from 12 to 65 mm. Chuck bore 11 mm (for machining long shafts in a vertical position). With mounting holes for horizontal and vertical mounting, as well as suitable slides and mounting screws for mounting on the MICRO-mill MF 70 and the MICRO-coordinate table KT 70. Dimensions: 72 x 64 x 38 mm. In a wooden case with a sliding lid.
PRX-27100
Specific References
- EAN13
- 4006274271005
