MBS 240/E - Micro high-tensile band saw, maximum cutting length 85mm, 220x200mm table, Proxxon
€322.05
€339.00
Tax included
By buying this product you can collect up to 322 points. Your cart will total 322 points that can be converted into a voucher of €6.44.

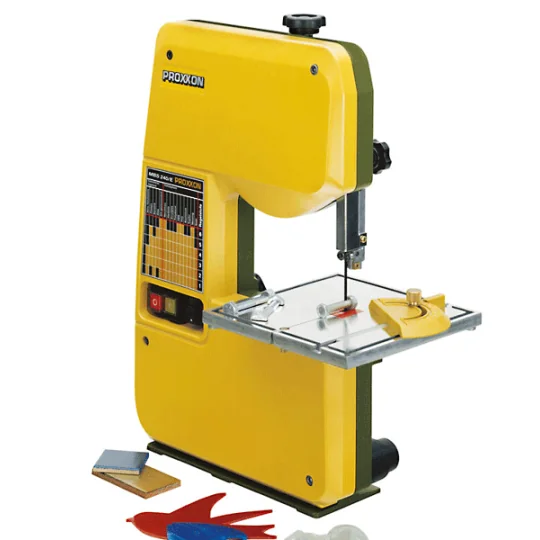

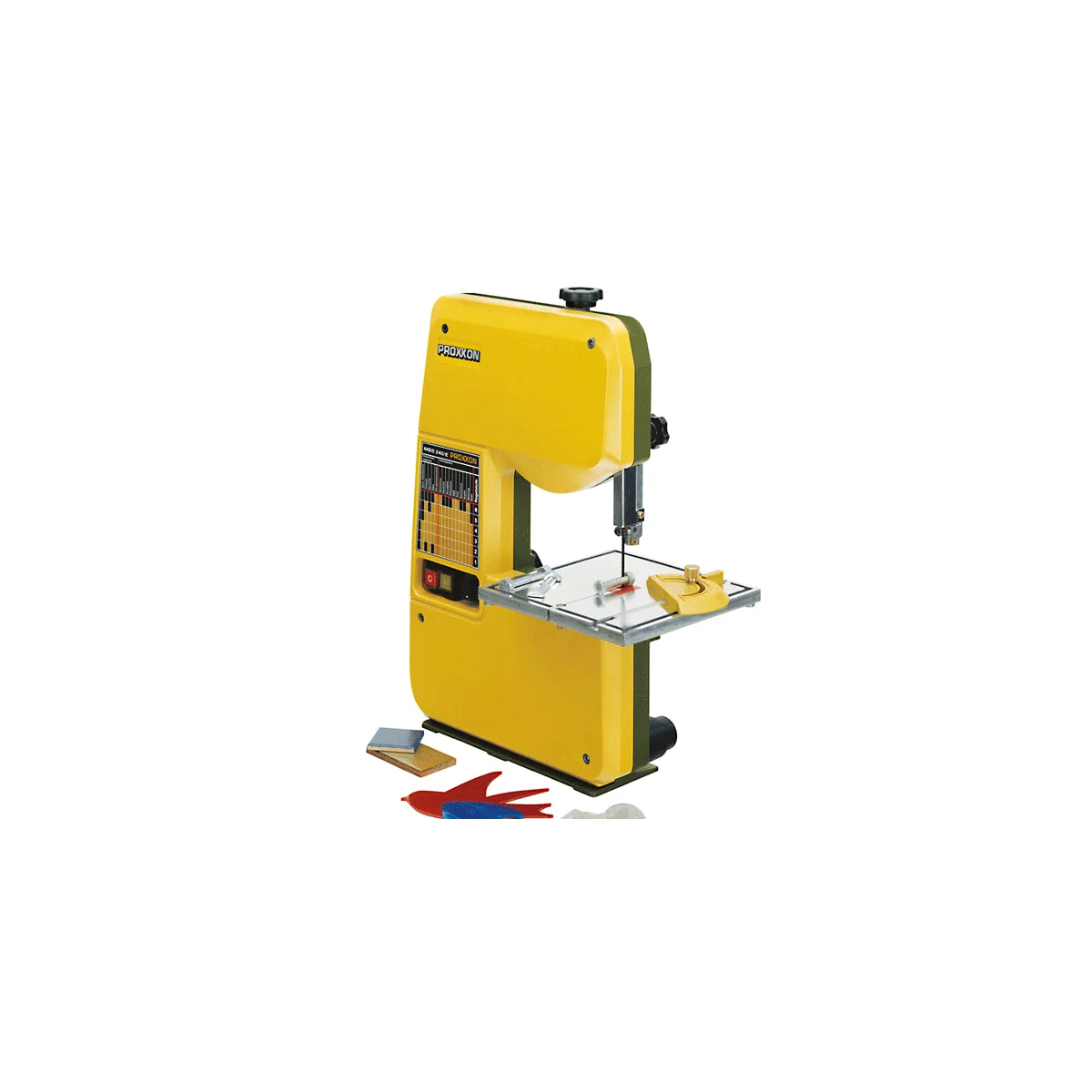

MBS 240/E - Micro band saw, maximum cutting diameter 85 mm, table 220 x 200 mm - 27172
Solid casing made of ribbed cast aluminum (construction neither of steel tubes nor of stamped sheets).
Solid casing made of ribbed cast aluminum (construction neither of steel tubes nor of stamped sheets).

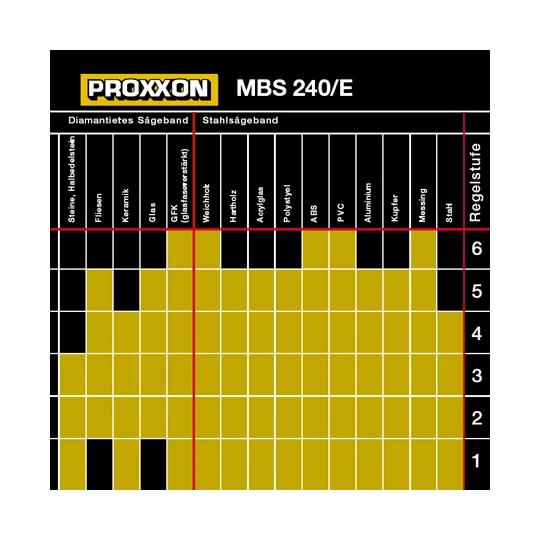

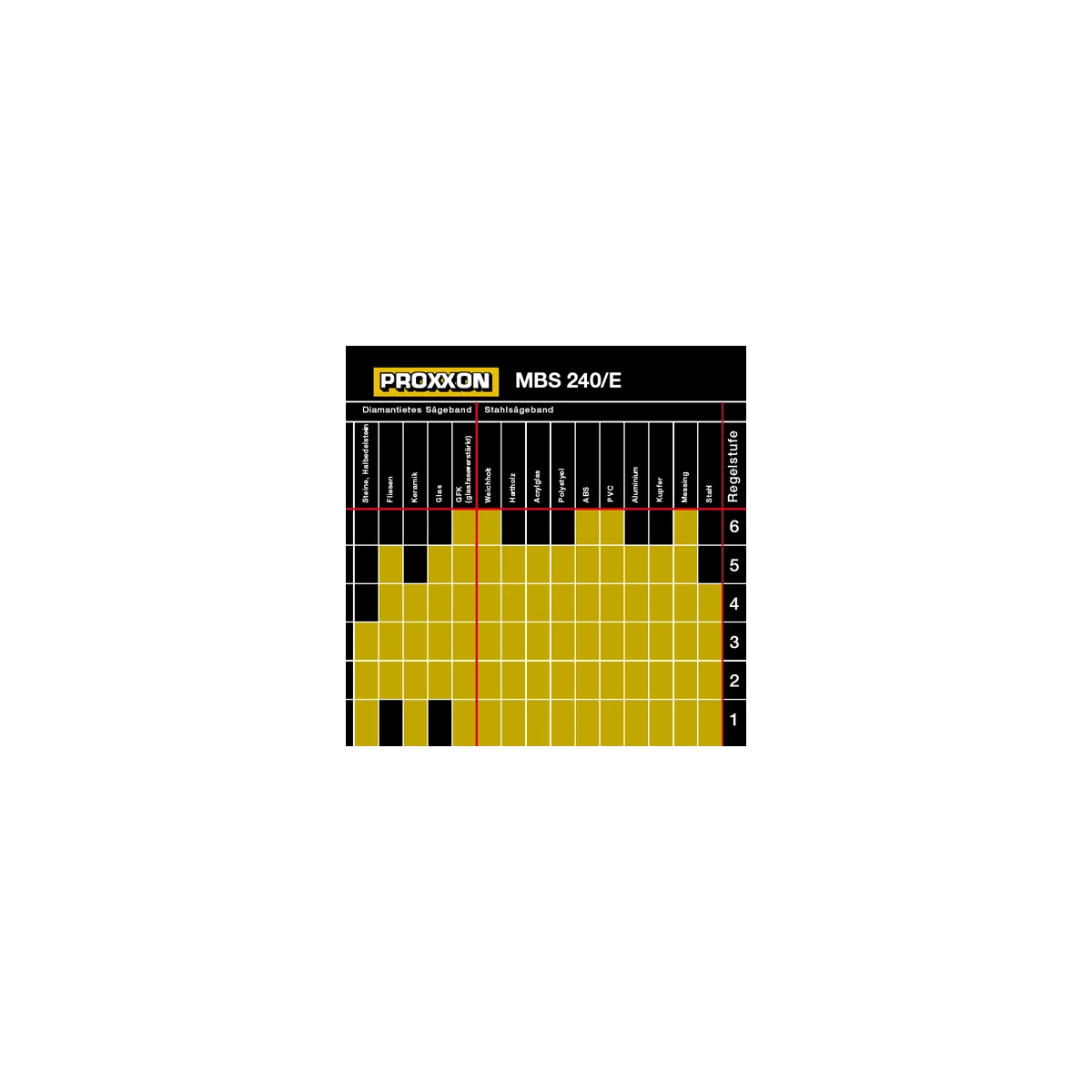

Aluminum pulleys with double bearings. Stable table with a flat milled work surface and a miter groove (table tilts to 45° for miter cuts). Blade guide mounted on 3 bearings with adjustable height. Adjustable for blades of different widths. Quiet 220-volt motor drive with Optibelt toothed belt (high quality and durable). Electronically adjustable speed for extremely clean cuts (no further finishing required). A clear chart illustrates the speeds for virtually all materials. The ideal blade size (5 x 0.4 mm) allows for small radius curves.
Technical data:
230 V. Adjustable band speed from 180 to 330 m/min (feedback effect). Clearance between blade and housing: 150 mm. Maximum height clearance: 80 mm. Work table: 200 x 200 mm (tiltable from 0° to 45°). Weight: Approximately 8 kg. A 1065 x 5 x 0.4 mm (14-tooth) saw band is included as standard equipment.
The MBS 240/E is equipped with a suction hose outlet. For clean work, we recommend using our CW-matic compact workshop vacuum cleaner.
Accessories for the MBS 240/E
Separate blade guide
NO 28 187
Standard band saw
Made of hardened Swedish steel. With fine teeth (24d). For steel and brass.
NO 28 174 1.065 x 5 x 0.4 mm
Likewise,
but with coarse teeth (14 d).
NO 28 176 1.065 x 5 x 0.4 mm
Extra-thin (3.5 mm) saw blade for narrow radii
Made of specially coated steel, with induction-hardened coarse teeth (14d). Particularly suitable for aluminum and plastics.
NO 28 180 1.065 x 3.5 x 0.5 mm
Bimetal saw band
The backing band is made of treated alloy steel, while the saw teeth are made of wear-resistant HSS. Variable tooth pitch: 10-14 teeth. Ideal for cutting all standard grades of steel, non-ferrous metals, and stainless steel.
NO 28 172 1.065 x 6 x 0.6 mm
- HSS Flat Wire
- Heat-treated alloy steel support strip
- Special welding process
Cutting saw band
Extremely thin (1.3 mm), for very tight bending radii. Transforms the MICRO MBS 240/E bandsaw into a jigsaw. Made of high-performance special steel. Wavy and set teeth (10 teeth per inch). For all types of wood, plastics, and non-ferrous metals.
NO 28 182 1.065 x 1.3 x 0.44 mm
Diamond saw band
For cutting stone, ceramics, glass, or fiberglass. Only proper cooling of the diamond blade ensures optimal cutting of glass or ceramics and extends the blade's lifespan. We recommend using a brush for this.
NO 28 186 1.065 x 3 x 0.3 mm
Hardened spring steel saw band (toothless)
For cutting foam, plastic, rubber, leather, paper and cardboard.
NO 28 184 1.065 x 6 x 0.4 mm
