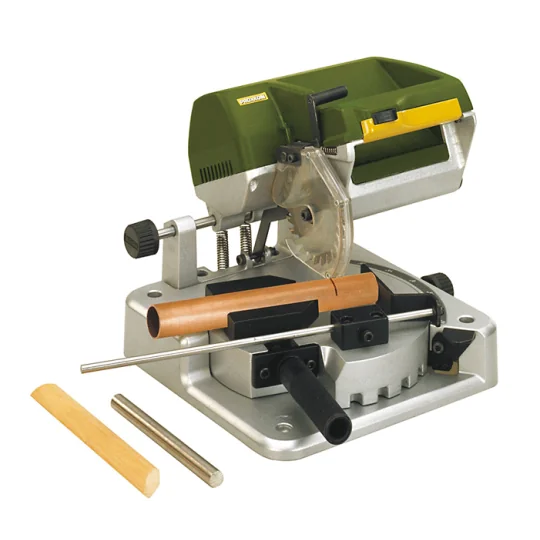

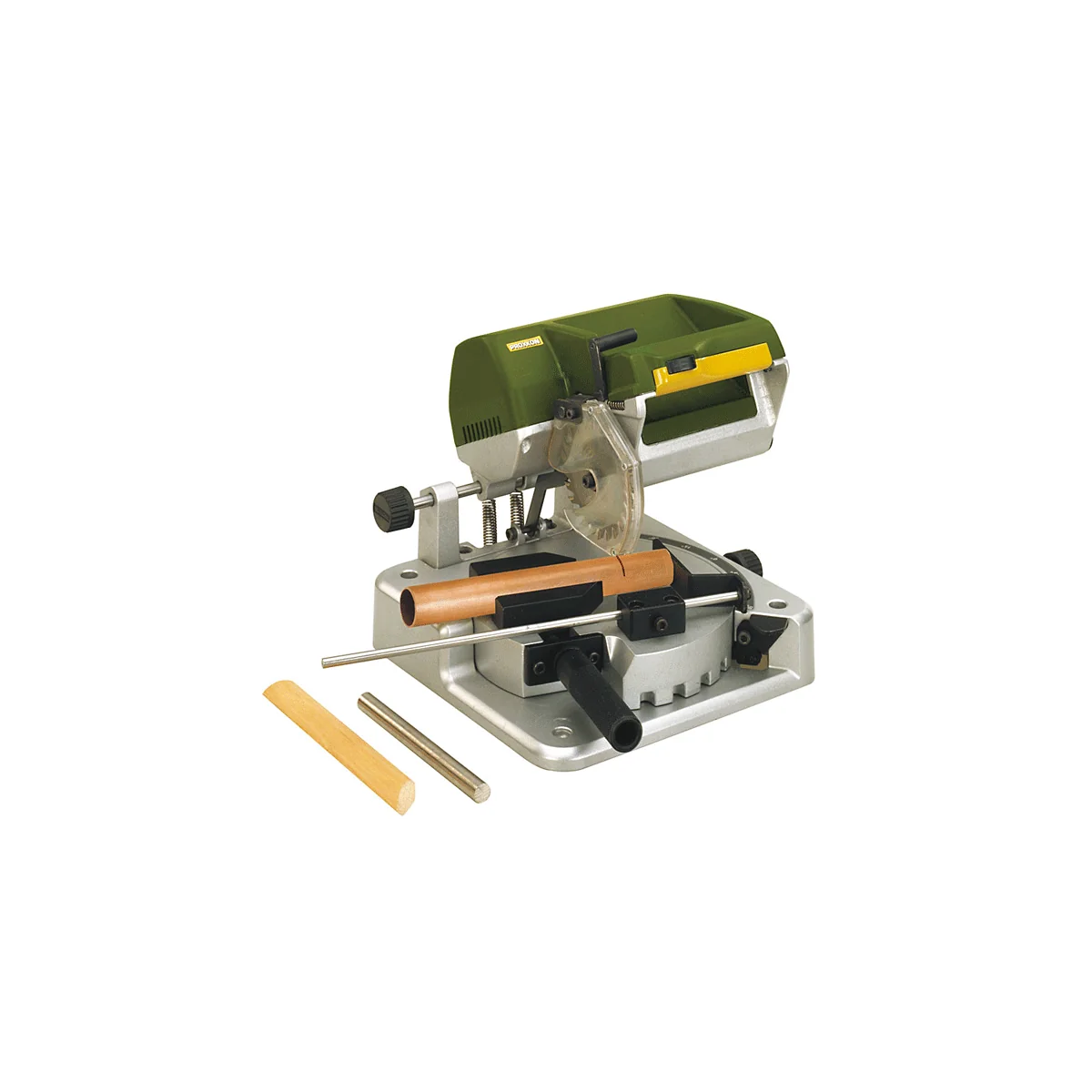

KGS 80 - 2-45° Mitre Saw, 4000 rpm, Proxxon
€236.55
€249.00
Tax included
By buying this product you can collect up to 236 points. Your cart will total 236 points that can be converted into a voucher of €4.72.
KG 80 - 2-45° Mitre Saw 4000 rpm Proxxon - 27160
The advantage for miter cuts: the adjustment is not made on the saw head but at the level of the round table (with the workpiece fixed)!
- Lateral adjustment of the saw head for positioning the blade as close as possible to the vise, which allows for vibration-free cutting and a clean cut!
- With longitudinal stop (max. length 300 mm).
- Ergonomic handle with integrated switch and saw head release control.
- Swivel table made of cast aluminum. Bilateral clamping, gradually orientable up to 45°. Locking at 15° angles.
- Integrated clamping device with central vise. V-groove (for round parts). Front groove for securing small parts.
The advantage for miter cuts: the adjustment is not made on the saw head but at the level of the round table (with the workpiece fixed)!
The longitudinal stop allows, by rotating the table in opposite directions (2 x 45°), for creating a contra-angle cut for a second piece of the same length simply by tilting it. Powerful and very quiet DC motor. Power transmission via a toothed, vibration-damping belt. Includes a hard metal saw blade for non-ferrous metals, wood, and plastics (80 x 1.6 x 10 mm, 36 diameter).
Other technical specifications:
230 V. 200 W. 50/60 Hz. 6,000 rpm. Base with a highly resistant, die-cast aluminum round table and guides and adjustments machined by CNC. Table 230 x 230 mm. Weight 6 kg. Cutting capacity, see table.
90° cutting capacity (right angle cut):
| Maximum thickness (in mm) | Maximum width (in mm) | Round pieces (in mm) |
| 10 18 21 25 | 65 50 40 25 | max. Ø 25 |
Cutting capacity at 45° (miter cut):
| Maximum thickness (in mm) | Maximum width (in mm) | Round pieces (in mm) |
| 5 10 15 20 | 36 30 25 18 | max. Ø 20 |
Reinforced cutting disc.
Bonded, break-resistant corundum. For cutting alloy and non-alloy steels, stainless steels, and non-ferrous metals. Also suitable for wood and plastics.
NO 28 729 80 x 1 x 10 mm
Carbide circular saw blades with carbide inserts (36 d).
Extremely clean cut thanks to the high number of teeth when cutting balsa, plywood and softwoods, and fiberglass sheets. Also suitable for cutting hardwoods, polycarbonate, plastics and aluminum. Also for FET table saws.
NO 28 732 80 x 1.6 x 10 mm
PRX-27160
Specific References
- EAN13
- 4006274271609
