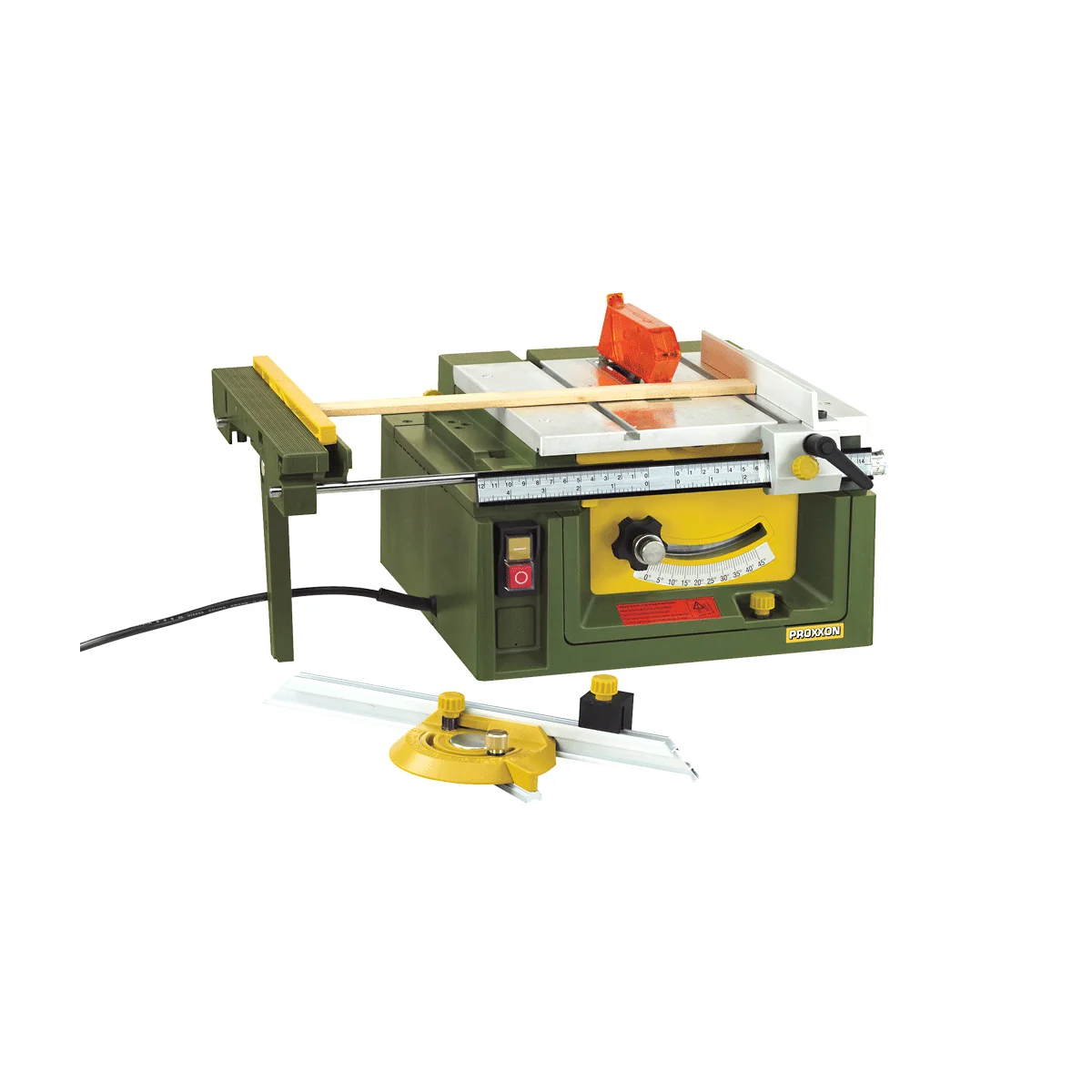

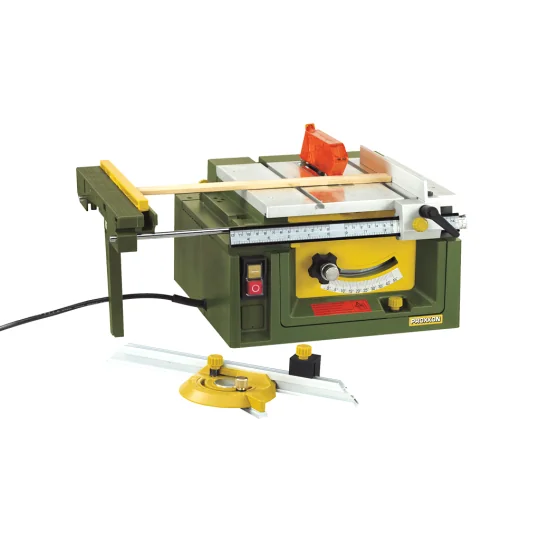

FET - Proxxon Precision Benchtop Circular Saw
€419.00
Tax included
By buying this product you can collect up to
419
points.
Your cart will total 419
points that can be converted into a voucher of
€8.38.
FET - Proxxon Precision Cutting Table Circular Saw - 27070
For precision mechanics, model making, mold building, toy manufacturing, architecture, woodworking and interior design. For cutting wood, non-ferrous metals, plastics, plexiglass, fiberglass sheets, foam and many other materials.
Order now and receive it...
between 23 Mar and 26 Mar with Colissimo Points de retrait Free!
between 23 Mar and 26 Mar with Colissimo Domicile Free!
between 23 Mar and 26 Mar with DPD Livraison en relais Pickup Free!
between 23 Mar and 26 Mar with DPD Livraison à domicile Predict Free!
between today and 26 Mar with Magasin Next Model RC / Univers Train Free!
- Telescopic platform with integrated auxiliary stop.
- Adjustment screw for fine adjustment to 1/10 mm of the longitudinal stop.
- Angular stop with aluminium stop bar and movable end stop for making parts of the same length with the same angle.
With adjustment screw for fine adjustment of the longitudinal stop to 1/10 mm. Height-adjustable saw blade, tiltable to 45° with carbide saw blade.
For precision mechanics, model making, mold building, toy manufacturing, architecture, woodworking and interior design. For cutting wood, non-ferrous metals, plastics, plexiglass, fiberglass sheets, foam and many other materials.

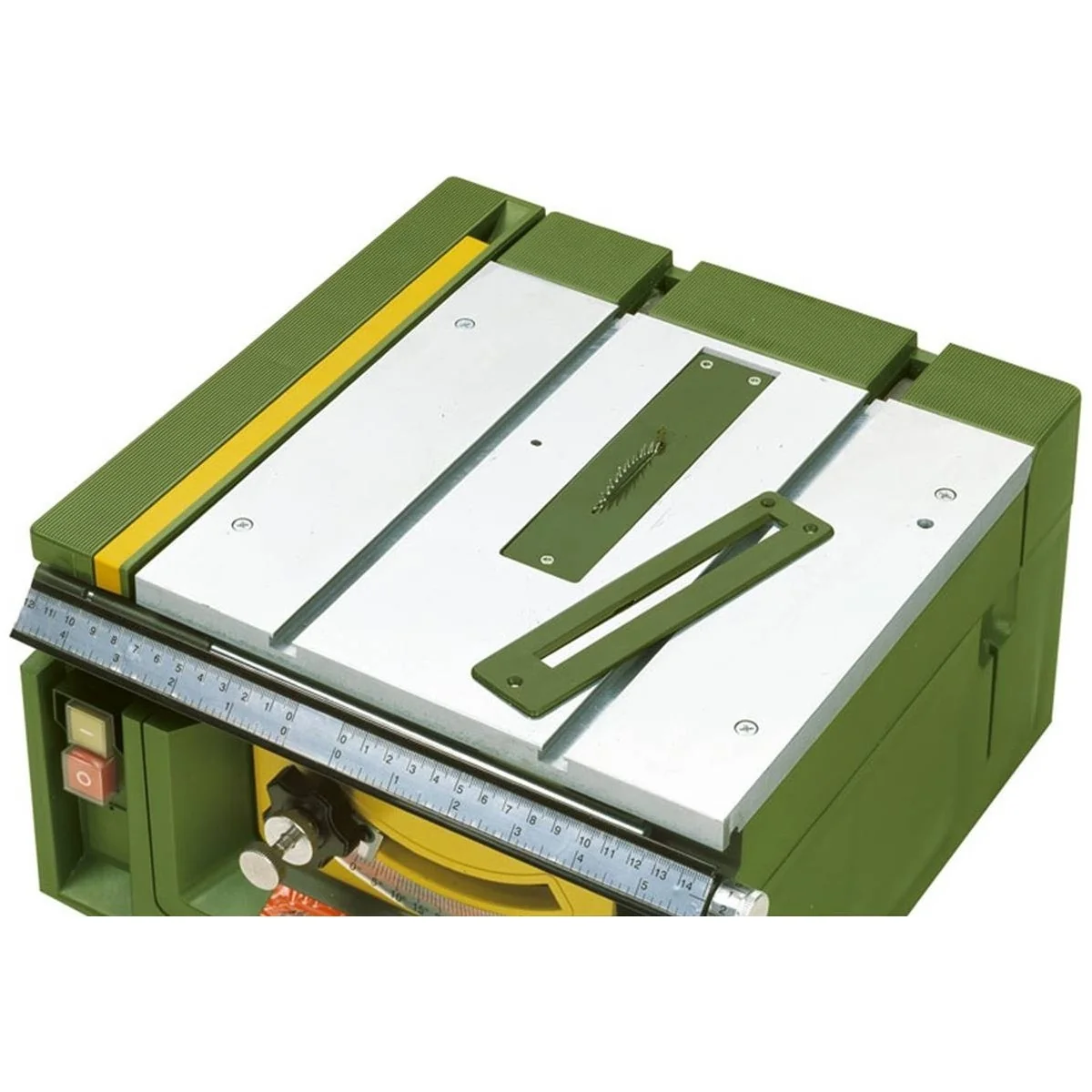

Solid construction with load-bearing elements and a flat, milled cast aluminum worktable. The robust, precision-adjustable rip fence offers decisive advantages: after initial rough setup, dimensions can be corrected with adjustment screws to an accuracy of less than 1/10th of a millimeter. The height-adjustable saw blade, which pivots 45°, allows for double mitre cuts in conjunction with the angle stop.
Quiet drive via a special DC motor and Optibelt toothed belt. Saw blade shaft mounted on ball bearings. Equipped with an 80 x 1.6 x 10 mm (36 d) carbide saw blade. Also includes: a push rod and a solid ABS cover for the saw blade passage, ensuring tight tolerances between the saw blade and the table.
Non-slit ABS cover for the saw blade passage, designed for tight tolerances between the saw blade and table (the saw blade is slotted underneath). For cutting small workpieces

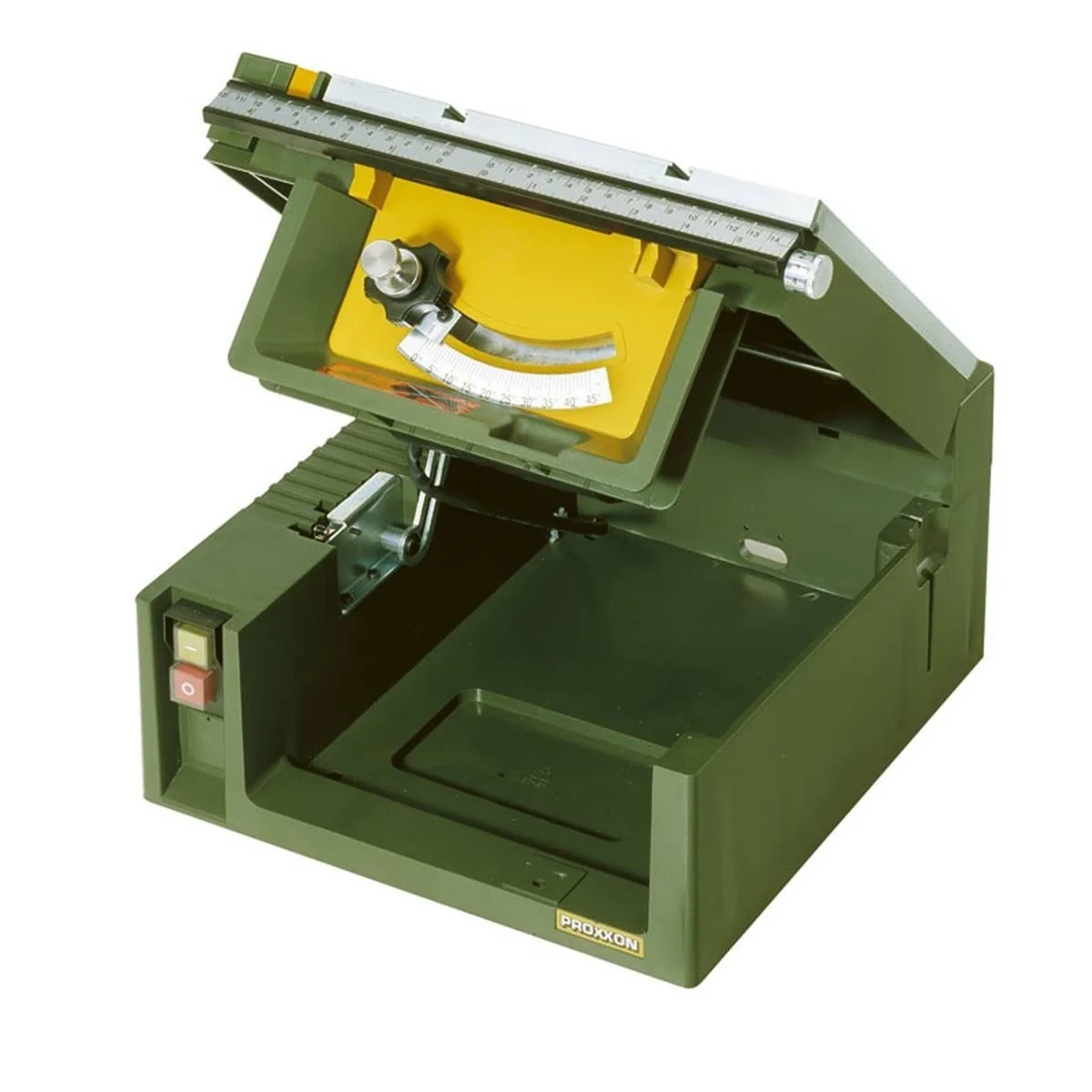

The table and drive unit can be tilted upwards and locked in place like a motor cover. This allows for easy cleaning of the machine and quick blade changes.
Technical specifications:
230 V. 7,000 rpm. Infinitely variable mitre angle adjustment up to 45°. Table dimensions 300 x 300 mm. Cutting depth 1–22 mm. Accepts saw blades from 50–85 mm (with a 10 mm center bore). Weight approx. 6 kg.
Saw blades for the FET (optional)
High-alloy special steel (HSS)
Ø 80 x 1.1 x 10 mm, 250 D. Non-ferrous metal, soft and hard wood, chipboard, plastic, GFK, CFK and composite plates.
NO 28 730
Supercut
Ø 85 x 0.5 x 10 mm. 80 teeth, hardwood, softwood, plastic.
NO 28 731
Carbide-reinforced metal
Ø 80 x 1.6 x 10 mm, 36 teeth. Balsa, plywood, soft and hard wood, polycarbonate, plastic, non-ferrous metals, and fiberglass plates.
NO 28 732
Diamond
Ø 85 x 0.7 x 10 mm. "D 100" coating. Ceramic, porcelain, tile, stone, GRP, CFRP and epoxy printed circuit boards.
NO 28 735
PRX-27070
Specific References
- EAN13
- 4006274270701
