Proxxon MP 400 230V Micro Spindle Top - 29020

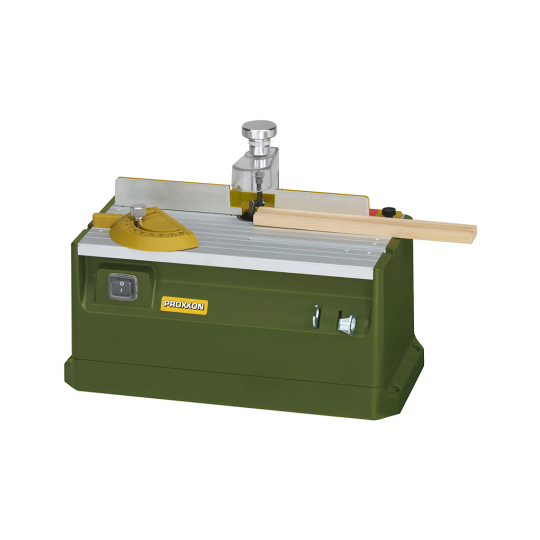

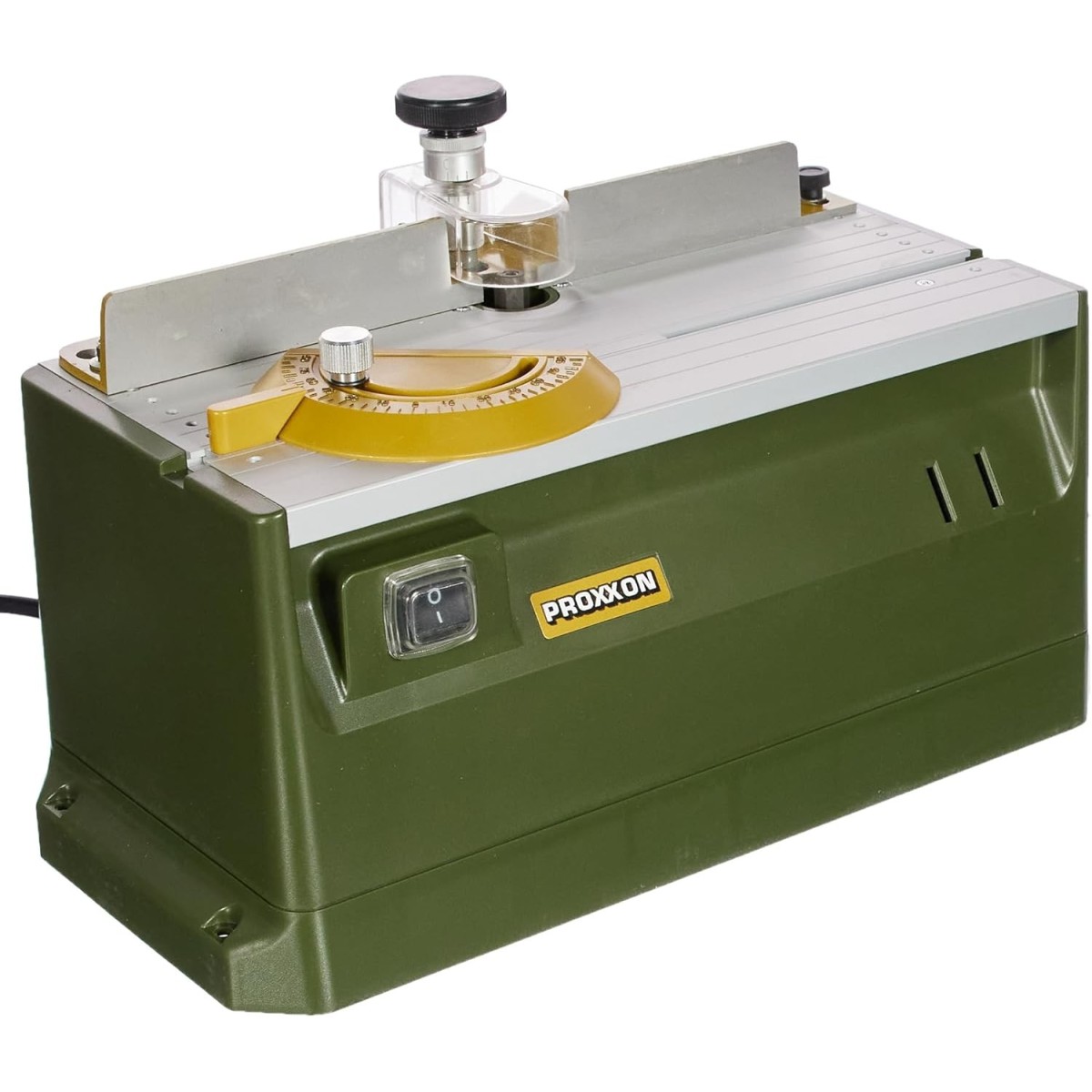

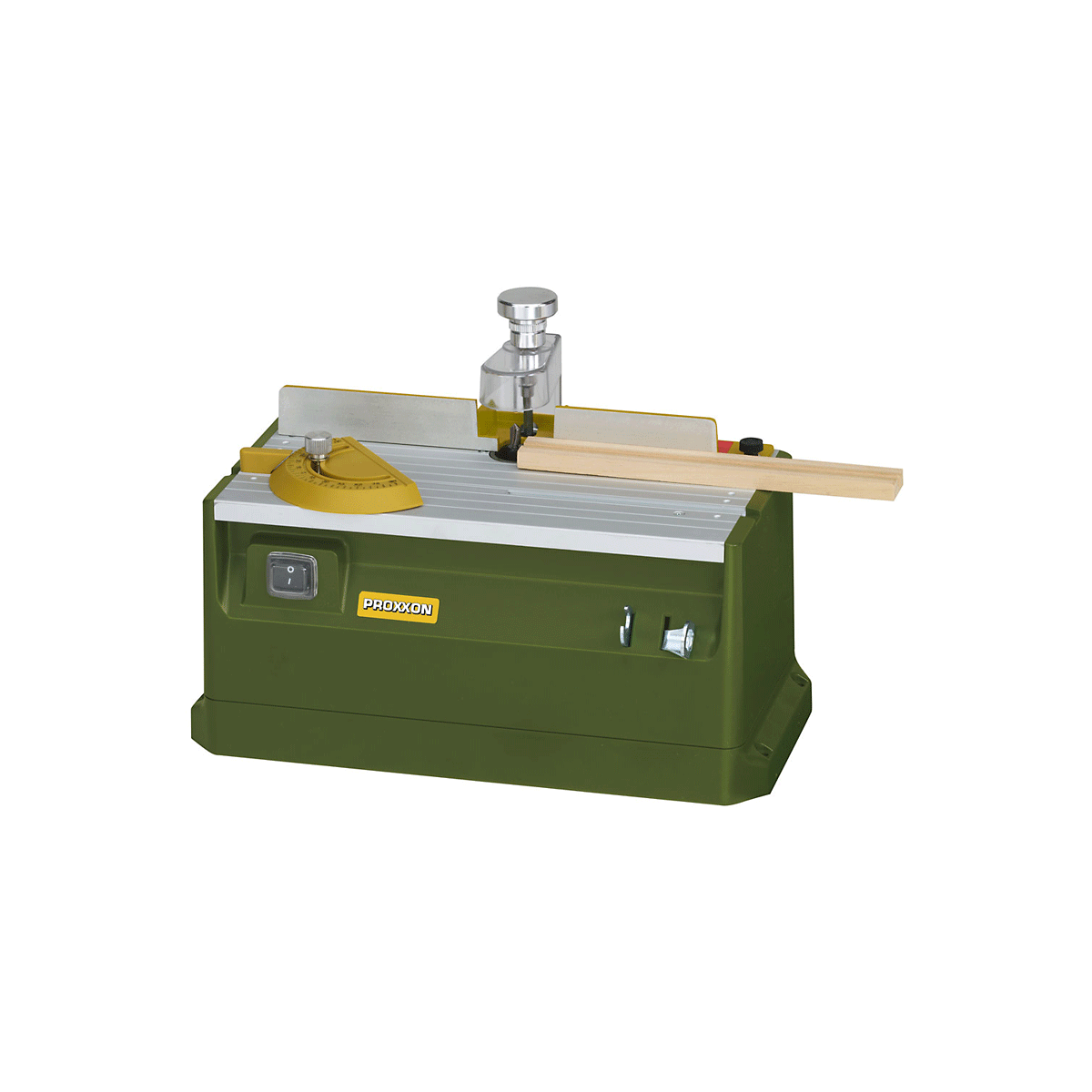

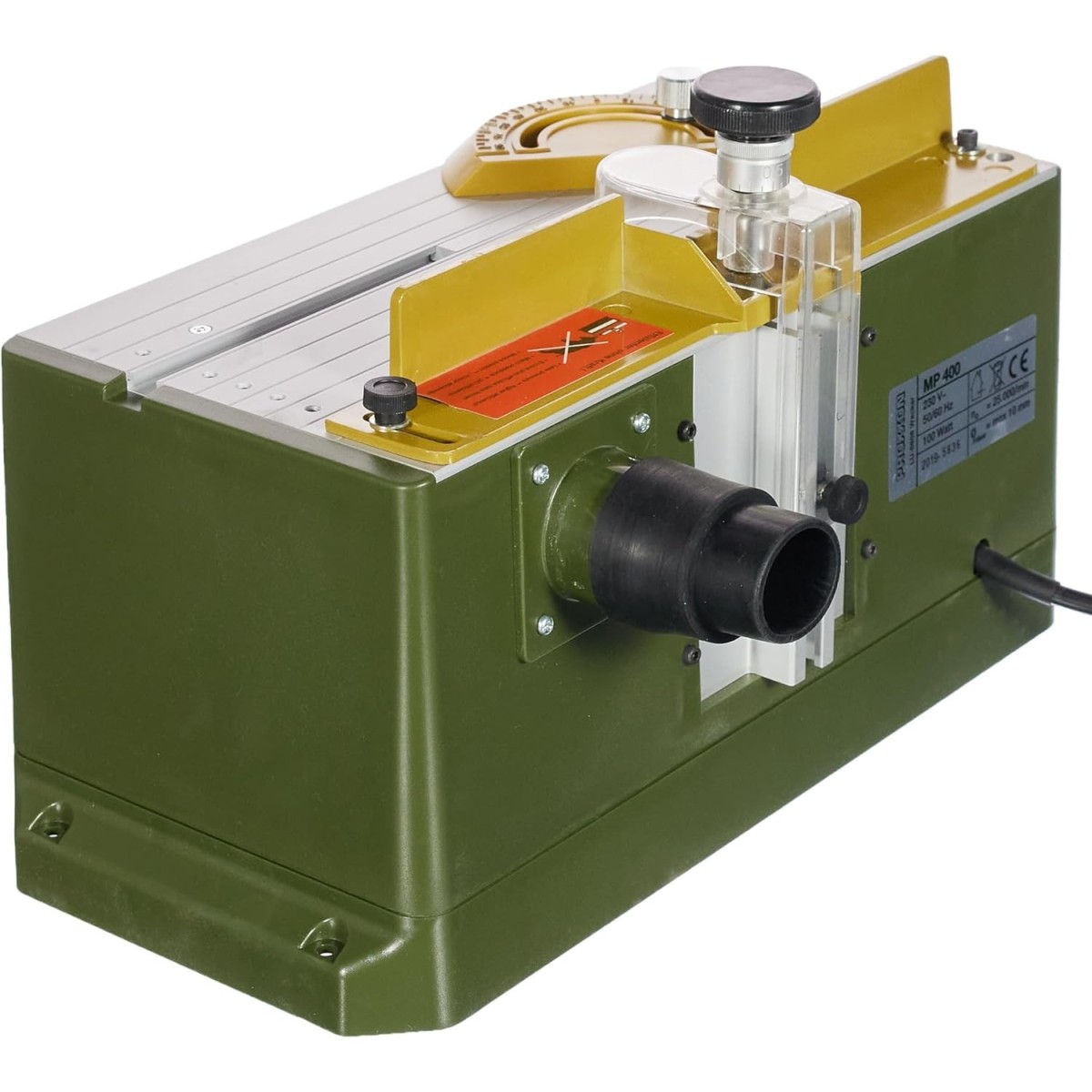

The Proxxon MP 400 micro router , reference 27050 , is a precision benchtop tool designed for edge work, profiles, and longitudinal cuts in wood, fiberboard, and suitable plastics. Powered by 230V, it is particularly well-suited for model making, frame construction, and machining small parts requiring grooves, chamfers, rabbets, or regular profiles.

In a model-making or RC model-making workshop, a router allows for the precise shaping of wooden or plastic components: doors, shutters, body parts, panels, enclosures, or decorative elements. Milling involves removing material using a rotating cutter; the choice of cutter profile then determines the resulting shape on the edge or surface of the part.

The MP 400 is equipped with a 100W dust-protected motor and a toothed belt drive. Its double ball-bearing shaft contributes to the tool's stability during milling operations. The rotation speed reaches 25,000 rpm , a speed suitable for working with small milling cutters on the intended materials.

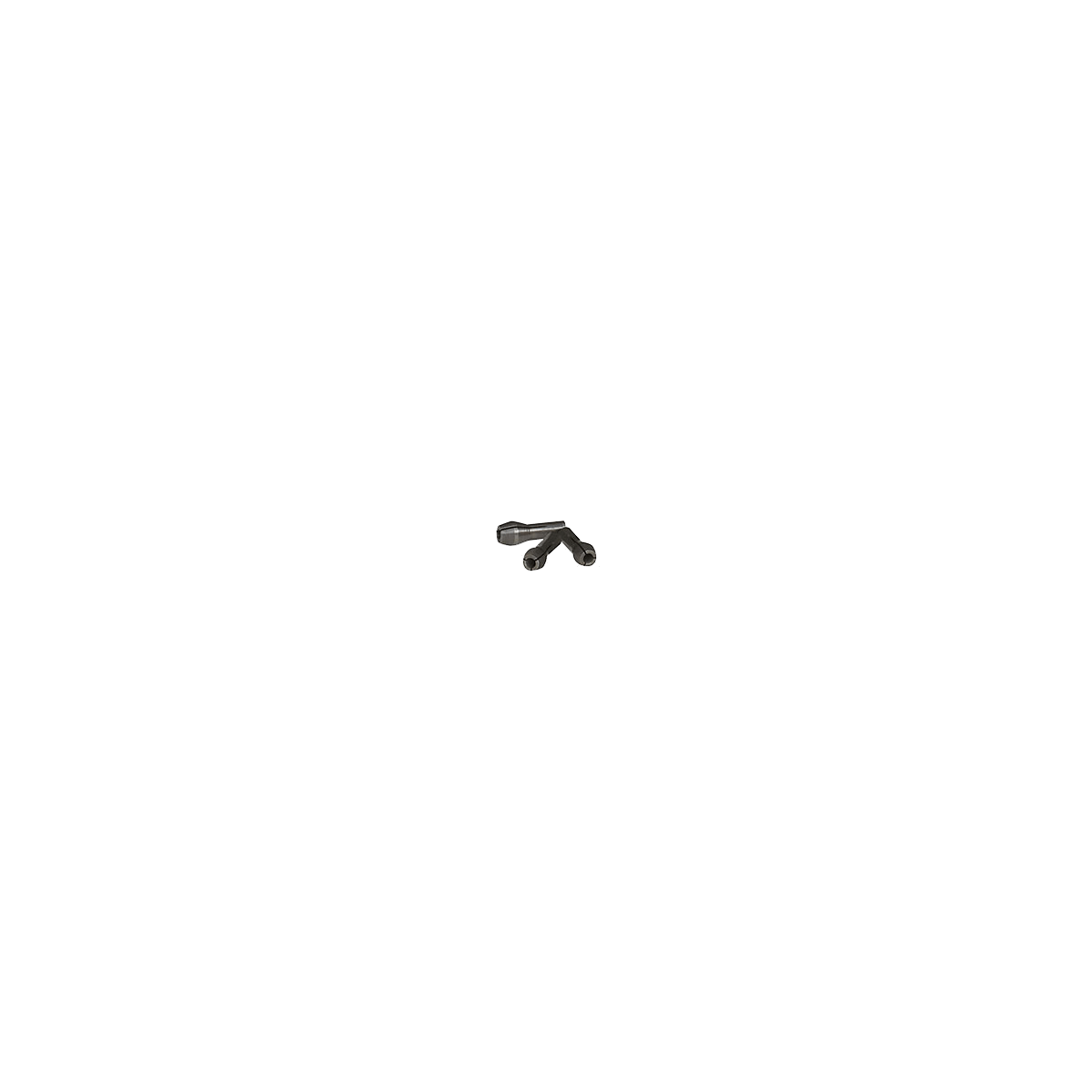

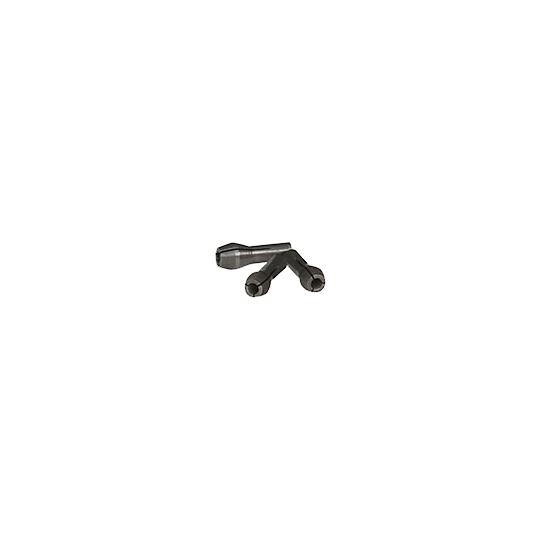

The tool holder accommodates precision triple-slotted collets. Three collets are provided, for tool shanks of 2.4 mm, 3 mm, and 3.2 mm . This configuration allows the use of end mills corresponding to these shank diameters. The cutter height is adjusted via a knurled knob with a zero-adjustable graduated ring: one revolution corresponds to 1 mm and one graduation to 0.05 mm . This adjustment facilitates incremental adjustments when creating grooves, slots, and profiles.

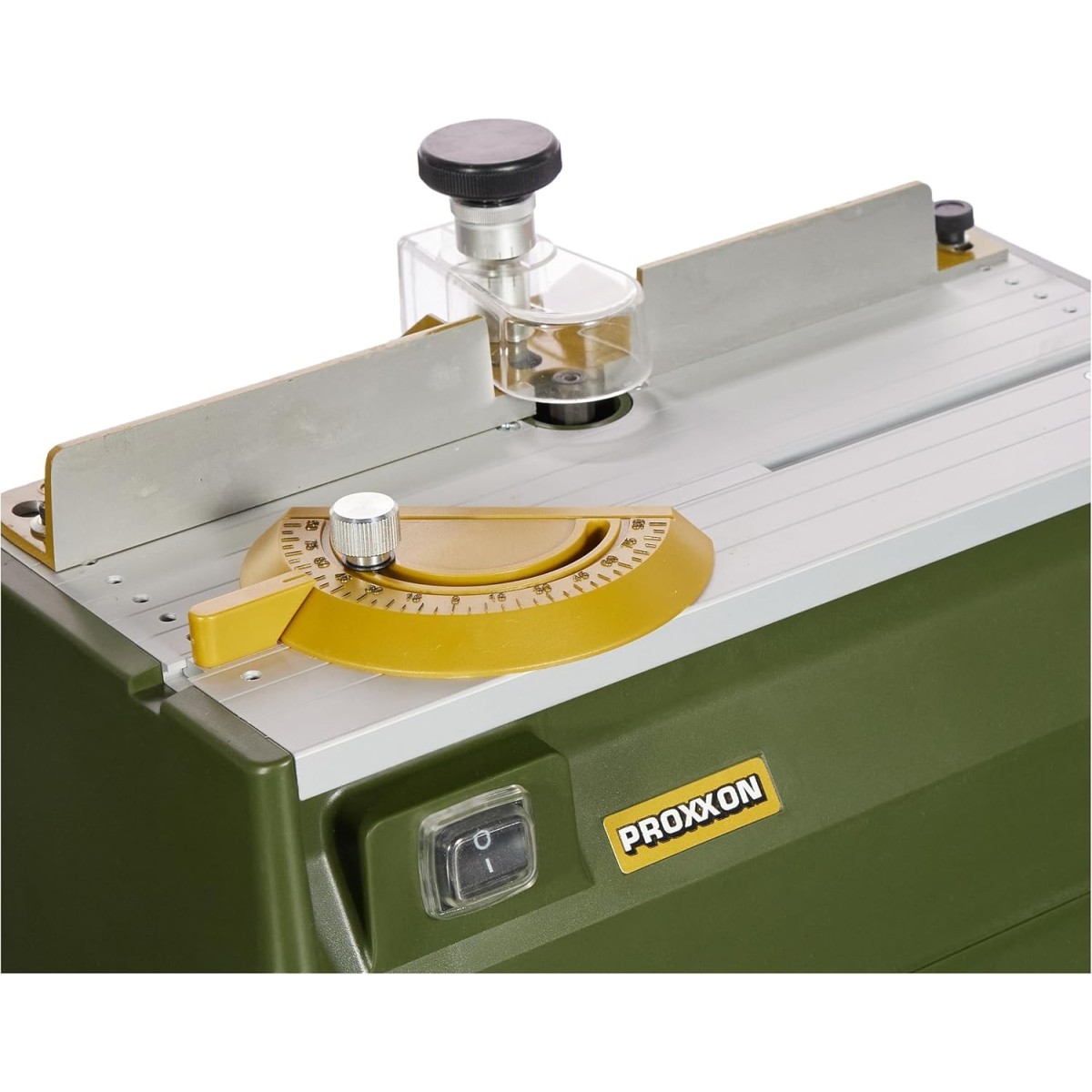

The aluminum milling table measures 300 x 150 mm . It features a longitudinal stop, an angular stop, a cutter guard, and a clamp. These features guide the workpiece during machining and allow for more consistent, repetitive operations.

An integrated dust extraction port is included, along with an adapter for a standard household vacuum cleaner. Dust extraction helps maintain a cleaner work area when machining wood, fiberboard, or suitable plastics.

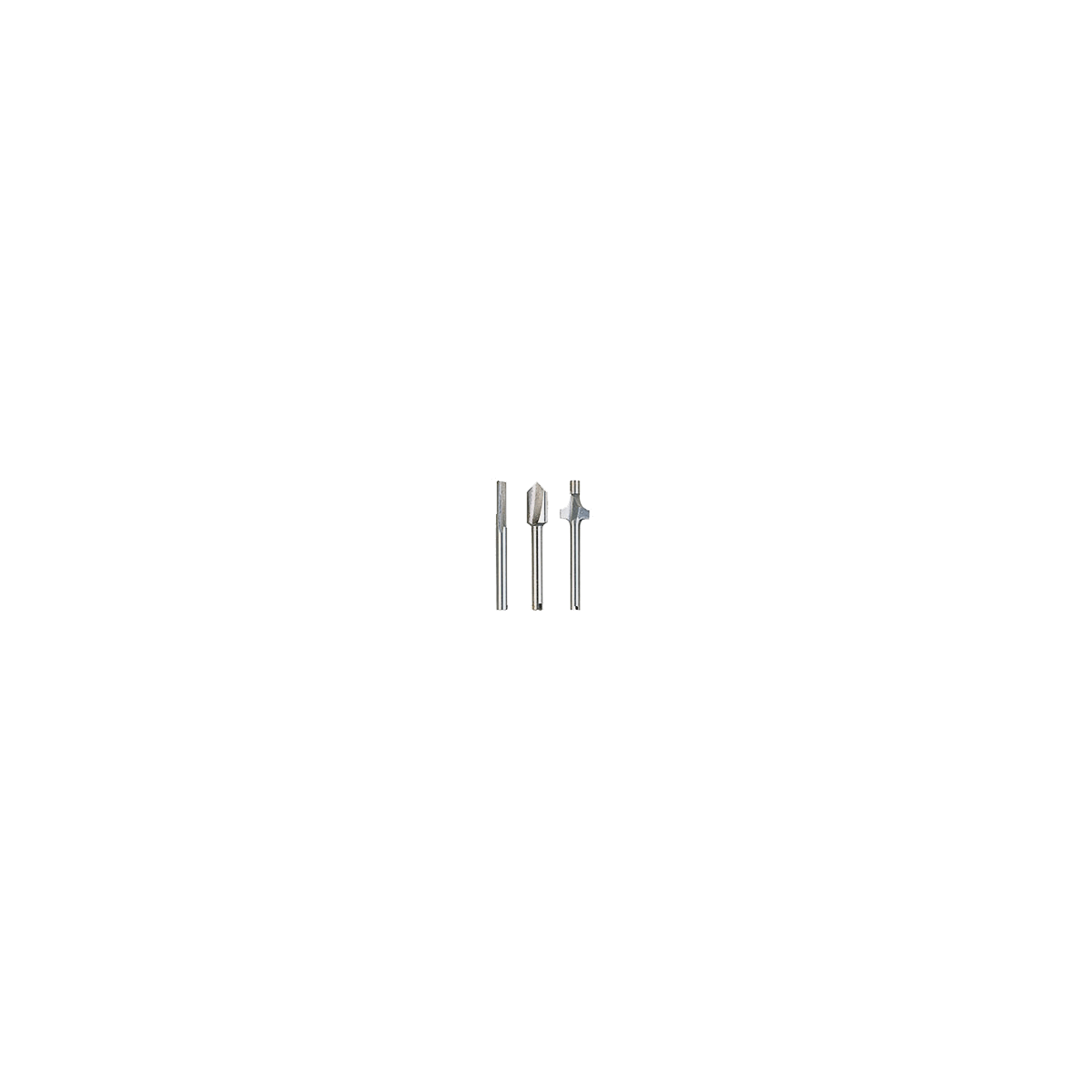

The micro router comes with three HSS profiling bits for wood: a 3.2 mm diameter groove cutter, a V-groove cutter, and a quarter-round cutter. HSS, or high-speed steel, is commonly used for cutting tools. These three profiles already allow for grooving, V-grooving, and edge rounding operations.

With its compact size and weight of approximately 2 kg, the Proxxon MP 400 is ideal for model-making, static model building, and small parts manufacturing workshops. It is designed for profiling, milling, chamfering, cutting, and sawing operations suitable for compatible materials.

Technical specifications:

• Brand: Proxxon
• Reference: 27050
• Type: micro benchtop router
• Power supply: 230 V
• Power: 100 W
• Frequency: 50/60 Hz
• Rotation speed: 25,000 rpm
• Milling table: 300 x 150 mm
• Height adjustment: 1 turn = 1 mm; 1 graduation = 0.05 mm
• Included pliers: 2.4 mm, 3 mm and 3.2 mm
• HSS cutters included: 3.2 mm diameter groove cutter, V-groove cutter and quarter-round cutter

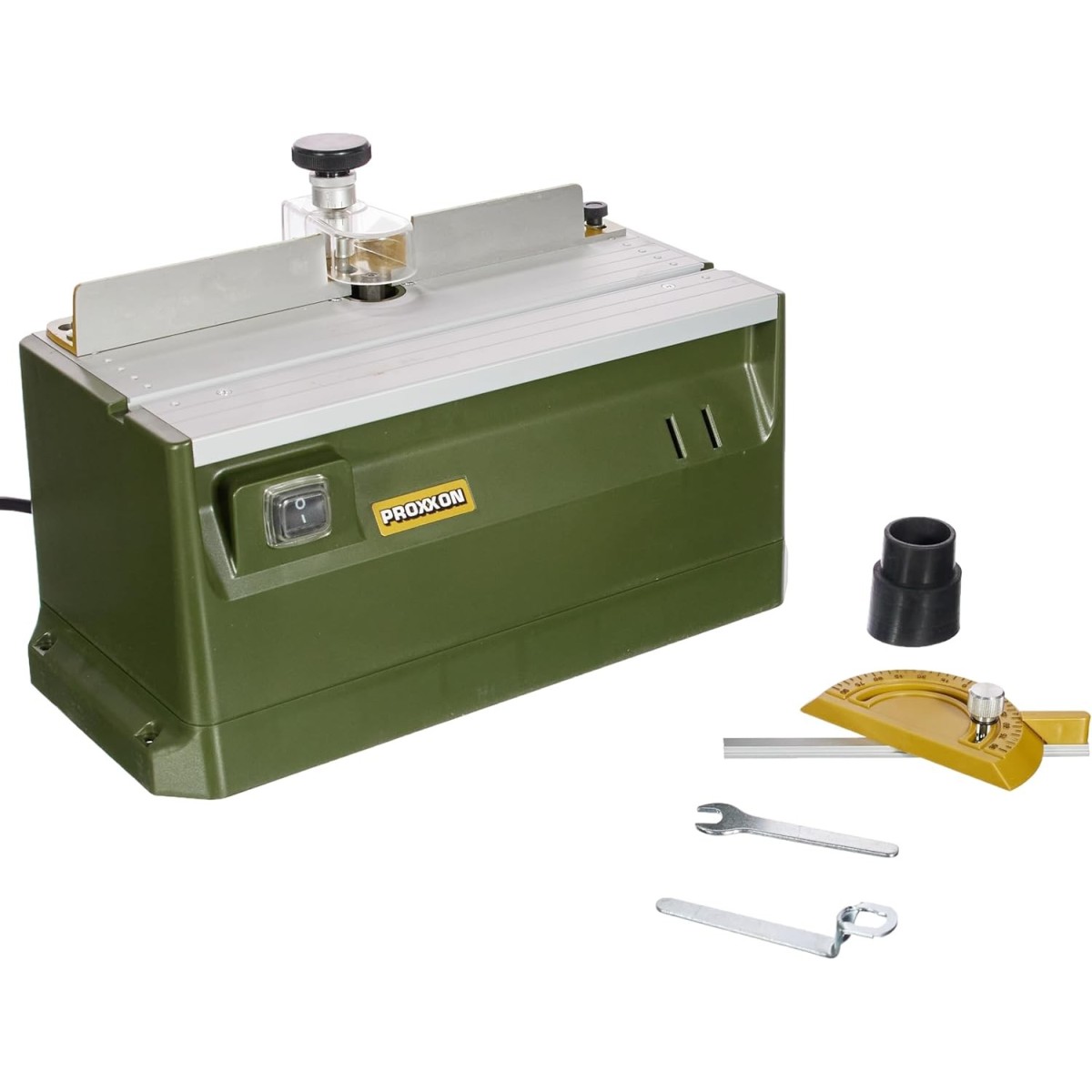

• Equipment: longitudinal stop, angular stop, cutter guard, flat clamp and dust extraction port with adapter
• Weight: approximately 2 kg

Recommended accessories ref 29020:

HSS wood profiling cutter set, 10 pieces
For wood and fiberboard. Clean relief for good results and a good surface finish. High stability. 3.2 mm axles.

Contains 1 strawberry of each type offered:
1 groove cutter Ø 3.2 mm,
1 grooving cutter Ø 4.8 mm,
1 groove cutter Ø 6.5 mm,
1 groove cutter Ø 6.4 mm,
1 V-grooving cutter Ø 6.5 mm,
1 quarter round cutters 6.5/2.5 mm,
1 quarter-round cutter R 3.2 mm,
1 rabbeting cutter, 6.4 mm
1 quarter-round router bit, 5 mm
1 angle cutter 45.

Carefully stored in a wooden box.
