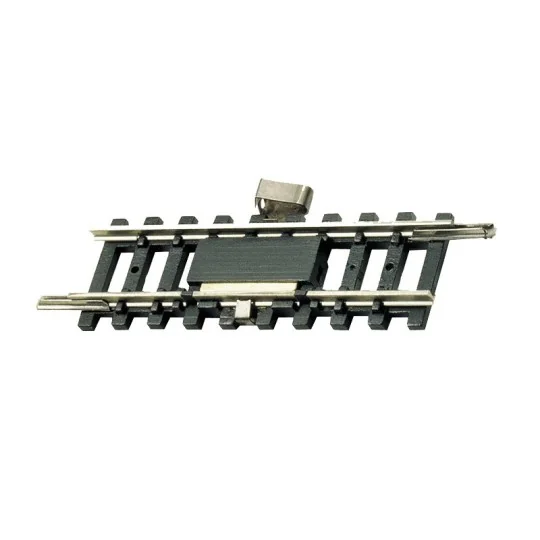

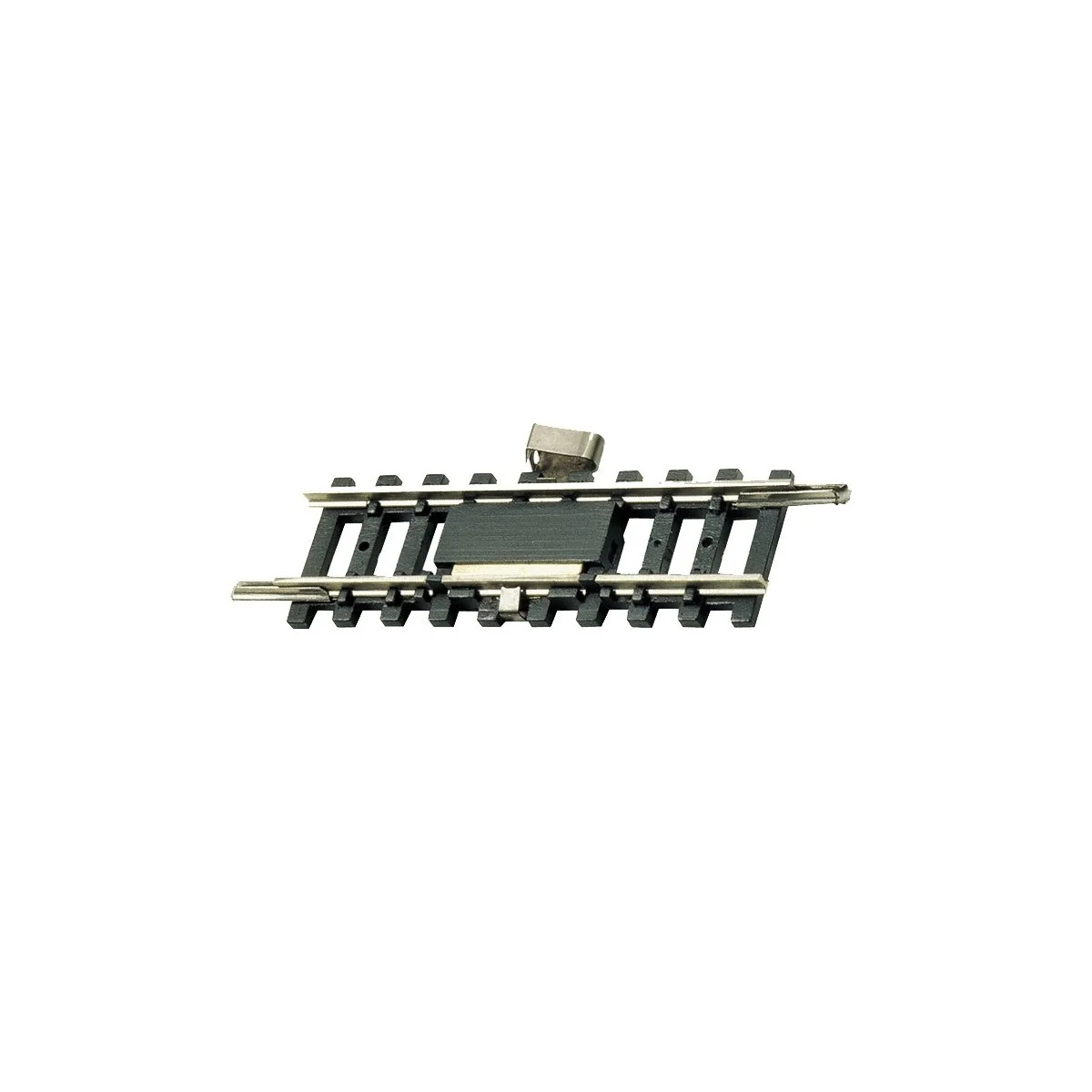

MiniTrix 14979 Contact rail 50mm
€8.10
Tax included
By buying this product you can collect up to
8
points.
Your cart will total 8
points that can be converted into a voucher of
€0.16.
Order now and receive it...
between 11 Apr and 15 Apr with Colissimo Points de retrait €7.90
between 11 Apr and 15 Apr with Colissimo Domicile €8.90
between 11 Apr and 15 Apr with DPD Livraison en relais Pickup €7.90
between 11 Apr and 15 Apr with DPD Livraison à domicile Predict €8.90
between 11 Apr and 15 Apr with Lettre suivi (sans assurance) €5.00
between today and 15 Apr with Magasin Next Model RC / Univers Train Free!
Characteristic :
Brand: MiniTrix
Ref: 14979
Scale: N - 1/160
For triggering automatic functions by the train, reliable contact thanks to the double contact system.
The switching operation will only be triggered by at least two electrically connected metal wheels and not by insulated wheels or plastic wheels.
Length: 50 mm (corresponds to 14907).
Further explanation:
The electrical connection of the wheels is not axial, but longitudinal; that is, at least two axles are connected, as in a bogie (or a locomotive with multiple wheels). The small section of "contact track" is insulated on the left and right. When a wheel from the main track enters the contact track, it momentarily makes contact (short circuit), that is, it generates a pulse (with the voltage from the main track). You can use this to trigger something. Each incoming metal wheel will trigger a pulse (actually two pulses: one at the entry, one at the exit of the contact track).
