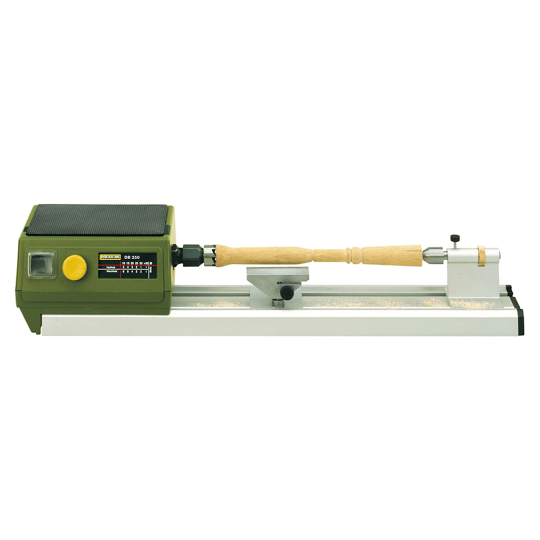

DB 250 - Micro-wood tower - Interpointe 250mm Proxxon - 27020

Particularly suitable for turning small rooms: for dollhouses (plates, cups, dishes, vases, columns) and model trains: electric pylons and lampposts, windows, cisterns. For the manufacture of toys, puppet members and dolls and for multiple applications in classic model making.

Order now and receive it...

between 25 Feb and 2 Mar  with  Colissimo Points de retrait €7.90

24 Feb  with  Pré-commande Free!

between 25 Feb and 2 Mar  with  Colissimo Domicile €8.90

between 25 Feb and 2 Mar  with  Livraison en relais Pickup €7.90

between 25 Feb and 2 Mar  with  Livraison à domicile Predict sur créneau horaire €8.90

Last items in stock

DB 250 - Micro-wood tower - Interpointe 250mm Proxxon - 27020

Especially suitable for turning small rooms: for dollhouses (plates, cups, dishes, vases, columns) and model trains: electric pylons and lampposts, windows, cisterns. For the manufacture of toys, puppet members and dolls and for multiple applications in classic model making.

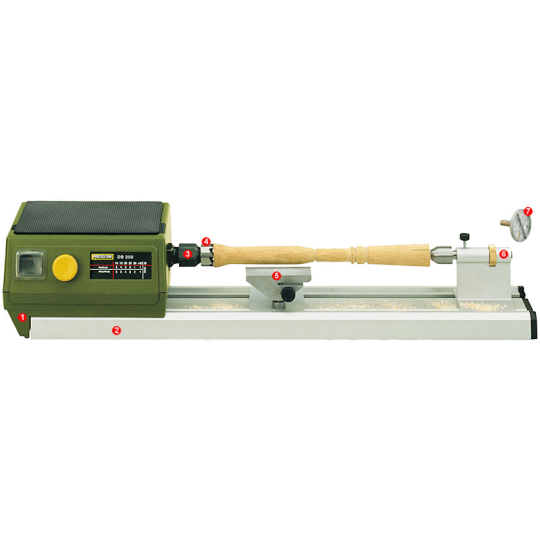

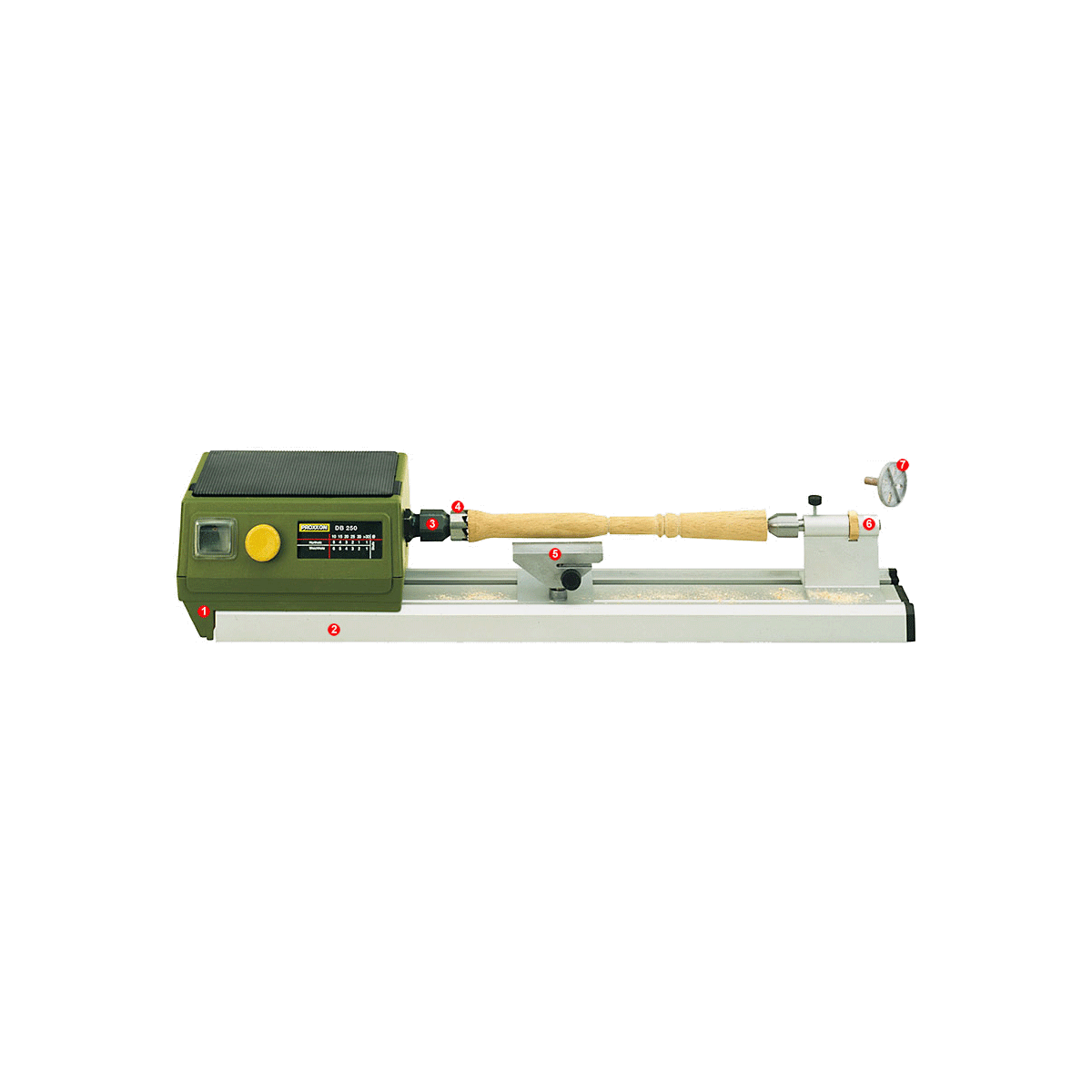

  1. Powerful engine, adjustable speed from 1,000 to 5,000 rpm.
  2. Stable frame with large aluminum profiles.
  3. Spindle mounted on bearing with bore (10 mm) allowing the mass production of small parts.
  4. Serrated toc with centered tip and 10 mm rod.
  5. Stable and height-adjustable tool holder and adjustable in all directions.
  6. Doll with rotating counter-tip.

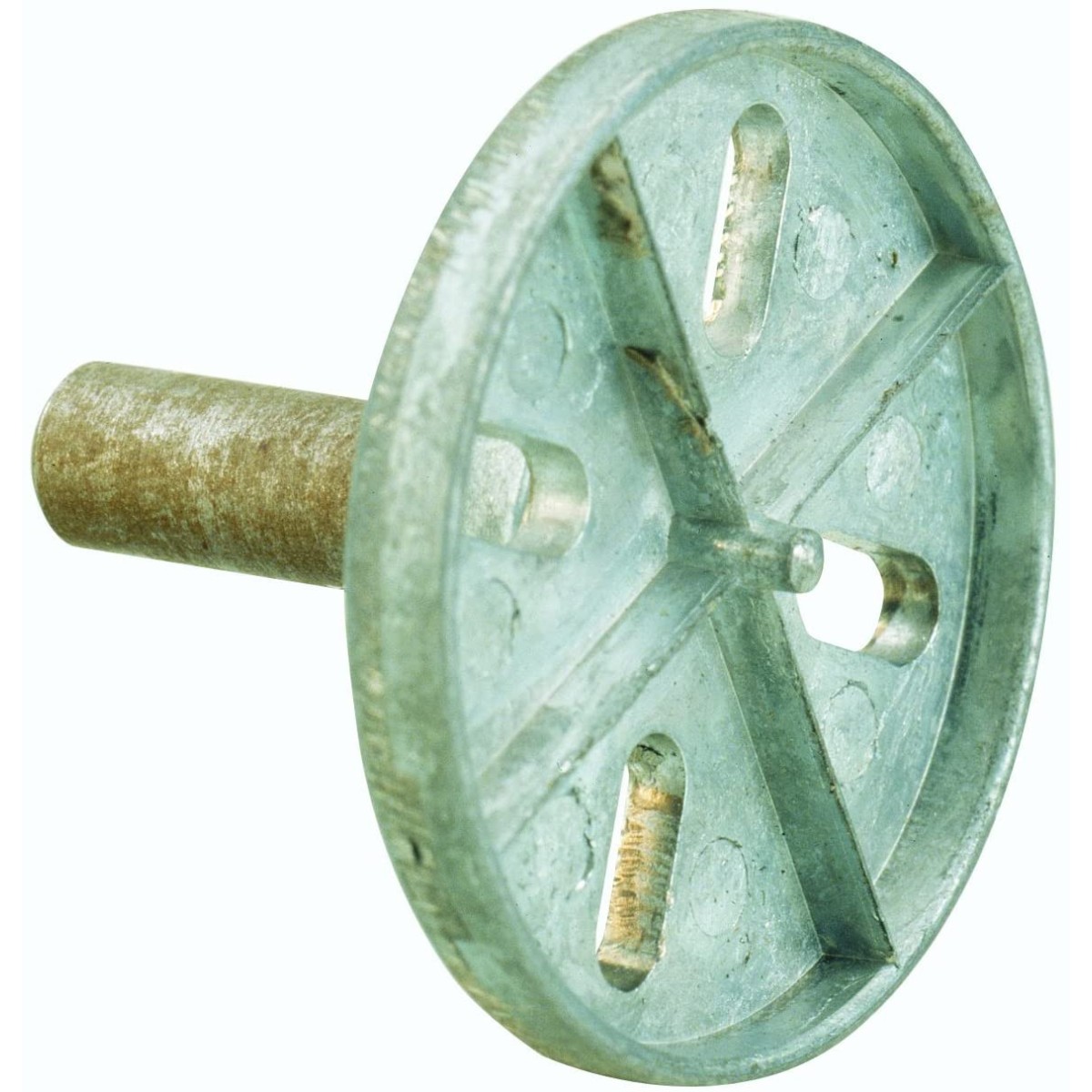

  7. A circular drive tray (for larger parts) is included.

Technical data:

Motor 230 V, 100 W, 50/60 Hz.
Inter-tips 250 mm.
Height of the tips 40 mm.
Height of the supports tips 25 mm.
Continuous adjustment of the speed from 1,000 to 5,000 rpm.
Main shaft 10 mm. Travel of the mobile doll 20 mm.

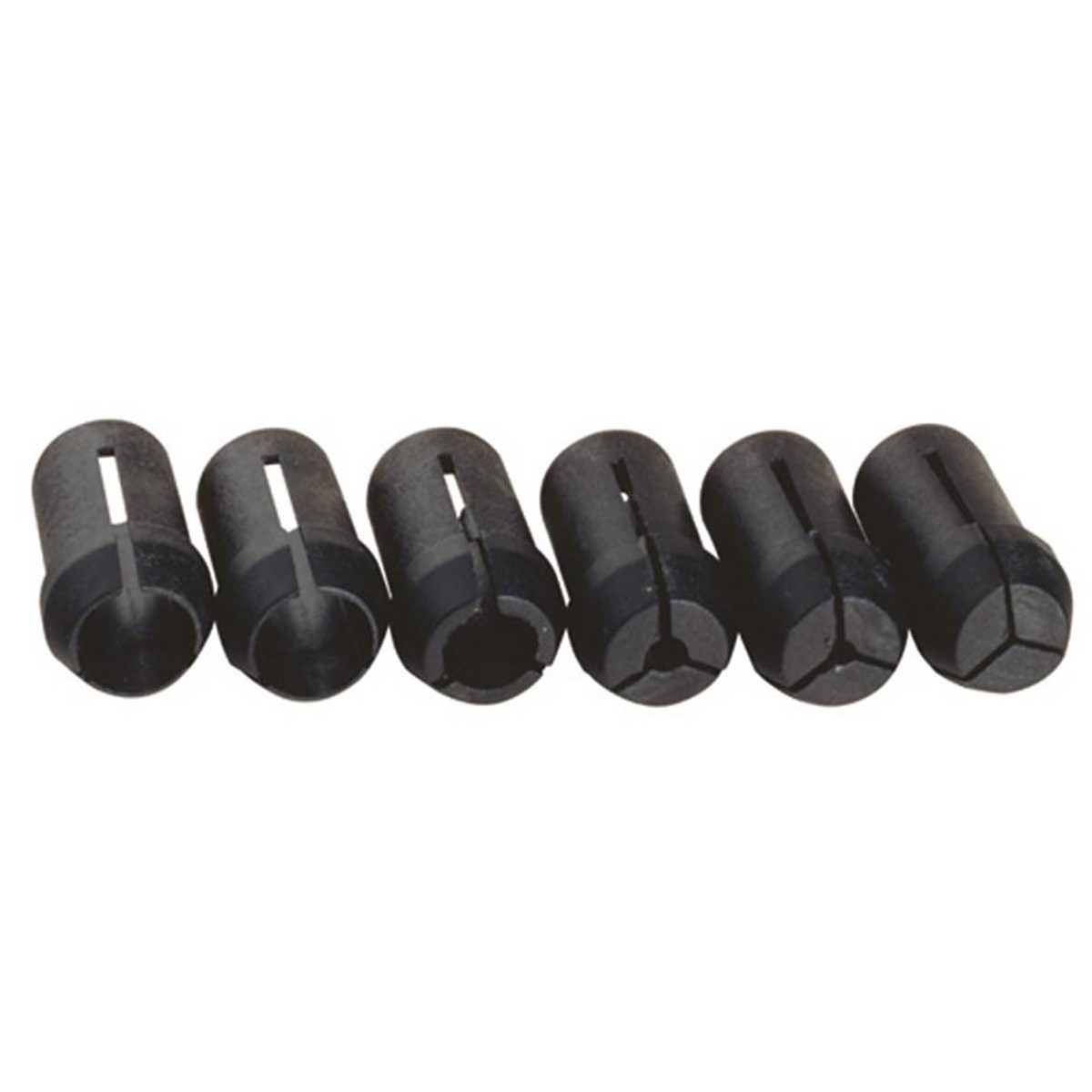

Comes with 6 clamps (2 - 3 - 4 - 6 - 8 and 10 mm), drive toc, sliding jumper and circular drive tray.

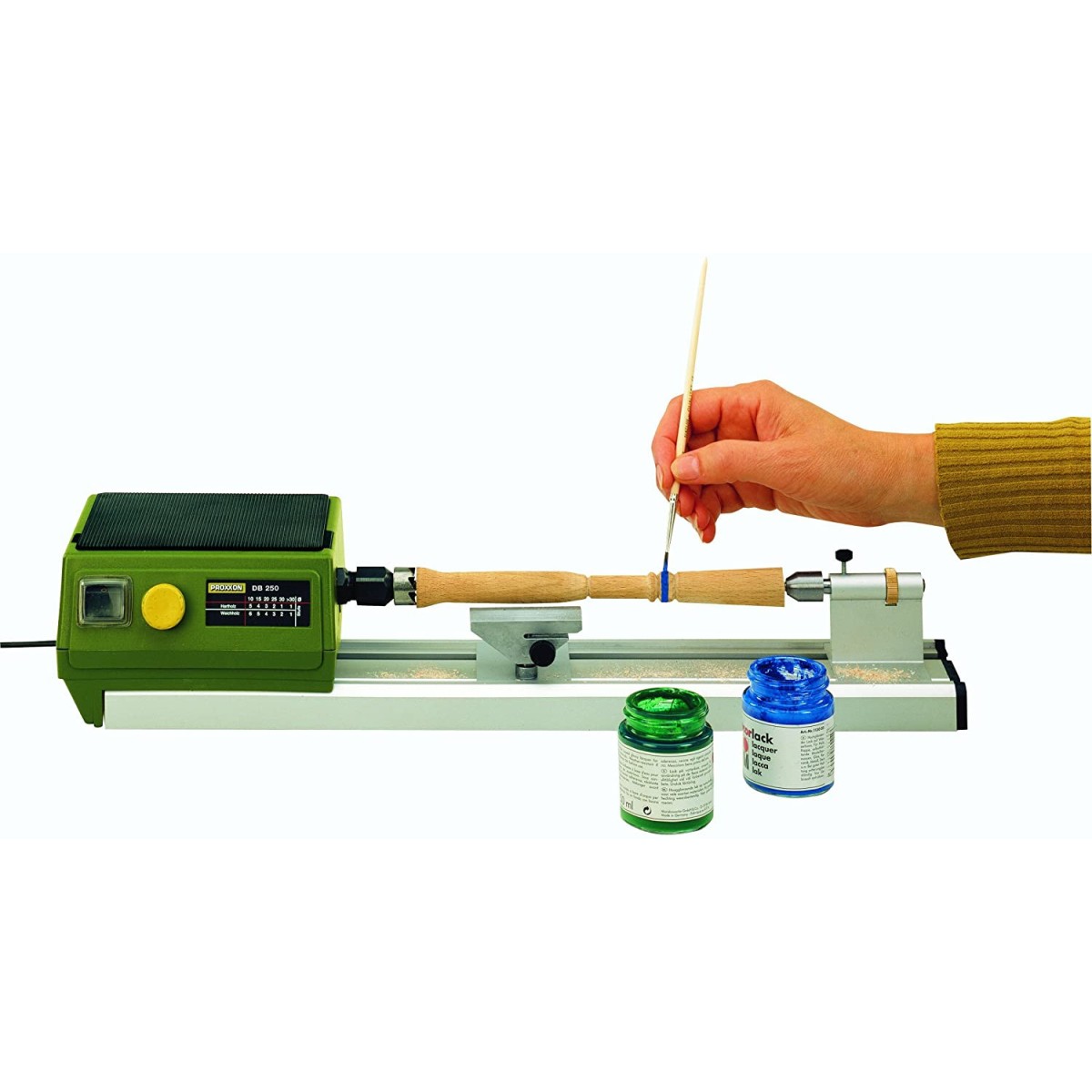

The electronic adjustment of the rev even allows at low revs a "semi-automatic painting".






6 clamps are included.




Recommended accessories:


Set of 5 filming tools
Superior quality and most common shapes: scraper, 3 mm and 6.4 mm tubes, sharp chisel and slice. Clean packaging in a wooden case.

NO. 27,023



Spindle chuck for the counter-doll of the DB 250
Clamping up to 5 mm. To be fixed instead of the rotating counter-tip. Advance by moving the doll.

NO. 27,028




4-bit chuck for DB 250
Individually adjustable bits. For the tightening of asymmetrical wooden parts. Clamping capacity with reversible bits: inner from 1.5 to 35 mm, exterior from 14 to 67 mm. Inner thread M 16 x 1 for attachment to the main shaft of the DB 250.

NO. 27,024





3-bit chuck for DB 250
Concentric clamping. Steel under pressure. Clamping capacity with reversible bits: inner from 1.5 to 20 mm, exterior from 12 to 50 mm. Tapped chuck M 16 x 1 for attachment to the main shaft of the DB 250.

NO. 27,026
