PRX-27100-KT70 - Micro coordinate table for MB 140/S and TBM 220 Proxxon
PRX-27100-KT70 - Micro coordinate table for MB 140/S and TBM 220 Proxxon

KT70 - Micro coordinate table for MB 140/S and TBM 220 Proxxon

€82.00
Tax included

By buying this product you can collect up to 82 point points. Your cart will total 82 points that can be converted into a voucher of €1.64.

PRX-27100
Proxxon

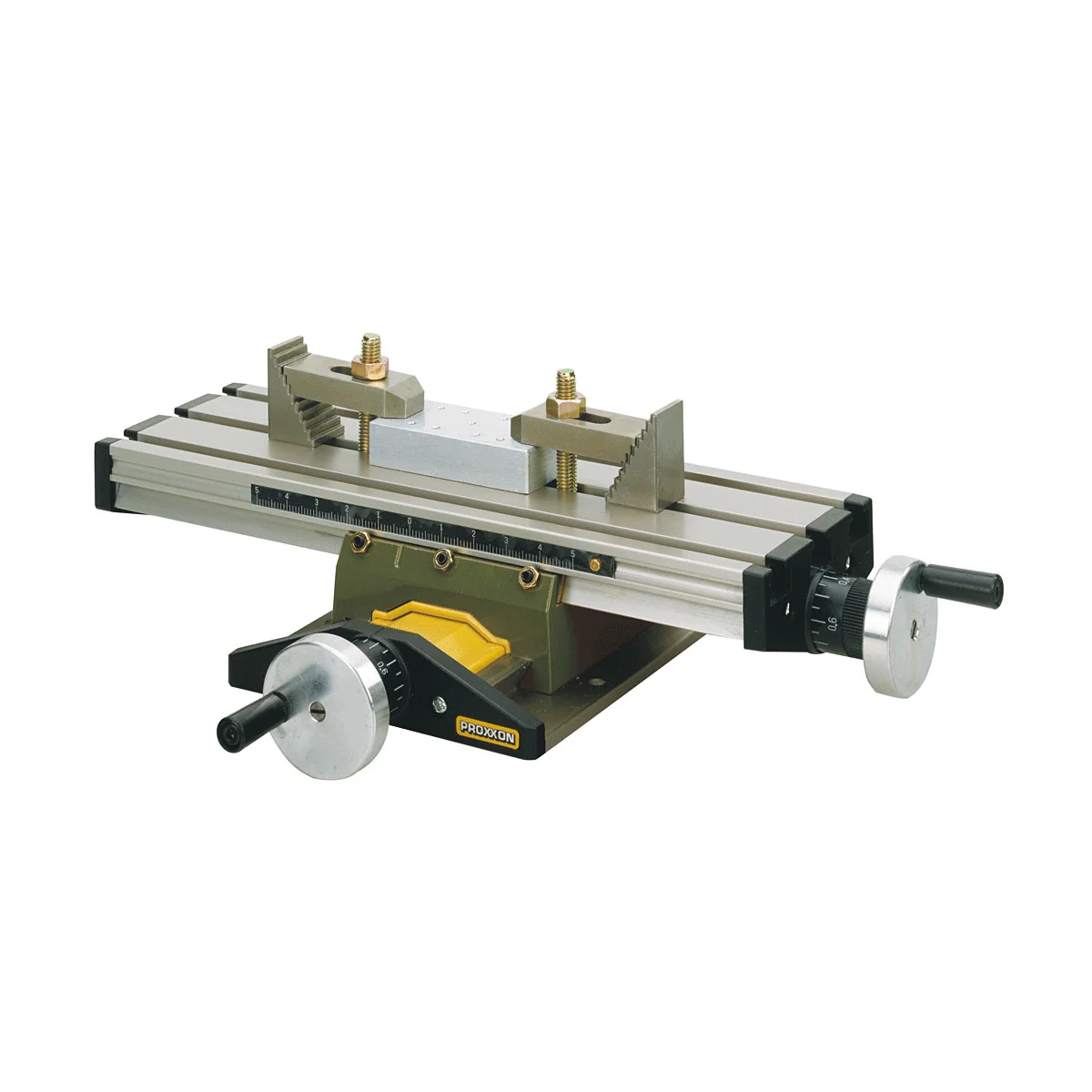

KT70 - Micro coordinate table for MB 140/S and TBM 220 with Proxxon straps and fasteners - 27100

The KT 70 table: small and precise. For MICROMOT supports and the TBM 220 built-in drill.

Out-of-Stock

KT70 - Micro coordinate table for MB 140/S and TBM 220 with Proxxon straps and fasteners - 27100

The KT 70 table: small and precise. For MICROMOT supports and the TBM 220 built-in drill.

  1. Comes with 2 notched clamps.
  2. Table (200 x 70 mm) with three longitudinal T-grooves.
  3. Mollettes with adjustable vernier (1 lap - 1 mm, 1 graduation - 0.05 mm lead).
  4. Sliding rule that makes positioning easier.

MICRO-table with coordinates KT 70

Highly traction-resistant aluminum (densified surface) with adjustable dovetail slides.

3 T-shaped longitudinal grooves (MICROMOT 12 x 6 x 5 mm). Sliding rule that facilitates the cross-positioning of the trolley. Mollettes with repositionable vernier on zero: 1 lap - 1 mm, 1 graduation - 0.05 mm lead. Comes with the straps and fasteners for the MB 140/S, the MB 200 and the TBM 220.

Other technical data:
Table 200 x 70 mm.
Setting X (longitudinal) 134 mm, setting Y (in depth) 46 mm, height 43 mm.

Note:
The KT 70 coordinate MICRO-table is now also available in the KT 70/CNC-ready version ready for CNC (with two step-by-step engines for the X (horizontal) and Y (length) axes.


Steel notched clamps - No. 24256

These straps come with the KT 70 set, but are also available separately. Delivered with 2 notched wedges, 2 bridles, threaded rods with nuts and T groove slides, for the MICROMOT standard. For parts up to 20 mm thick.





Partial module for MICRO-strawberry MF 70 and MICRO-table with coordinates KT 70 -
No. 24264

For the machining of circular parts, the realization of drilling and milling deported on the radial axis, the milling of key surface, square profiles, hexagonal, etc. Precise scale to the degree of the base body. Tightening chuck with reversible jaws: 1.5 to 32 mm interior tightening range, exterior of 12 to 65 mm. Passage of the 11 mm chuck (for the machining of long trees in an upright position). With binding holes for horizontal and vertical mounting, as well as adapted slides and fastening screws for mounting on the MICRO-strawberry MF 70 and the KT 70 co-ordinated MICRO-table. Size 72 x 64 x 38 mm. In a wooden box with a sliding lid.
