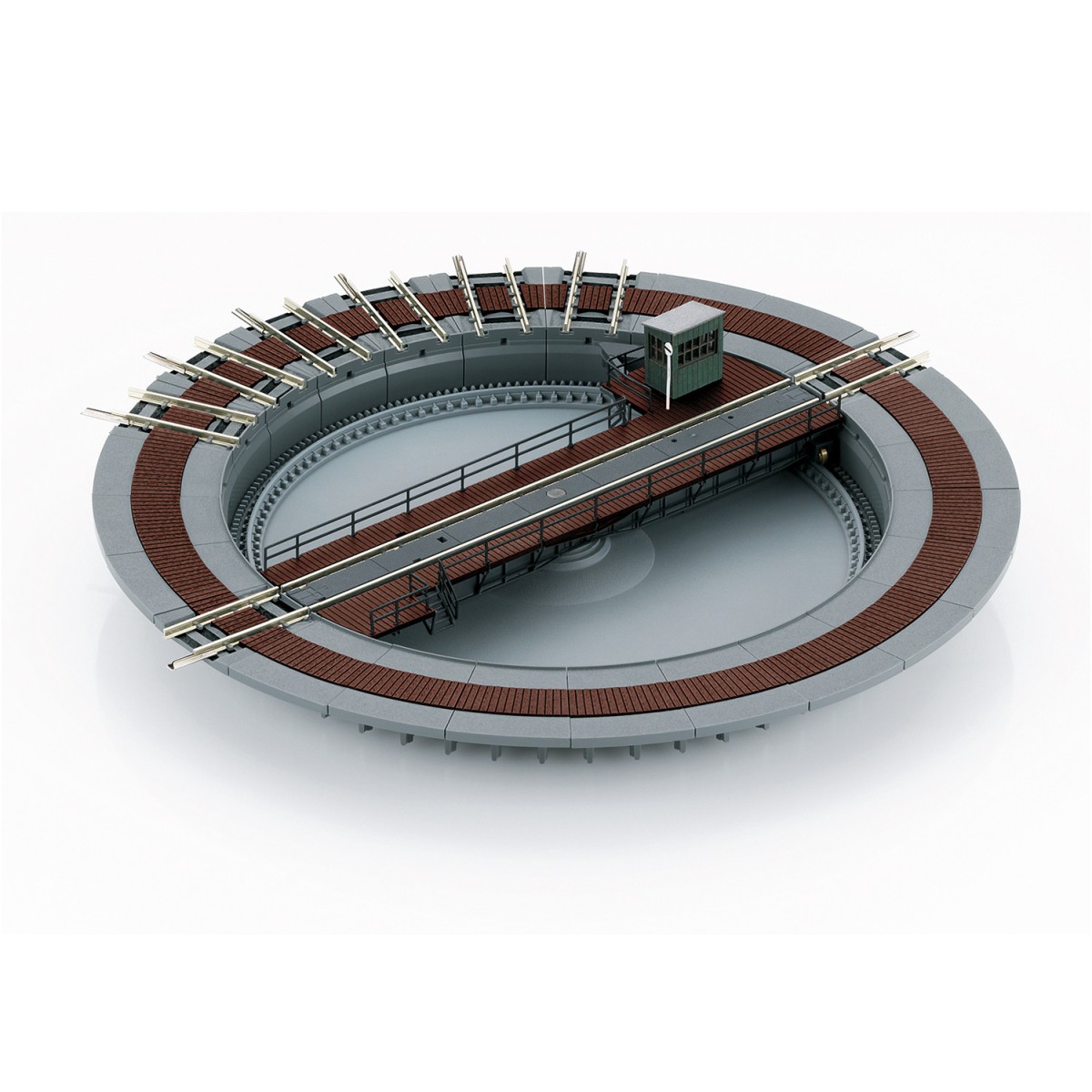

Trix 66570 Motorized turntable with 8 outlets, for N gauge track

Features :

Brand: Trix
Ref: 66570
Scale: N - 1/160
Operation: 2 rails

Actual model: Unified type turntable with a 21-meter-long platform. Still preserved today, for example, in Tuttlingen.

Scale model:
The model is designed to be integrated into the network's platform.
8 branches included on the periphery.
Up to 24 possible branches with plug-in peripheral segments available under ref. 66571.
Numerous authentic details and colours.
Remote control of the turntable with the corresponding device supplied.
Powered by a powerful electric motor.
Automatic power-off of all tracks not in contact with the turntable.

Outer diameter of the plate 170 mm.
Cutout diameter for installation in the network tray 145 mm.
Mounting depth for direct cable connection approx. 30 mm, or 50 mm if using connectors.
Turntable length 132 mm; steam locomotives with a wheelbase of 130 mm, including wheel flange (and not "length over buffers"!) can therefore use it (e.g. a Class 44).

Suitable for locomotive shed ref. 66340.
