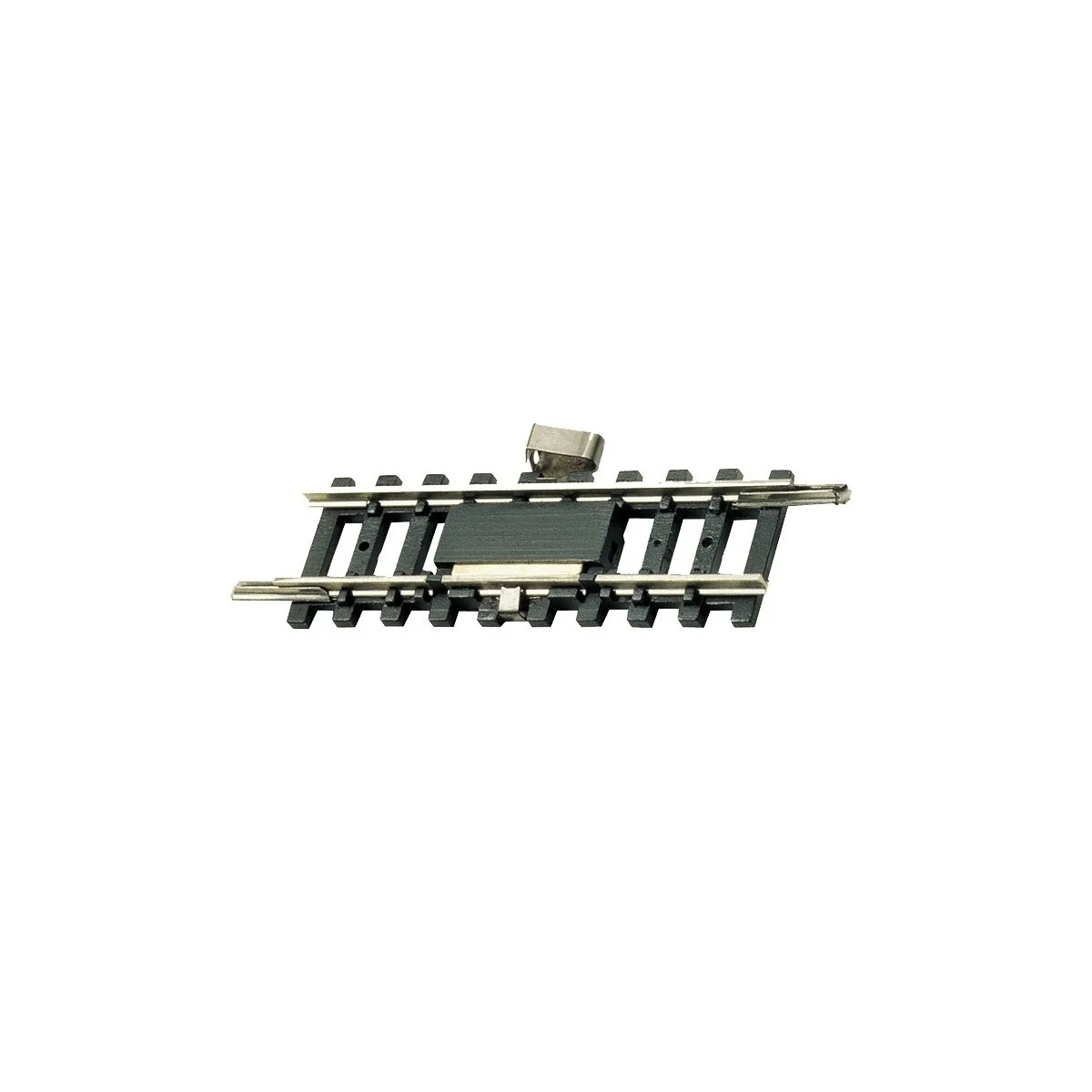

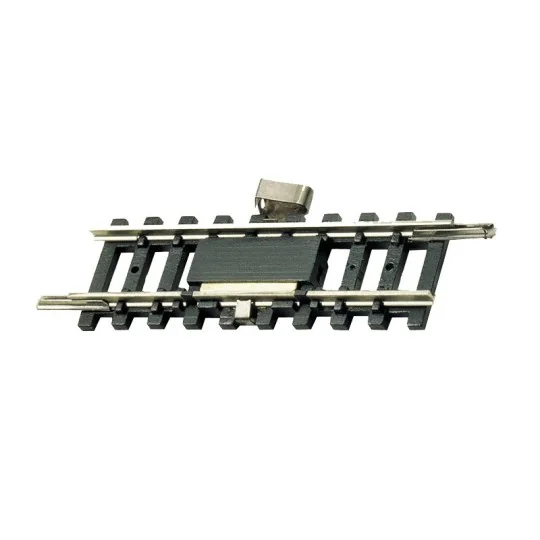

MiniTrix 14979 Contact rail 50mm

Name: MiniTrix 14979 Contact rail 50mm
Brand: Trix
SKU: Trix_14979
Price: 8.1 EUR
Availability: InStock

€8.10

Tax included

By buying this product you can collect up to 8 point points. Your cart will total 8 points that can be converted into a voucher of €0.16.

Reference: Trix_14979

Brand: Trix

Order now and receive it...

between 25 Feb and 2 Mar with Colissimo Points de retrait €7.90

24 Feb with Pré-commande Free!

between 25 Feb and 2 Mar with Colissimo Domicile €8.90

between 25 Feb and 2 Mar with Livraison en relais Pickup €7.90

between 25 Feb and 2 Mar with Livraison à domicile Predict sur créneau horaire €8.90

N - 1/160

Description
Product Details

Characteristic :

Brand: MiniTrix
Ref: 14979
Scale: N - 1/160

For triggering automatic functions by the train, reliable contact thanks to the double contact system.
The switching operation will only be triggered by at least two electrically connected metal wheels and not by insulated wheels or plastic wheels.
Length: 50 mm (corresponds to 14907).

Further explanation:

The electrical connection of the wheels is not axial, but longitudinal; that is, at least two axles are connected, as in a bogie (or a locomotive with multiple wheels). The small section of "contact track" is insulated on the left and right. When a wheel from the main track enters the contact track, it momentarily makes contact (short circuit), that is, it generates a pulse (with the voltage from the main track). You can use this to trigger something. Each incoming metal wheel will trigger a pulse (actually two pulses: one at the entry, one at the exit of the contact track).

Brand Trix

Reference Trix_14979
