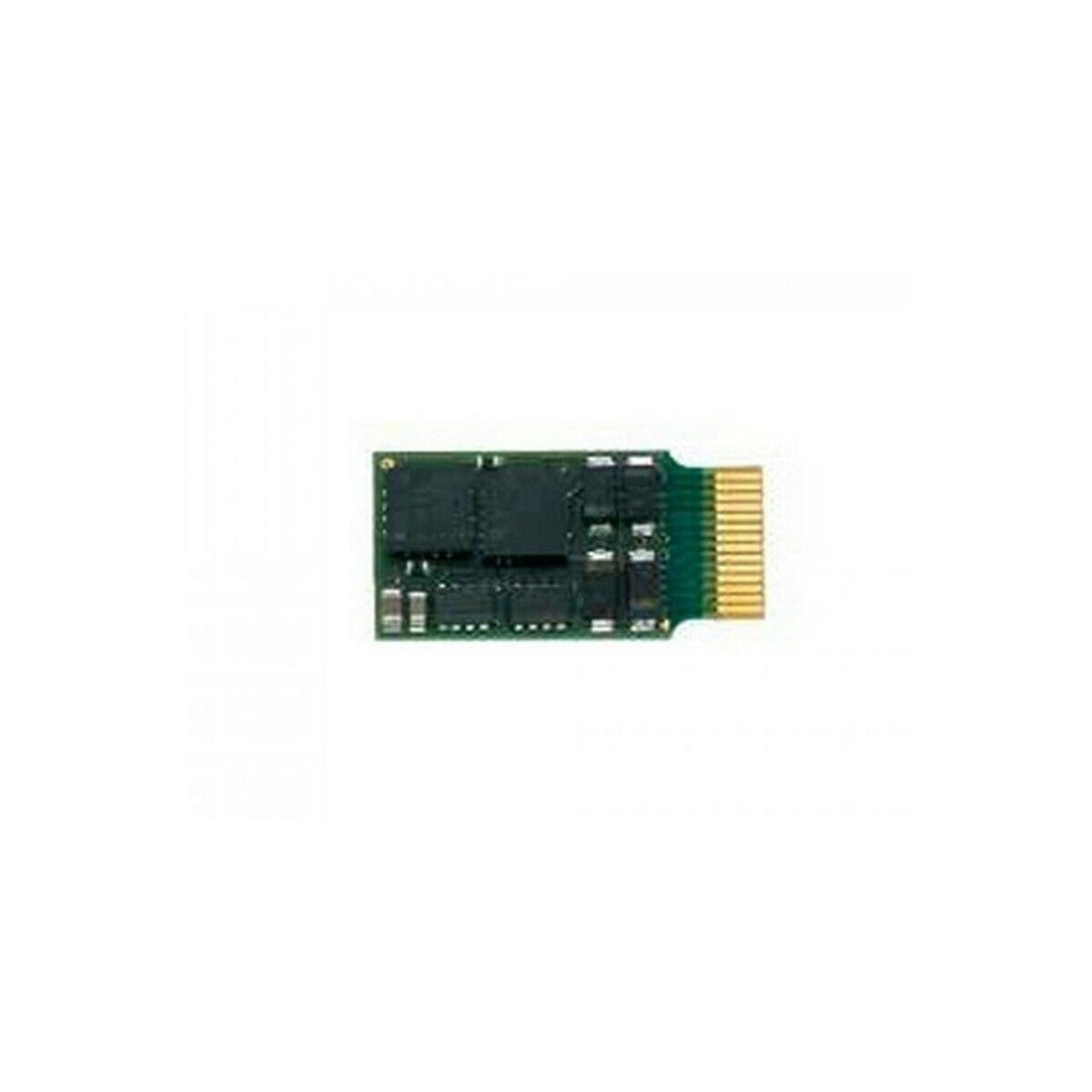

Trix 66857 MTC14 decoder, 1000mA for locomotive

Brand: Trix
Reference: 66857
Scale: N
> Socket: MTC14
Motor current: 1 A
Dimensions: 14 x 9 x 2mm

Receiver for all DC locomotives with a maximum total current draw of 1000 mA (1000 mA motor, 200 mA per lighting unit). Suitable for digital locomotives equipped with an mtc 14 digital interface. Universally usable in Selectrix 1, Selectrix 2, and DCC formats. Automatic analog recognition. Automatic load compensation. Connection for lighting function. Connection for additional functions (Aux1 and Aux2). Short-circuit protection for the motor output. Advanced Selectrix 1 programming of additional parameters via address selection "00", e.g., precise pulse width adjustment (standard variant), polarity reversal according to the direction of travel. Selectrix operation: 31 speed steps. 111 addresses. DCC operation: 14/28/126 selectable speed steps. Selectable addresses, short up to 127 and long up to 10239. Brake operation in DCC and SX formats: same polarity/reverse polarity cc , brake diode, asymmetrical track signal, brake generators. Approximate dimensions 14 x 9 x 2 mm.

Additional robust multi-protocol decoder, short-circuit protection between motor and track; safety cut-off in case of overcurrent, overheating and short circuit; new motor control design for smooth operation of all common cc motors; continuation of travel at the same speed after a power interruption of up to 1 s; SUSI-controlled start-up delay (SUSI-WAIT); braking distances of one or two elements;
Special features in analog mode: Very low starting voltage can be defined, Vmax limitation, dynamic regulation of lighting and AUX based on traction voltage, programmable functions, running characteristics specific to analog mode
