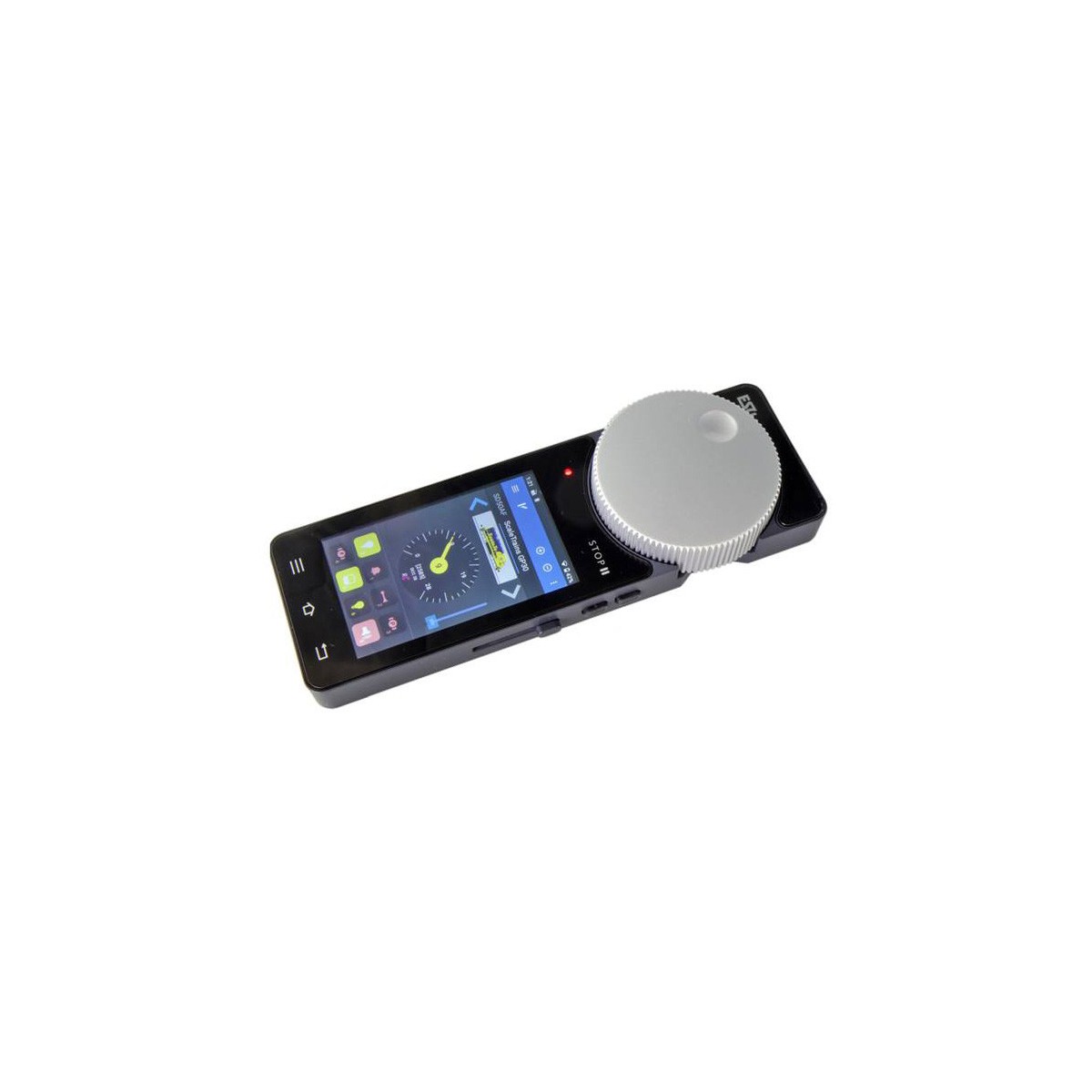

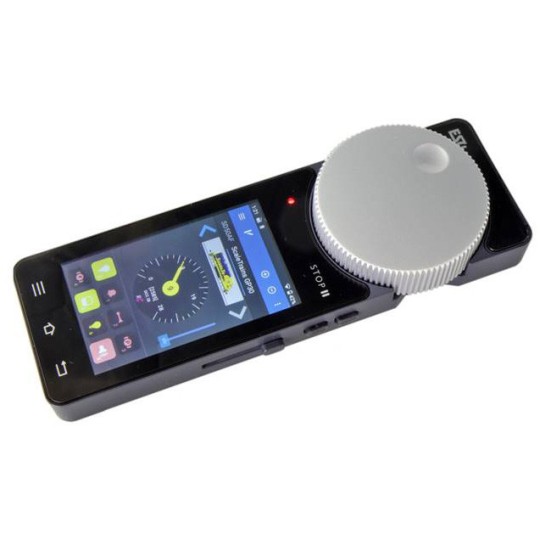

ESU 50113 Mobil Control II

Brand: ESU

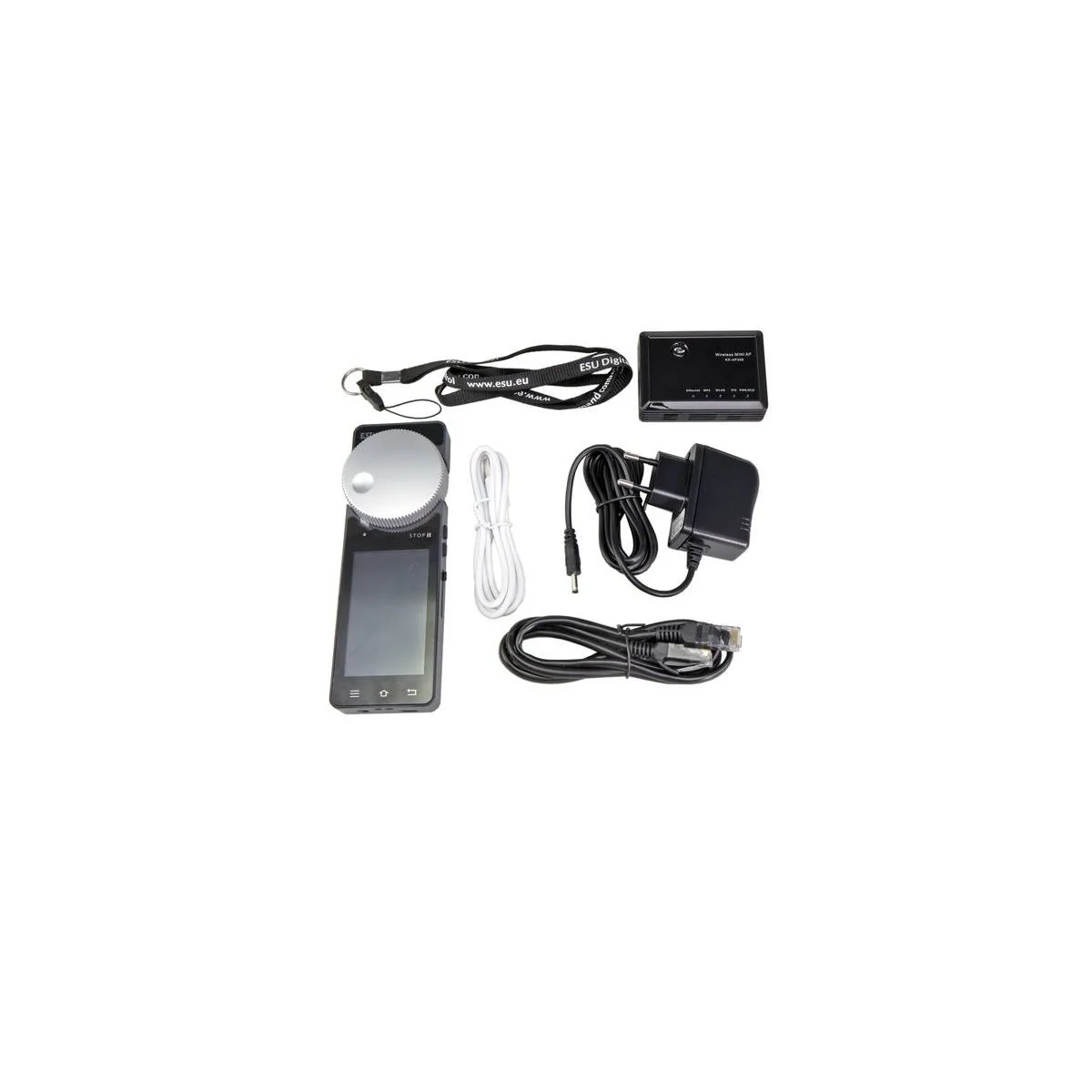

Reference: 50113 Contents: - Mobile Control II - KX-AP300 Wi-Fi access point module - 220V power supply for KX-AP300 - KX-AP300 Ethernet LAN cable - USB charging cable - Instructions in French available at: http://www.tsdbvba.be/handleidingen/50113-FR.pdfLe The brand new Mobile Control II is based on Android. We have created a solid foundation for this open and globally used operating system: The 1.3 GHz ARM® Cortex® A8 microprocessor can access 512 MB of RAM and controls a 3.2-inch high-resolution TFT color screen. There is 2 GB of flash memory for storing applications and data. A capacitive touchscreen ensures contactless data entry. For communication with the "outside world," there is a USB port and a WLAN interface. Thanks to the standardized radio control interface, trouble-free operation of your setup is guaranteed at all times. The range can be extended with WLAN repeaters, if needed. The permanently installed, powerful rechargeable lithium-polymer battery will serve you during even the longest operating sessions. Recharge your Mobile Control II's batteries simply using your mobile phone's USB battery charger or any other USB port. Due to the open platform design, you can add more apps from the Google Play Store at any time. Ergonomics and functionality combined: When you first hold your Mobile Control II, you'll immediately notice its excellent ergonomics: all input elements are easily accessible with one hand, and the most important functions can be reached "without looking": you can always keep an eye on your layout and your trains. This is thanks to the motorized central throttle button with a stop. With this button, you can precisely control the speed of your trains and change direction.Pour To activate functions, simply touch the icons on the screen. The display is also used to change functions – just like you would on your phone. Finally, two buttons on either side are used to change direction or activate the most important functions. The Mobile Control II is perfectly configured for interaction with ECoS control stations: ECoS synchronizes all data with the radio throttle. Therefore, you don't need to enter any data locally. Of course, the correct names and symbols will also be displayed for accessories and routes. The Mobile Control II can control all locomotives registered in ECoS and supports speeds of 14, 28, or 128 speeds. All important locomotive properties, such as name, symbol, function mapping, and function key symbols, will be extracted from the ECoS and displayed correctement.Vous You can switch up to 28 functions for each locomotive, which can be either momentary or continues.Tous . All accessories and routes displayed on the ECoS control panel can be switched. The distinction between double, triple, and quadruple configurations will remain fully intact and will be displayed with the correct symbol on the screen. The Mobile Control II's high-resolution backlit TFT screen (480 x 800 pixels, 280 dpi) keeps you informed of key operating parameters. Additionally, you can see if another player is controlling a particular locomotive or if an emergency stop has been triggered. The Mobile Control II uses the WLAN standard to communicate with the ECoS. Therefore, you must connect the control station to a WLAN network. If you already have a WLAN router (e.g., AVM® Fritz!Box®), you can simply connect the ECoS to it. The ECoS and Mobile Control II will automatically find each other. This is also ideal if you prefer not to connect your model railway to your home network for flexibility at exhibitions: we offer a mini access point for Mobile Control II upon request, which can be easily installed in just a few steps with the ECoS.Lorsque As your layout grows, you can use up to 16 Mobile Control II controllers with your ECoS. This allows, for example, each member of your club to control their assigned locomotives.
