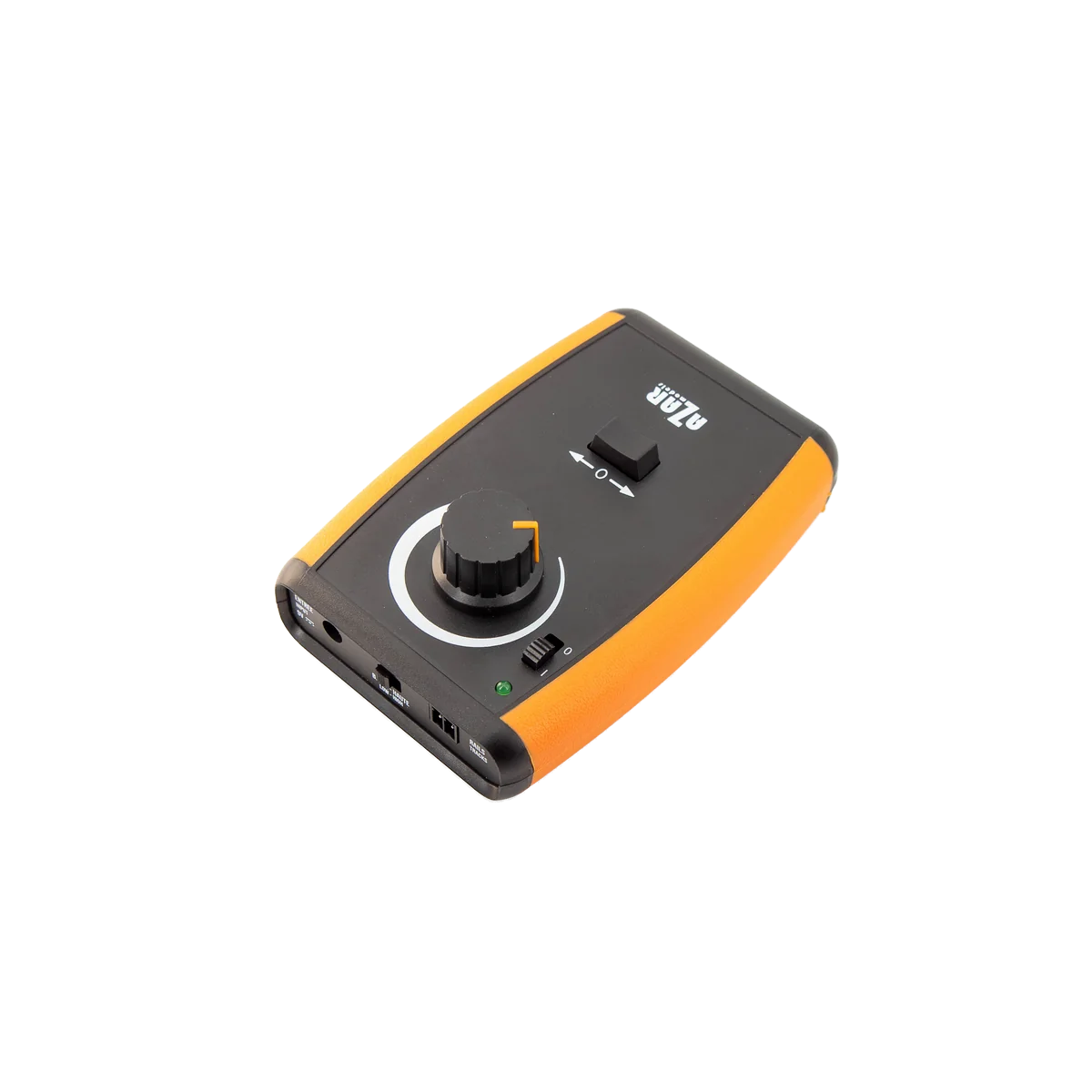

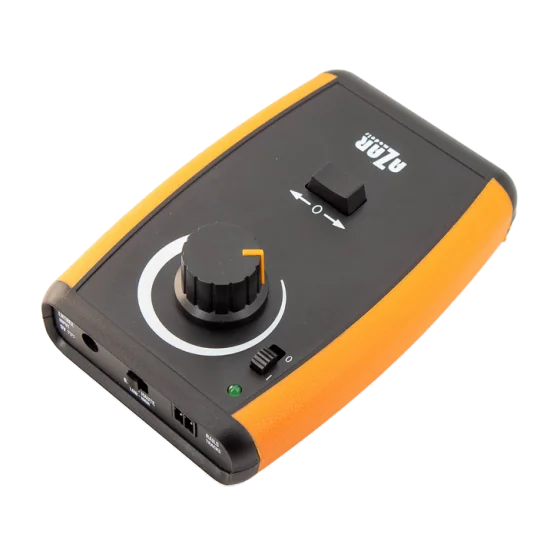

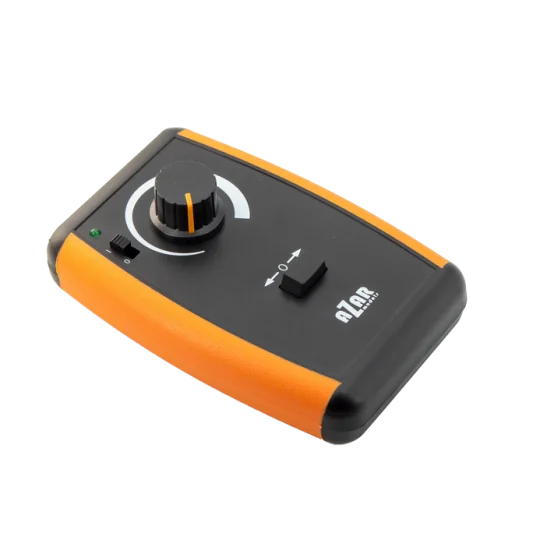

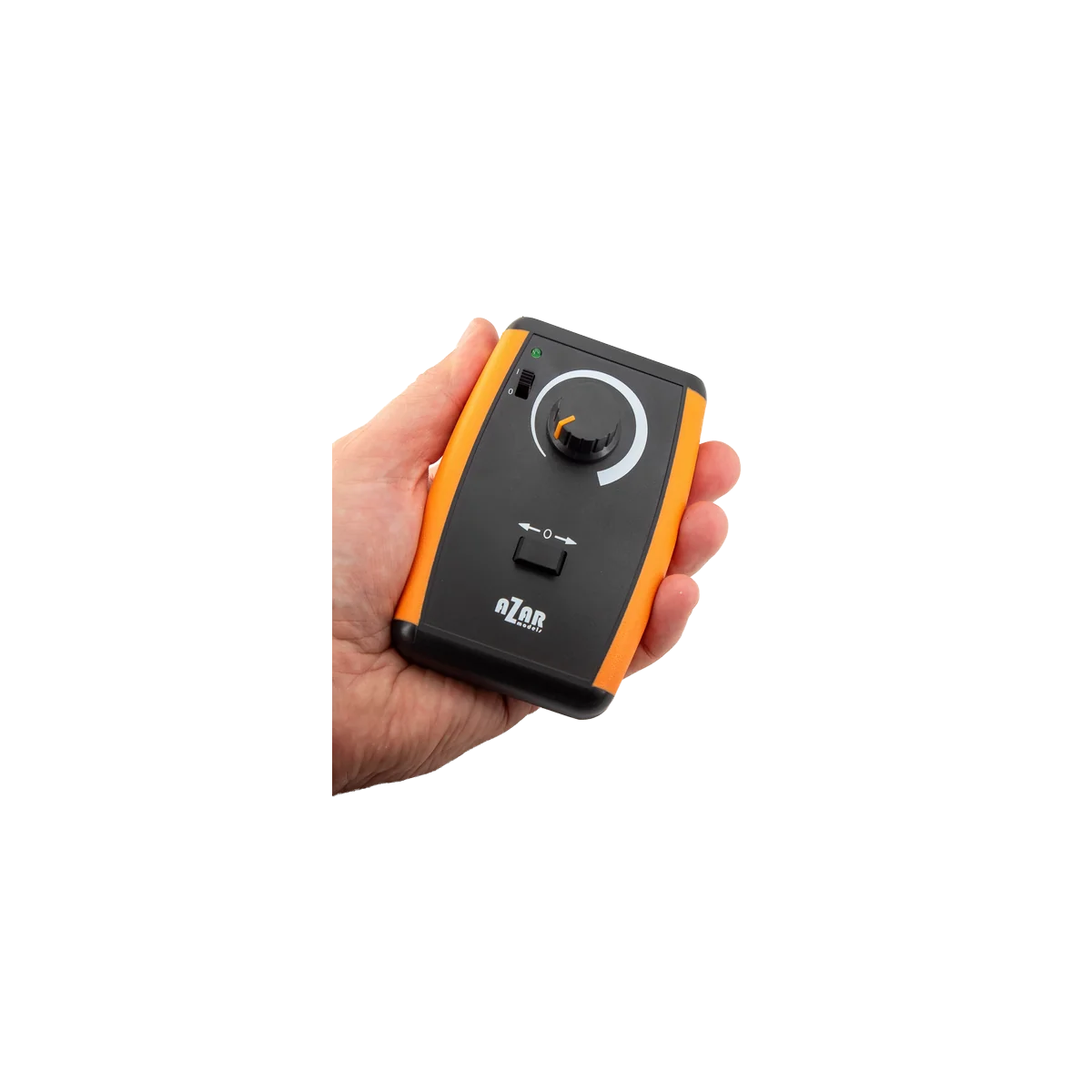

Azar S007 Transformer with pulsed current regulator

With the Zmaster AZAR MODELS speed controller, drive your Z scale trains with precision.

The Zmaster is a high-performance speed controller system designed by AZAR MODELS and intended for driving Z scale analog locomotives. It uses pulsed direct current technology or pulse width modulation.

It allows the speed of the models to be managed with great gradualness and finesse across the entire speed range, especially at idle.

Its unique feature is that it operates under 2 selectable modulation frequencies. The first is suitable for modern AZAR MODELS design locomotives (high frequency), and the other for older generation locomotives with 3 or 5 pole motors (low frequency).

A 220V transformer socket block is included for connection to the domestic power supply.

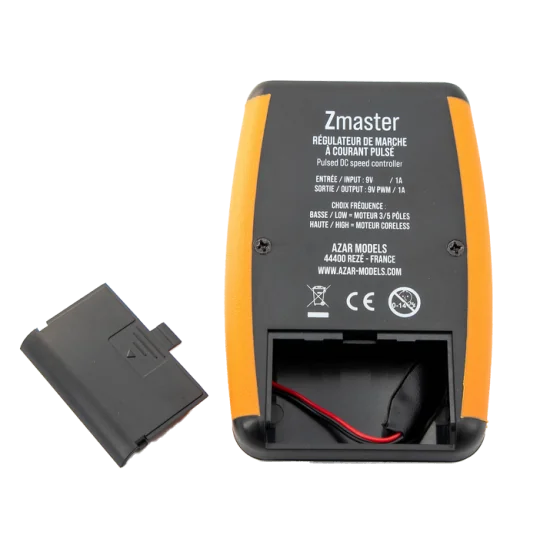

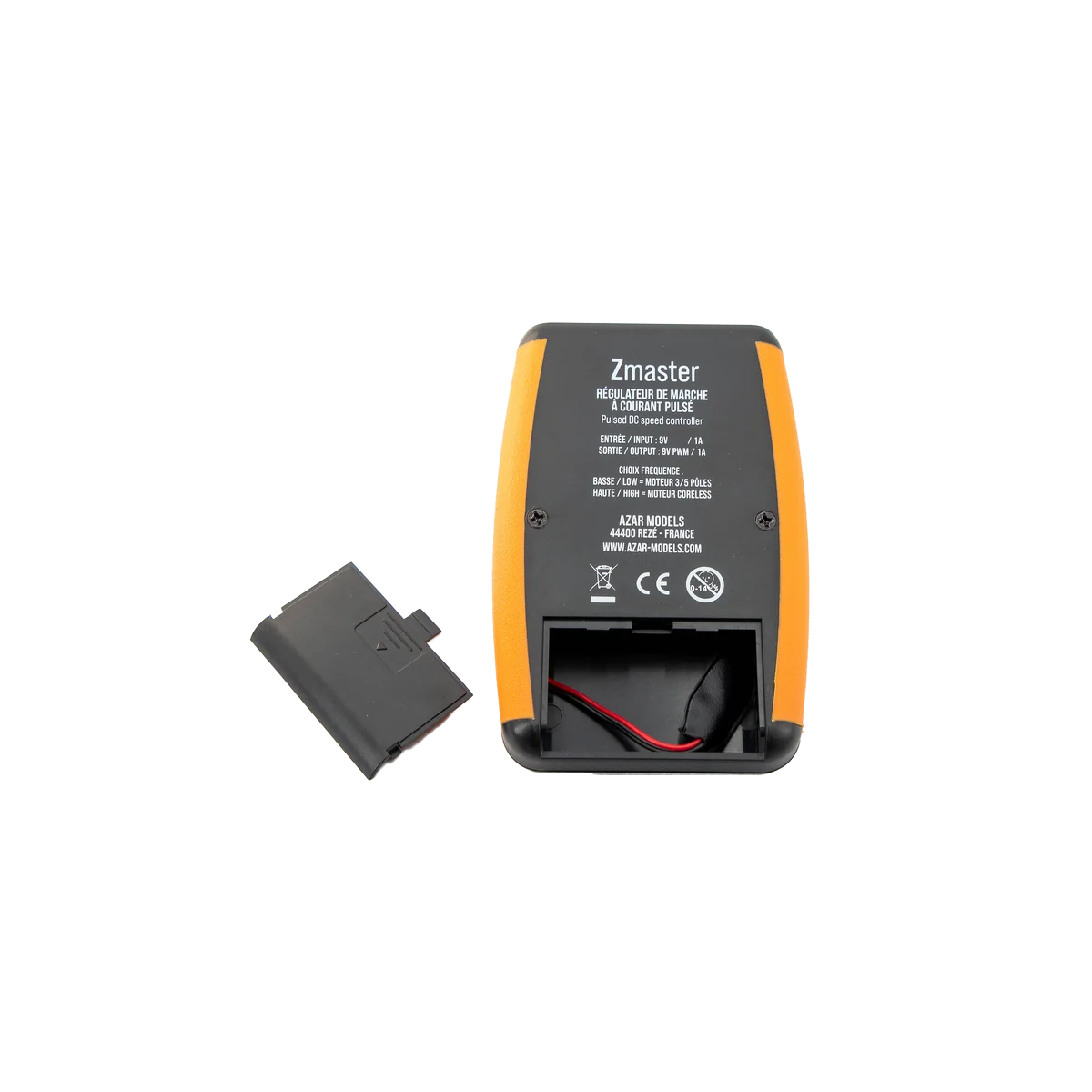

Thanks to an additional battery compartment (9V battery) located on the underside of the regulator, the transformer can also be used on the go without a wall power supply.

Key takeaways:

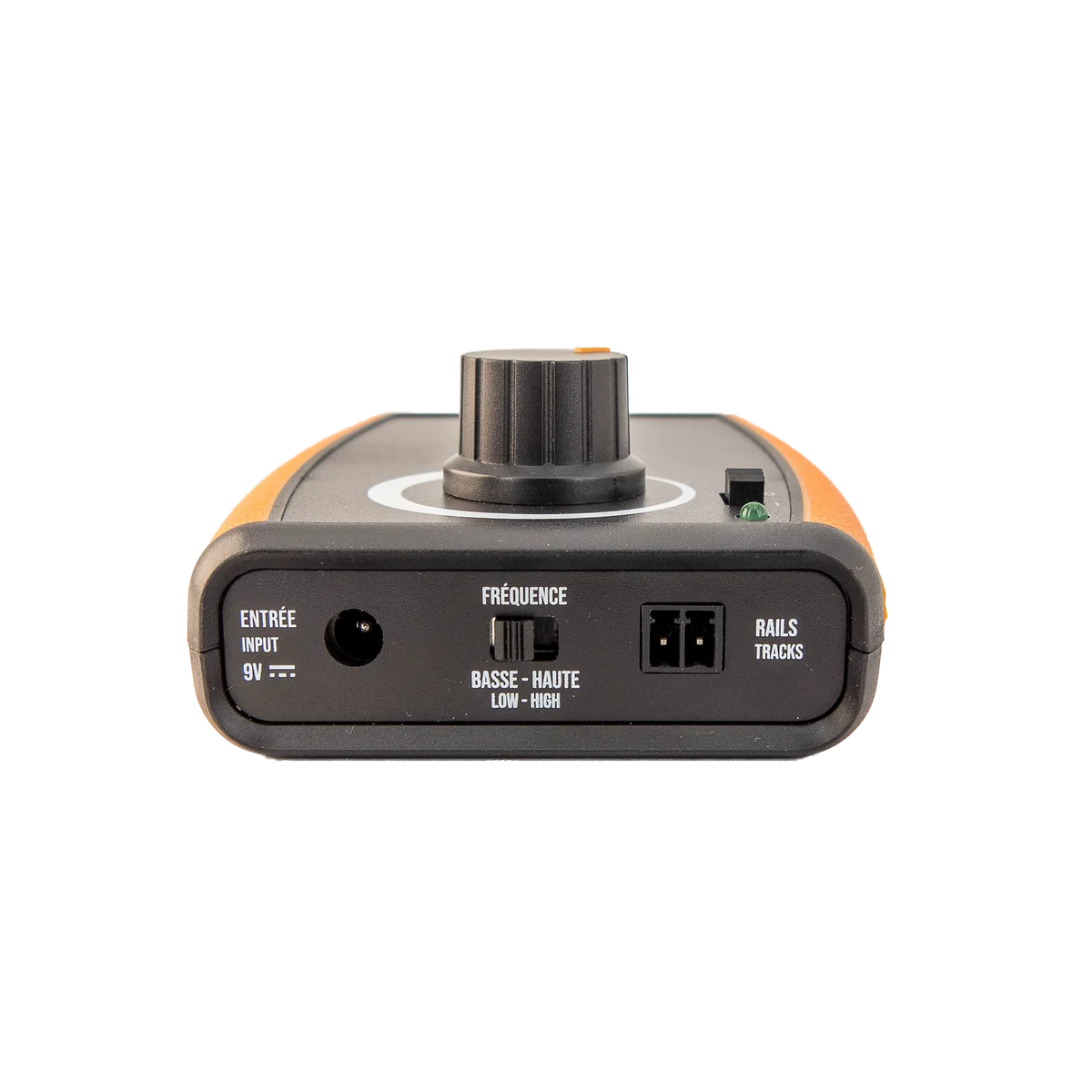

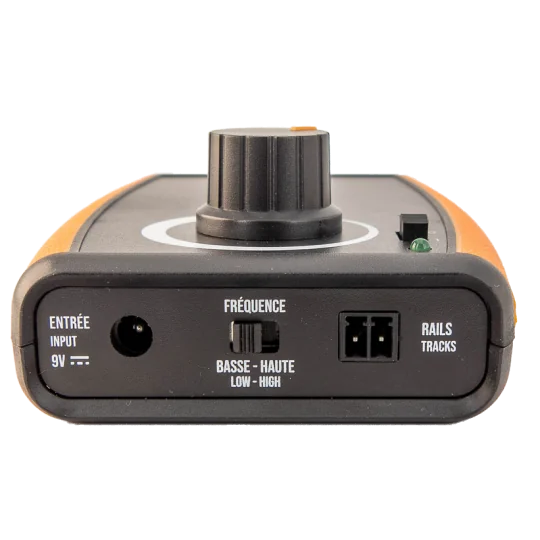

Dual selectable frequencies via switch for all analog Z-axis locomotives, modern or vintage motors
LED lights remain on even when the locomotive is stopped
Output with quick connector and automatic short-circuit protection
Direction switch (forward, reverse, zero position)

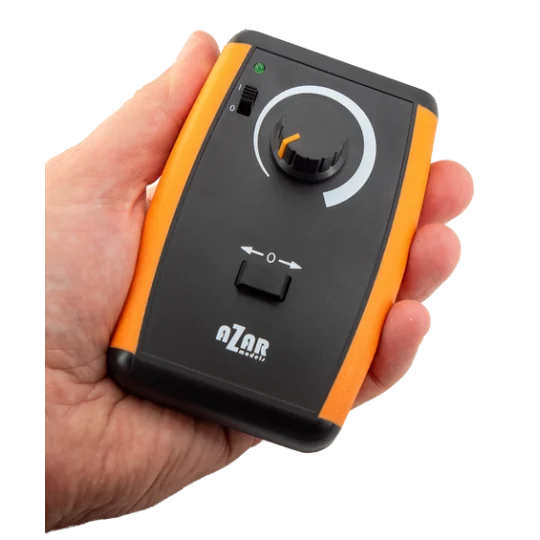

Ergonomic design for holding in your hand or placing on your network
Operates on AC adapter (included) or 9V battery (not included)

Technical specifications:

Suitable for Z scale, Max. DC output 9V, 1000mA
Sensitive potentiometer with a rotary knob for precision
Short-circuit protection on the rails with automatic reset
Battery compartment (9V) for mobile use
Dimensions: 80 x 117 x 39 mm

Content :

Zmaster regulator
Quick connector for rail output
220V wall power supply with EU plug
User manual
Warning: Not suitable for digital locomotives, even in analog mode, under penalty of destroying the digital decoder.
